CS1090 ESD Universal Snap Kit, 10mm

  • Universal snap kit easily installs a 10mm ground snap into a range of ESD mat thicknesses
  • User installable with a Phillips screwdriver
  • Installs a 10 mm snap or stud to ESD workstation materials which mates with common ground cords including our CP2522 and FM1515.
  • Includes 2 screws for thick and thin materials: 6-32 Flat Head Phillips machine screws; one 0.25" long and one 0.375" long.
  • 1 each: 10 mm socket, 10 mm stud, washer and screw base
  • Sold in Packs of 10
SKU: CS1090-PK10
Price: $20.41

118 in stock (can be backordered)

Add to quote
CS1090 ESD Universal Snap Kit, 10mm
CS1090 ESD Universal Snap Kit, 10mm - Image 2
CS1090 ESD Universal Snap Kit, 10mm - Image 3
CS1090 ESD Universal Snap Kit, 10mm - Image 4
CS1090 ESD Universal Snap Kit, 10mm - Image 5
CS1090 Universal Snap Kit

The CS1090 ESD Universal Snap Kit Installs a 10mm Ground Snap into Most ESD Mats with a Screw Driver.  Comes with a Male or Female Socket and Two Lengths of Screws.

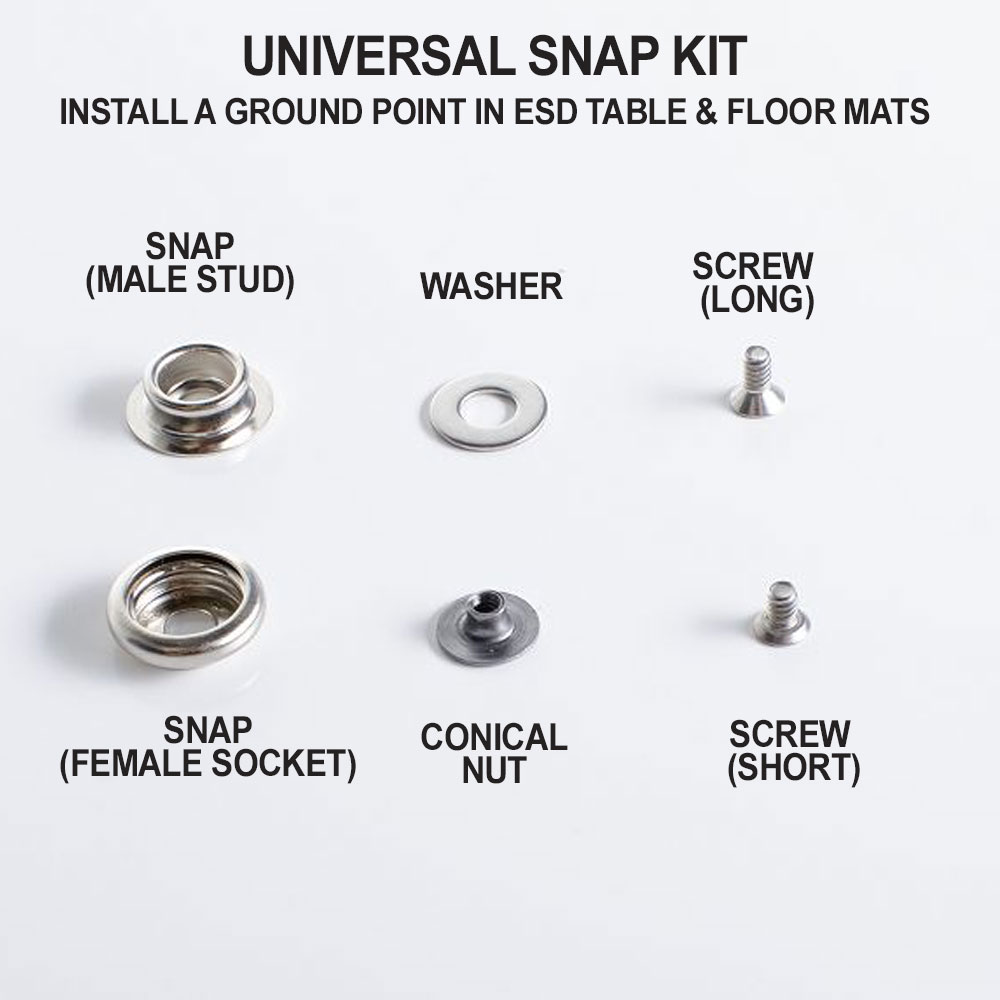

The Transforming Technologies CS1090 ESD Universal Snap Kit includes everything needed to field-install a stud or socket on all soft materials up to 0.375″ thick. The kit includes both a 10 mm stud, 10 mm socket, threaded backing washer, conical nut, long screw, and short screw. Screws are 6-32 Flat Head Phillips machine screws; one 0.25″ long and one 0.375″ long. To install, punch a hole through the mat with the screw driver or knife and screw on the socket or stud, whichever is preferred.   All that is needed is a Phillips screwdriver.

Instructions

  1. Determine the position of the grounding snap (one only per mat) and type of fastener you will be installing (socket or stud).
  2. Punch a hole through the material with a small Phillips screwdriver or awl.
  3. Select one of the screws as follows: Material less than 0.100″ thick – short screw. Material greater than 0.100″ thick – long screw
  4. Insert the screw through the top on the snap stud or socket, the washer, and the material. Affix the assembly with the conical nut supplied with the kit and tighten down the screw using a Phillips screwdriver.
  5. Remaining will be either a 10mm stud or socket, and either a long or short screw to be discarded or saved for another application.
