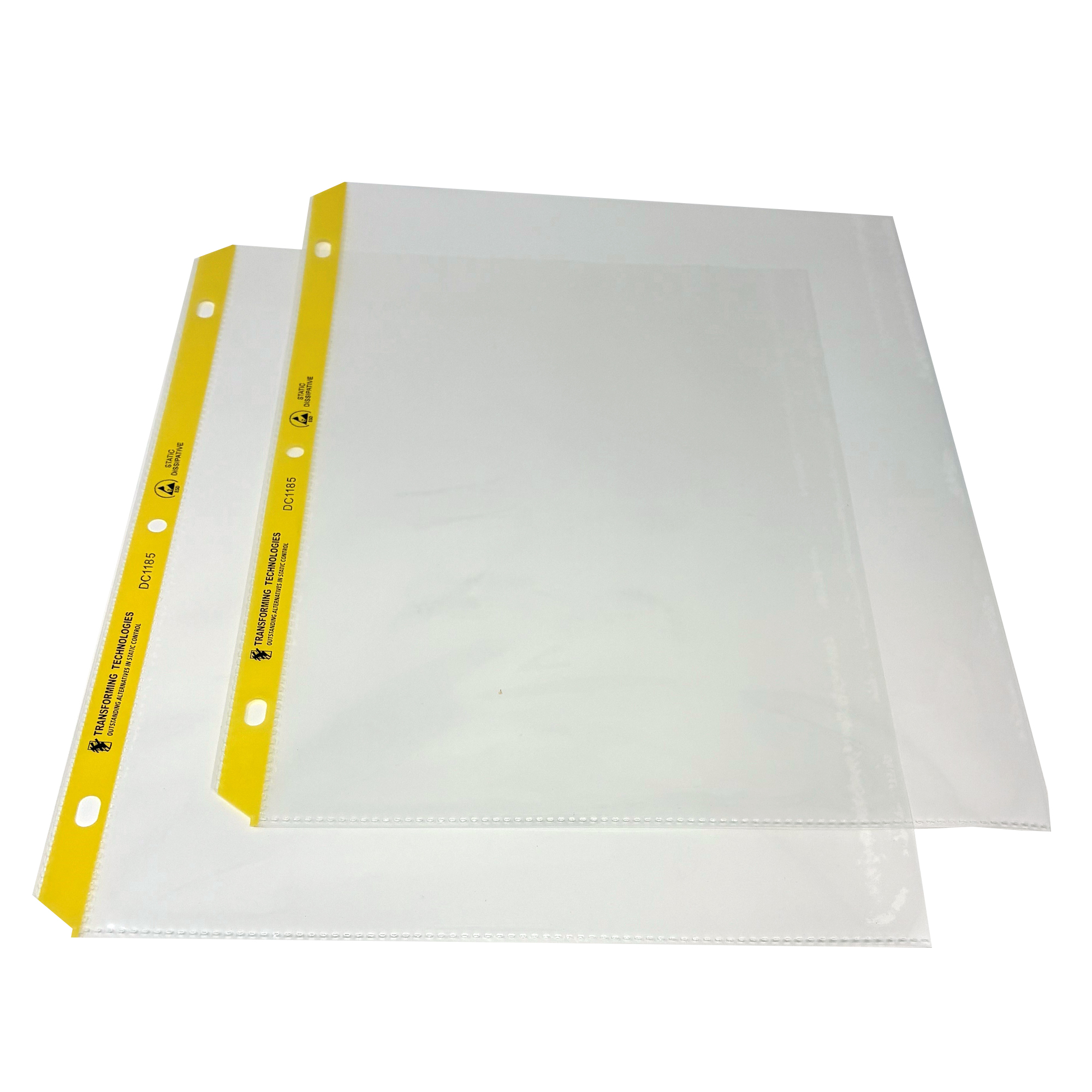

DC1185.IDP - Permanently Dissipative ESD Sheet Protectors - Nine Hole Punch

  • Made with permanently dissipative IDP-STAT® PVC film
  • Lightly embossed to reduce glare
  • Resistant to print transfer
  • Yellow stripe with ESD identification
  • Typical Surface Resistivity: 10^9 - 10^10
  • 9-Hole Punch.ectors - Nine Hole Punch
Request Quote
Part Number: DC1185IDP
Categories: IDPSTAT Products,
Data Sheet

ESD Sheet Protectors are designed for use in ESD controlled areas where Electronic sensitive material is produced.

The static safe 9 hole punched ESD Sheet Protectors fit into binders and hold 8.5″ x 11″ sheets.   Our ESD Sheet Protectors are made from a permanently dissipative PVC polymer that is molded into a 2 mil, stable, amine-free, polypropylene clear film. The material is specially treated to reduce 90% of charge generation in less than 1 sec per NFPA-56A and MIL B 81705B.

Meets or exceeds requirements of ANSI ESD-S20.20, ANSI/ESD STM11.11 Surface Resistance and ANSI/ESD STM11.12 volume resistance

Main features:

  • Lightly embossed to reduce glare.
  • Resistant to print transfer.
  • Yellow stripe with ESD identification.
  • Surface Resistivity: 10^9 – 10^11 @ 15% RH. Std.
  • 9-Hole Punch.

Applications: Protect your ESD workstation from harmful static discharges from paperwork such as work instructions and signs. Excellent for use in ESD binders or as shop travelers
