Create A Turnkey Modular System To Fit Your Needs
The PGT120 and PGT130 ESD grounding testers take quick and accurate resistance measurements of ESD wrist straps, ESD footwear, heel grounders and smocks. All of the test data is stored on a computer. Data logging ESD test information in a computer database eliminates a paper log, where the operators must hand write ESD test information and you must rely on the honor system for compliance. The unit operates with 3 independent measuring circuits which allows the wrist straps and heel grounders be to tested individually and simultaneously.
Eliminate Paper Logs
Transfer data to your network. The data terminal stores test data for up to 30 days without an active internet connection – never lose your data!
One-time Upfront Fee
No yearly fees. Pay for the software one time and receive free support and firmware updates if required.
Responsive Customer Support
You’re not in this alone! We include responsive support for any issues you may encounter during installation or testing. Speak one on one with technical support to solve your issues.
Choose Your Personnel Grounding Tester

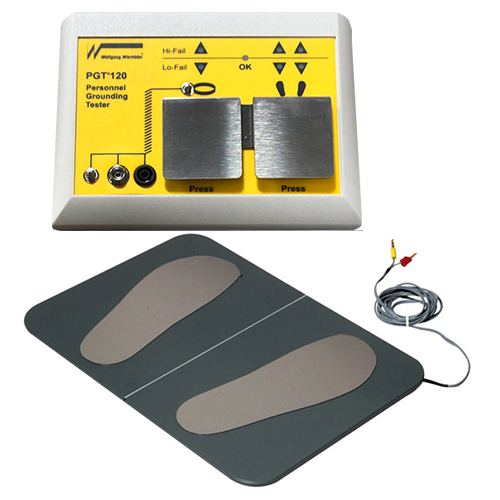

7100.PGT120.US
If data logging is not required in your ESD program and you want a quick and accurate wrist strap and footwear tester, then the 7100.PGT120.US is the best fit for your. The unit indicates results with audible and visual signals.

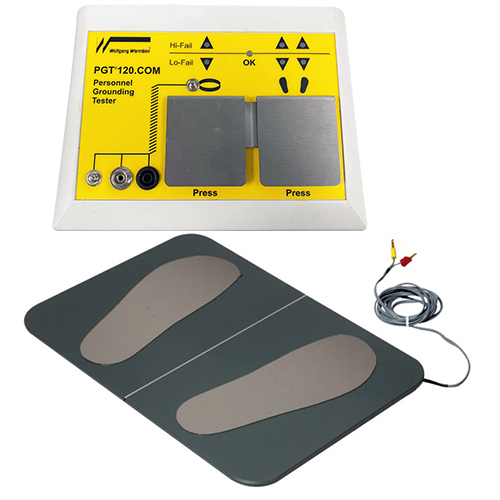

7100.PGT120.COM.US
The PGT120.COM includes an additional RS232 interface to process measurement data and test results in a data base. A computer or a terminal can be connected to the serial RS232 interface. This allows your to pair the tester with a data terminal to receive real-time ESD testing with data with personnel identification stored in your database.

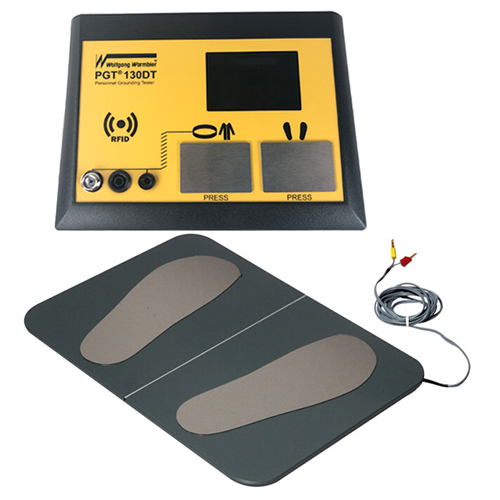

7100.PGT130.DT
The PGT130 takes quick and accurate measurements of the ESD grounding products with the ability to store test data in a SQL database on your network. The unit includes a built in RFID card reader as well as a 2.2" x 1.5" LCD screen to display date, time, temperature, user ID and test results.
Choose Your Device For Recording And Processing Test Data

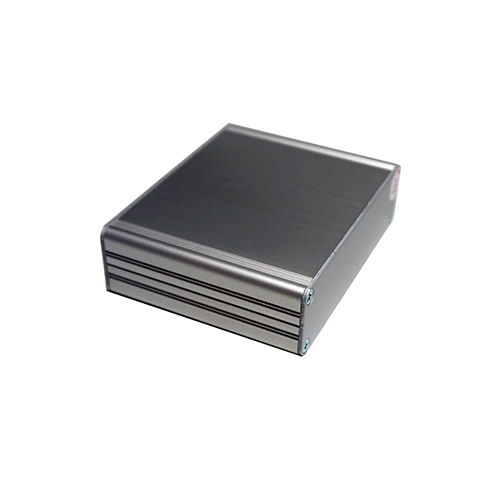

Data Terminal2 – Standard Model
The PGT120 Data Terminal 2 is the base system that is ready to integrate into existing HID infra-structure. Systems can be connected via USB and an open database interface is used.
Model number: 7100.PGT120.COM.DT

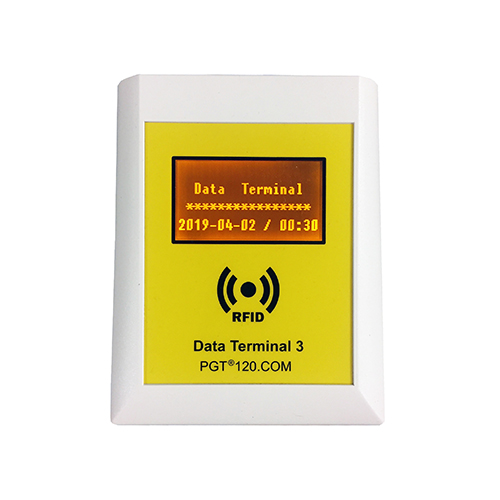

Data Terminal3 – RFID Model
The PGT120 Data Terminal 3+ is equipped with a built-in RFID Reader for employee identification. Also includes a display, a relay to open doors/barriers, 4 USB ports.
Model number: 7100.PGT120.COM.DT3

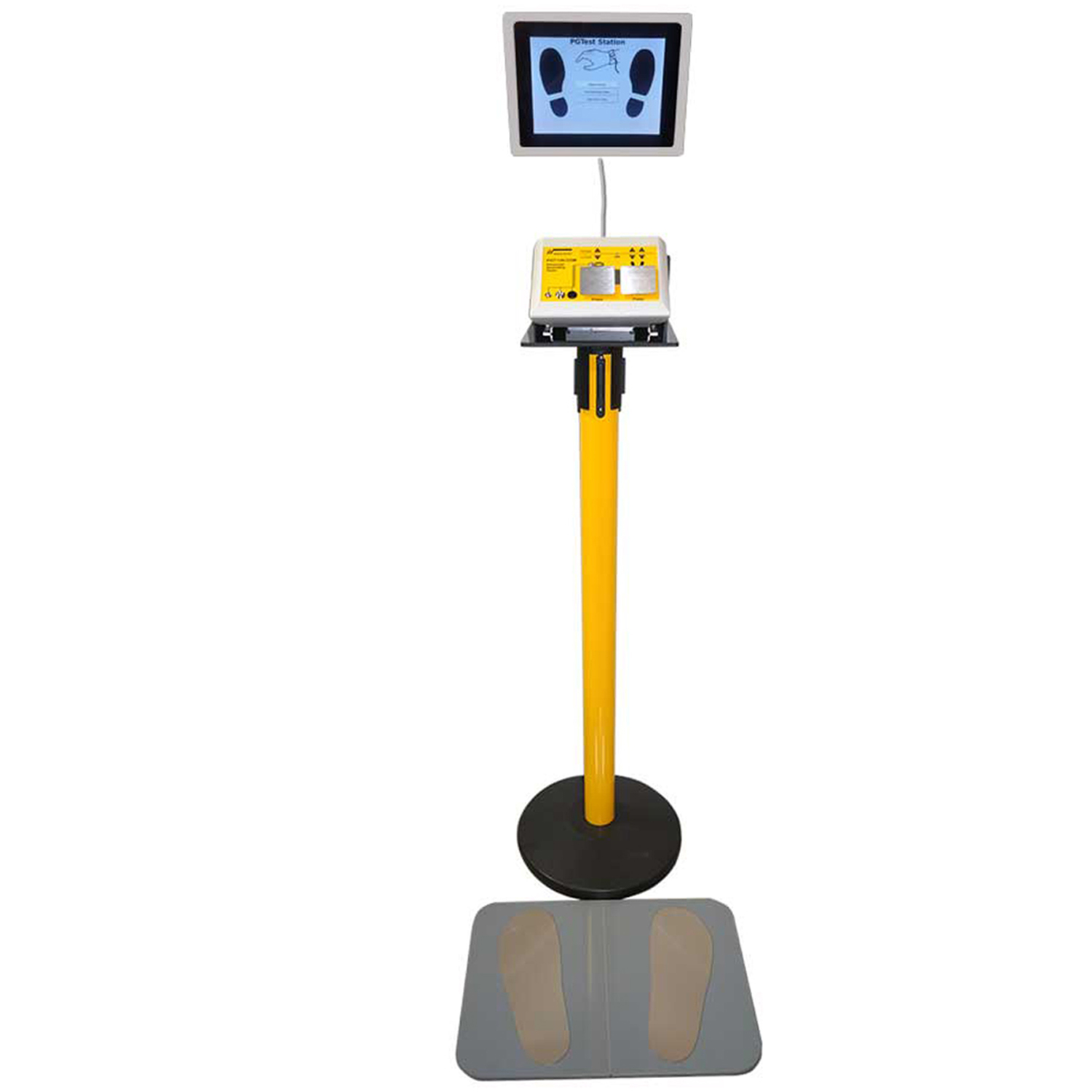

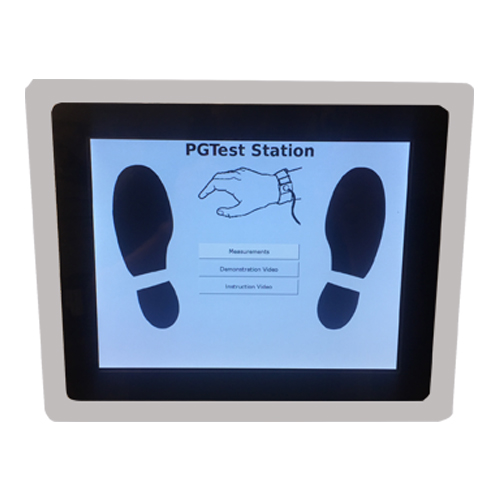

Data Terminal TC18 – Touch Screen Computer
The PGT120 Data Terminal TC18 is a 10” touch screen MiniPC that can display test results as well as store data. Includes 4 USB ports, LAN-Port RJ45 and RS232 ports. The housing is durable aluminum with front panel mounting.
Model number: 7100.PGT120.COM.DT3
Installation: Choose How To Mount Your Tester

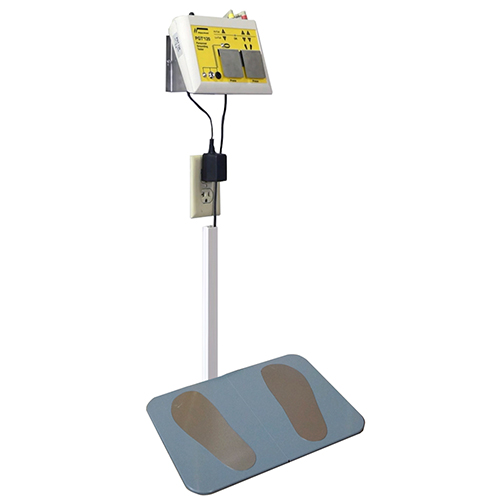

Wall Mounted
Mount your PGT120 securely to the wall using the wall mount option. This allows you to keep the unit off the floor and open up more space.

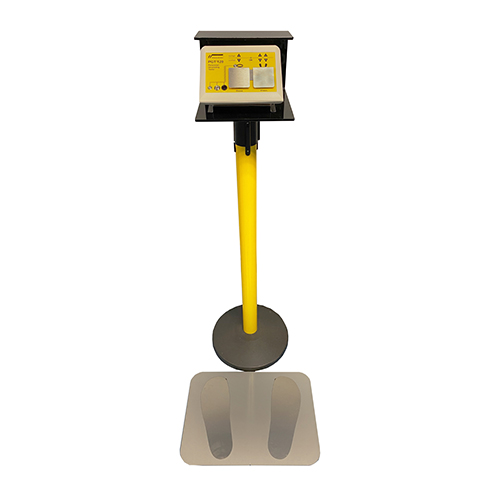

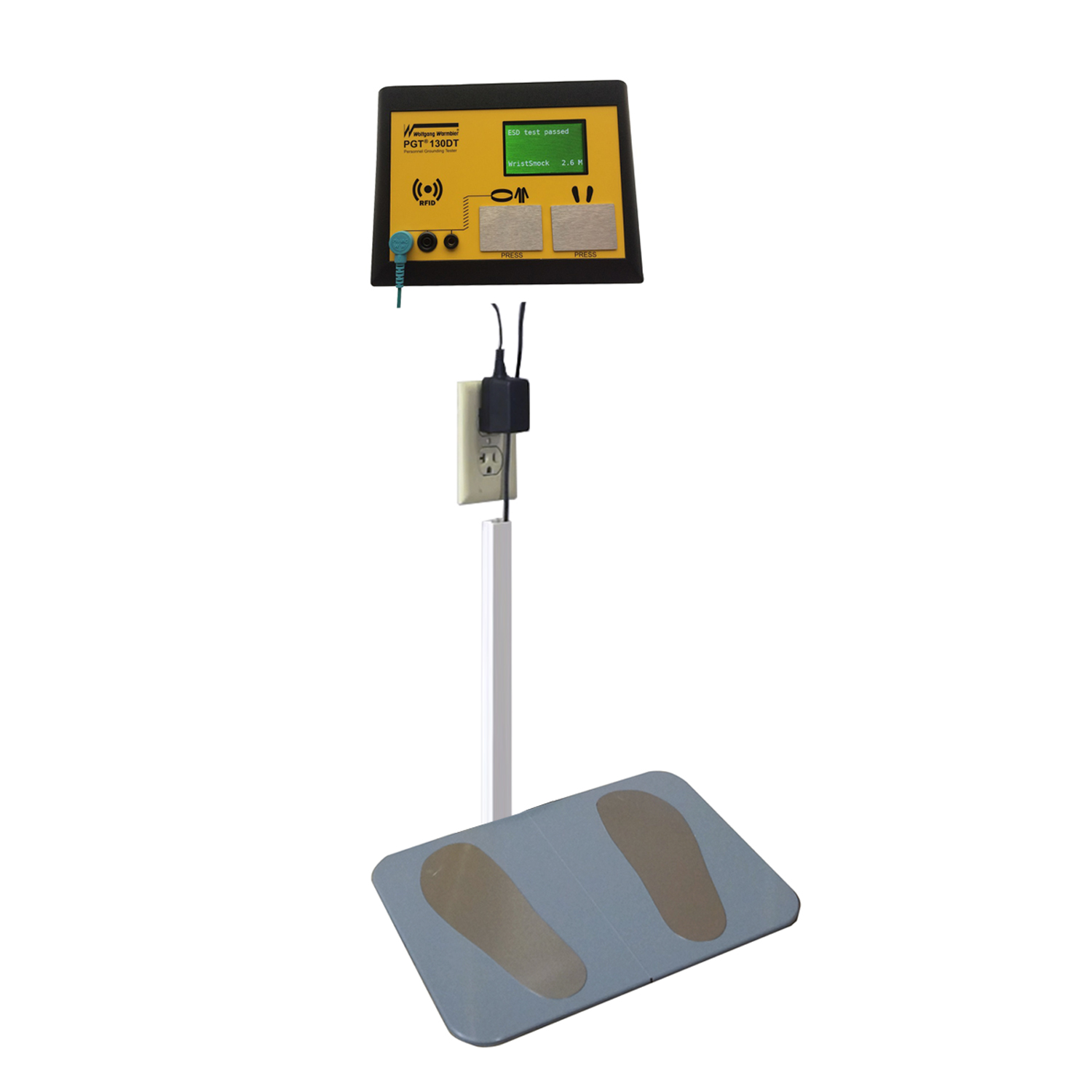

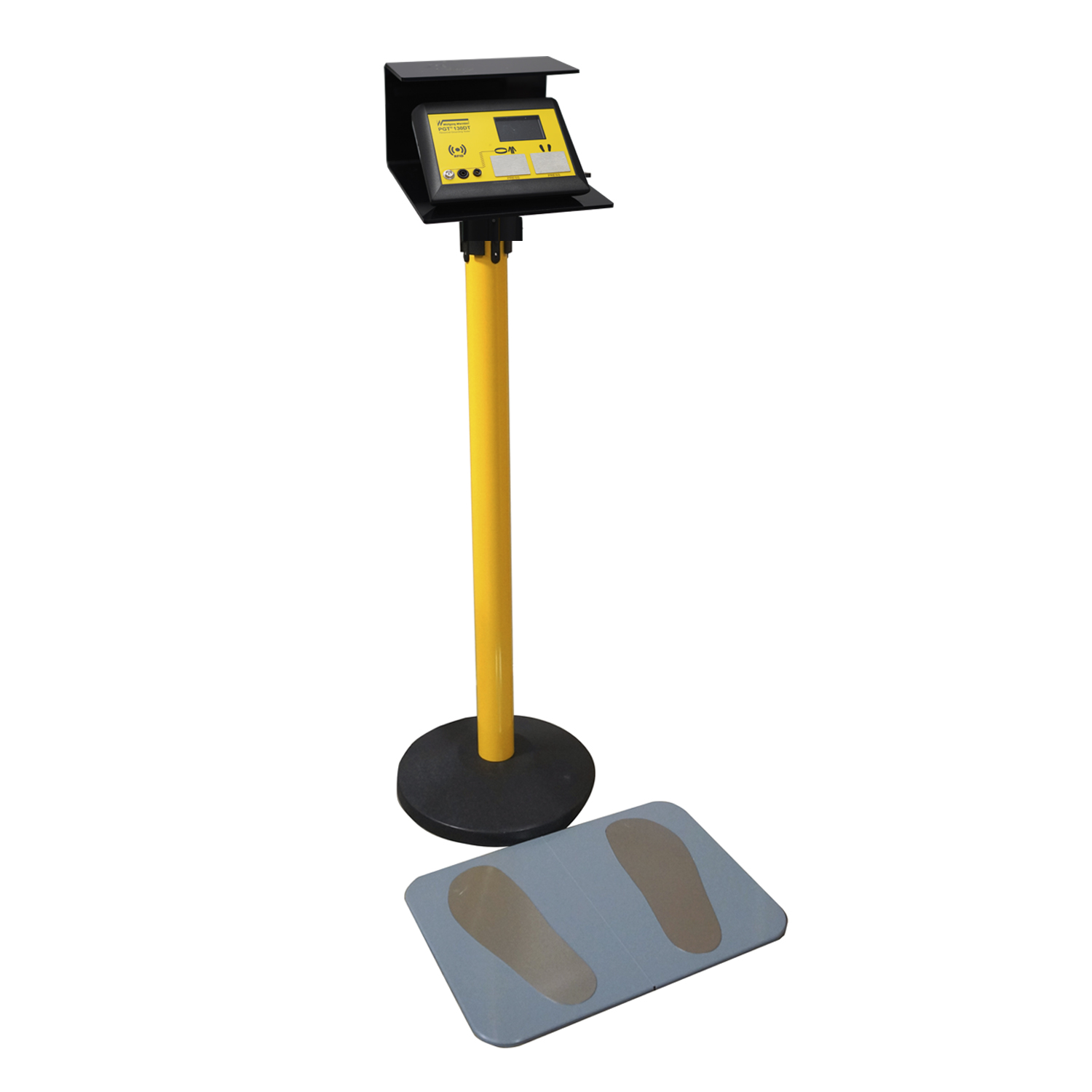

Pedestal Mounted
Place your PGT120 on a pedestal stand for a clean look in your test area! The pedestal stand is perfect for areas where a wall mount won't work.

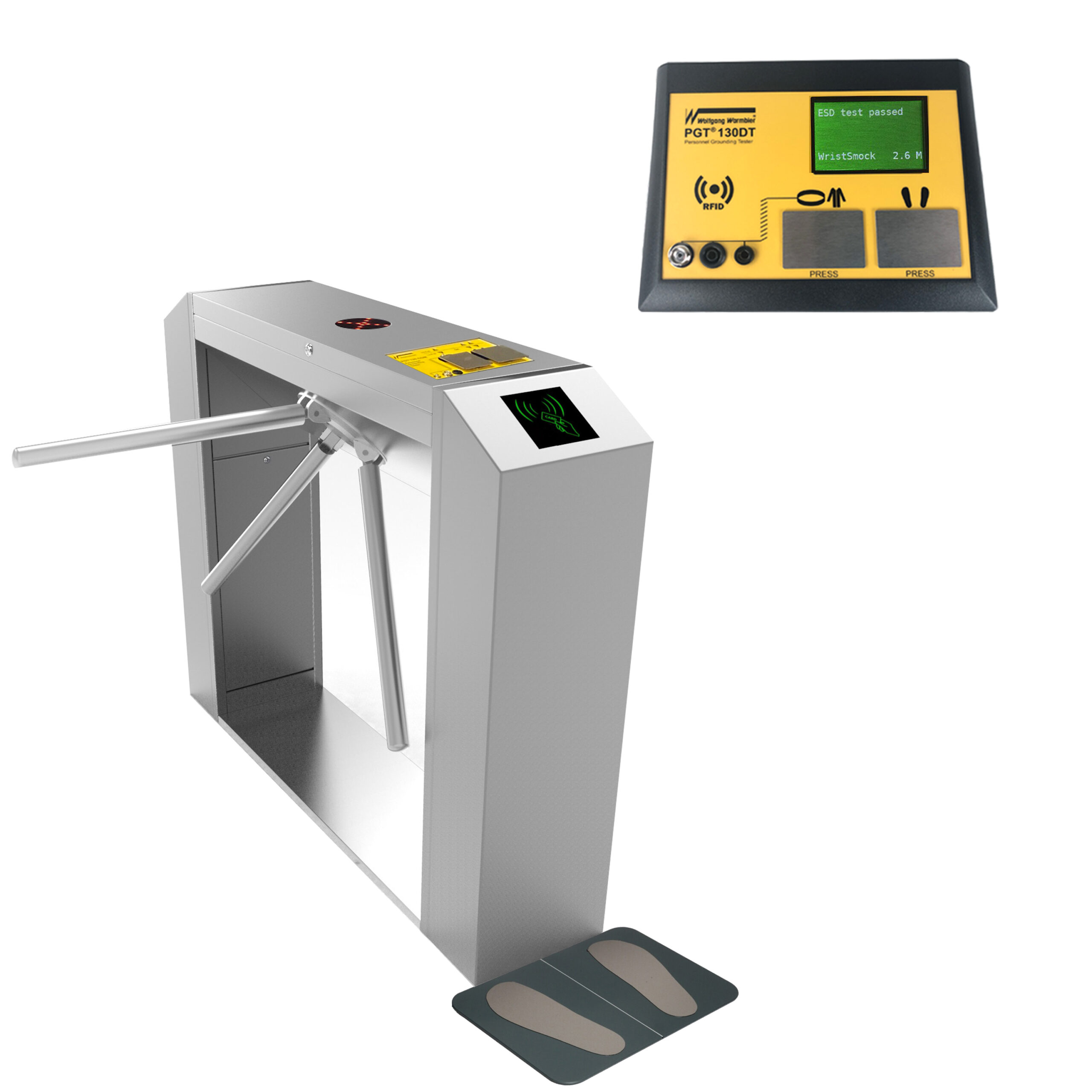

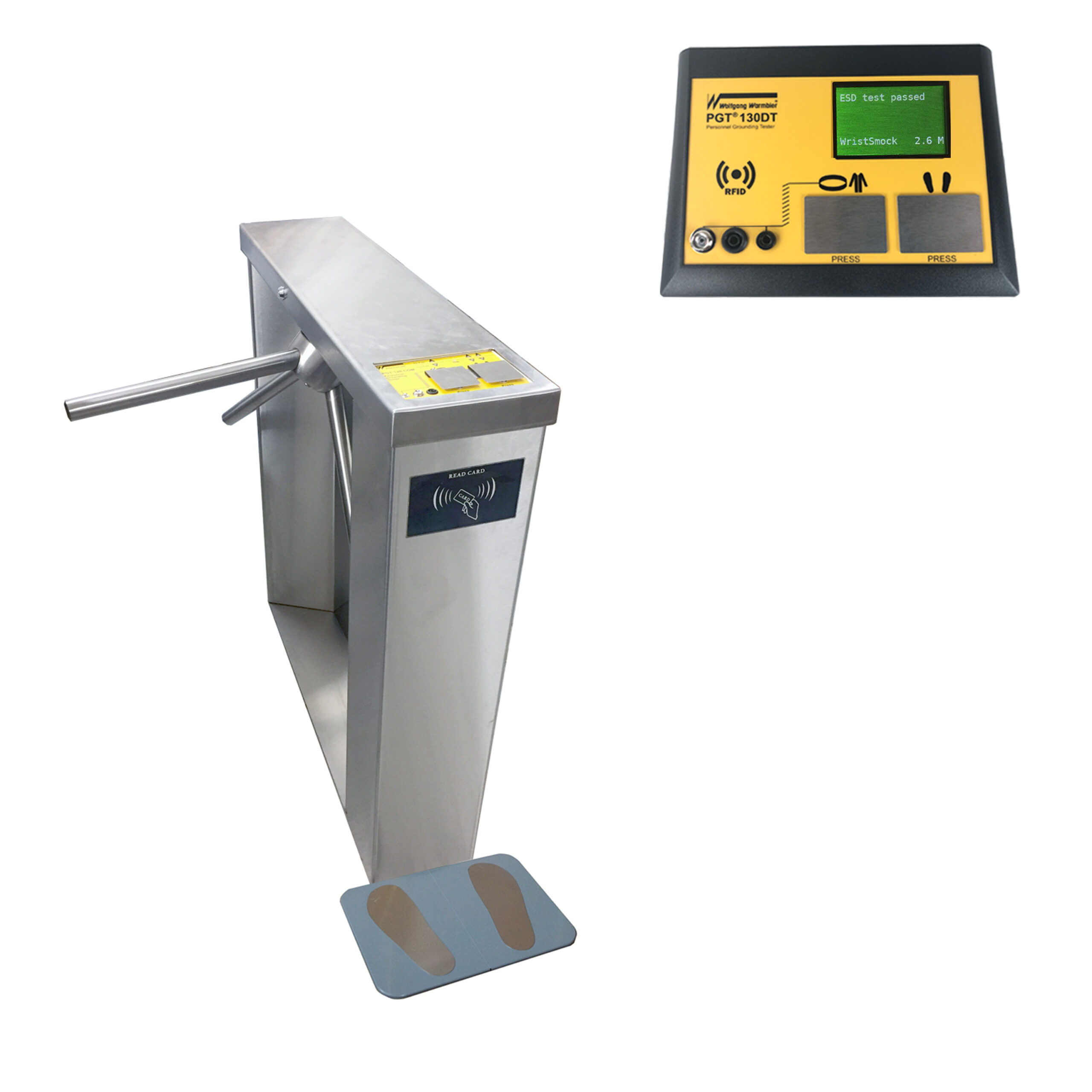

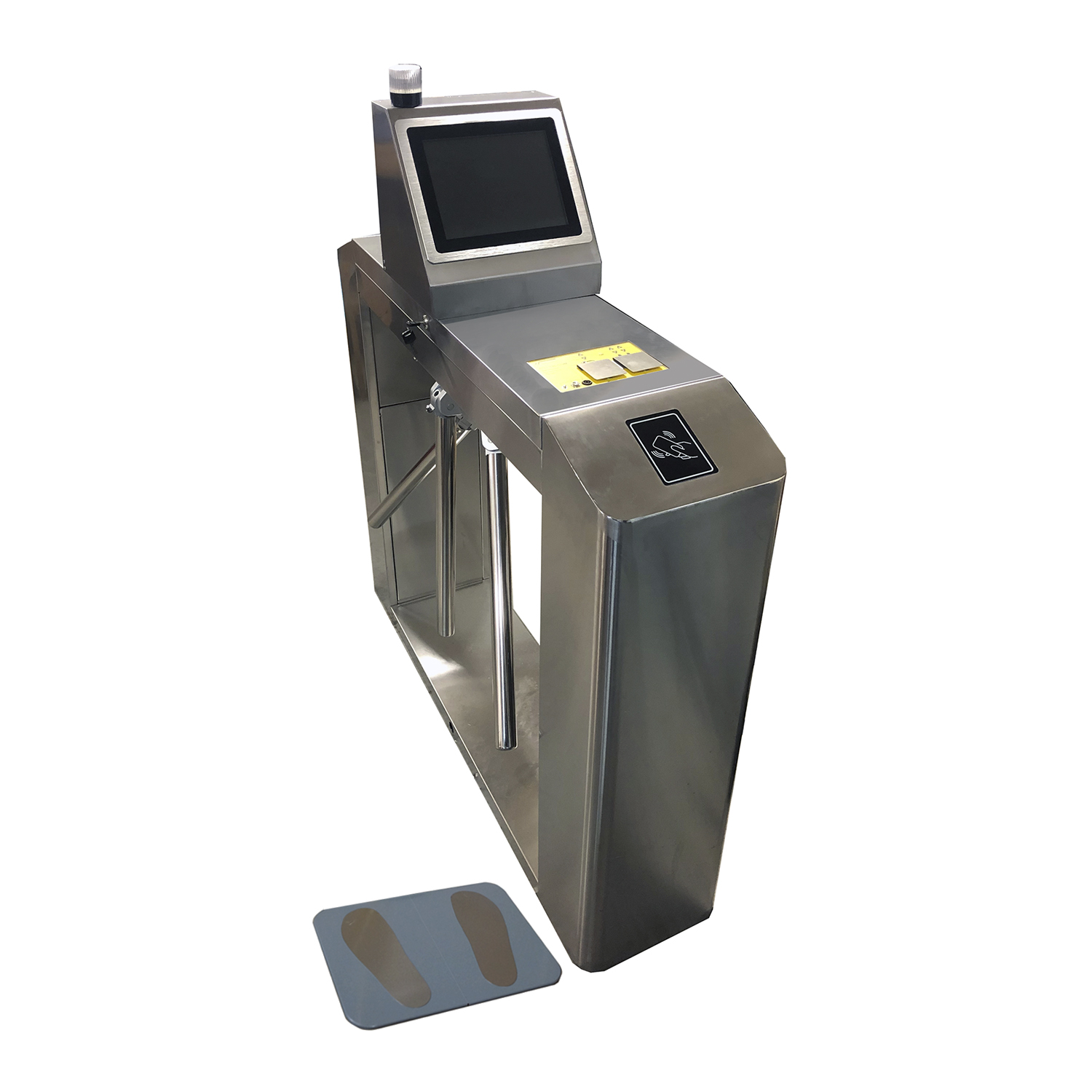

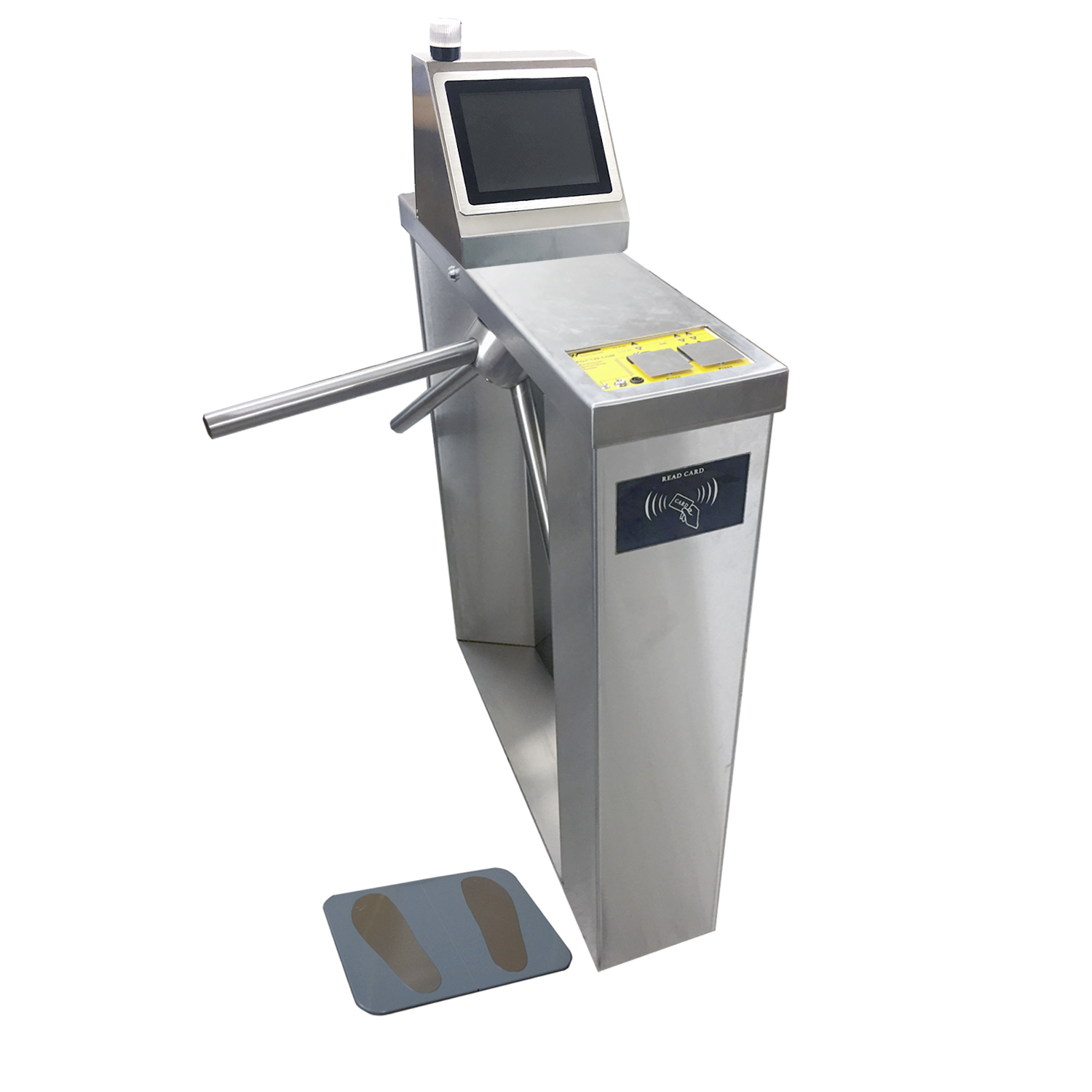

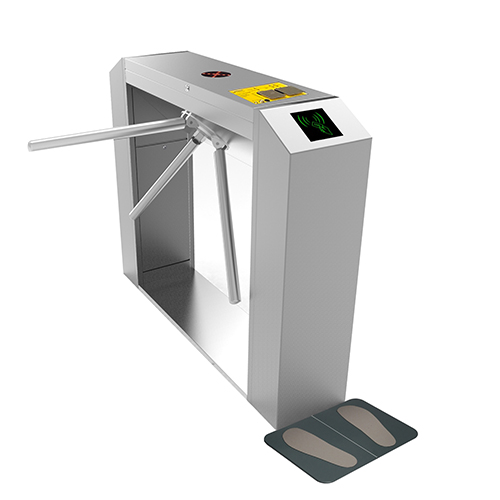

Turnstile Integration
The PGT120 can be integrated into barrier systems such as a door, gate or turnstile. The PGT120 includes a NO/NC switch. If using the PGT120.COM with a data terminal, the system requires a relay module cable. Transforming Technologies offers various turnstile systems.
Choose Your Human Interface Device

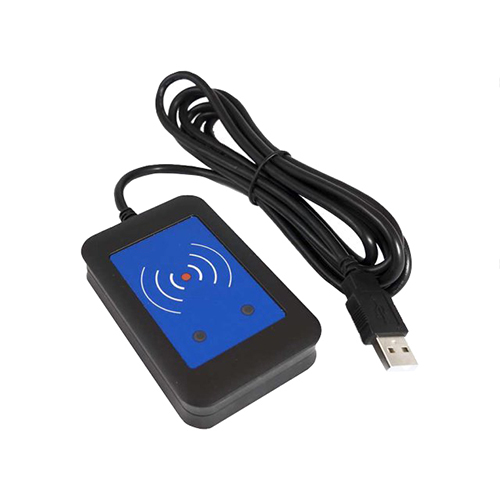

RFID Reader
7100.PGT120.XK.V3

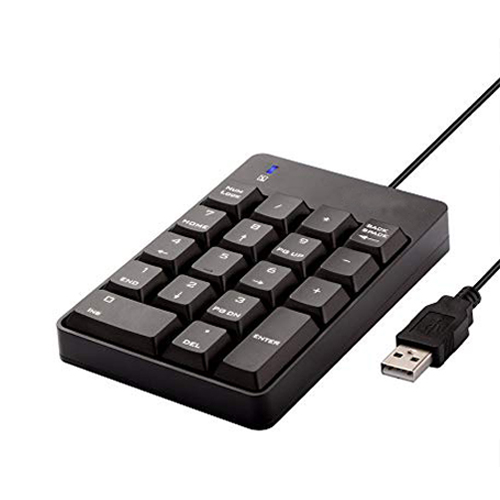

Keypad
7100.PGT120.TEST.11

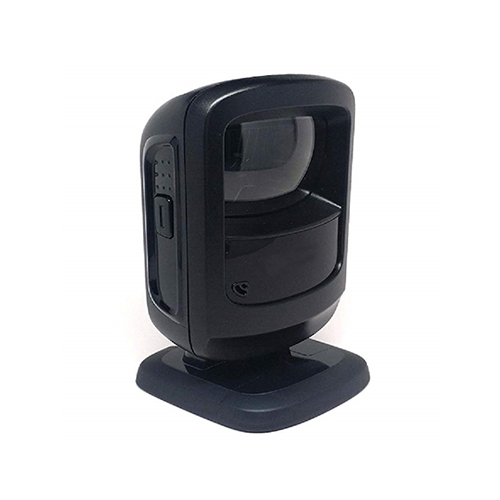

Barcode Scanner
7100.PGT120.TEST.15

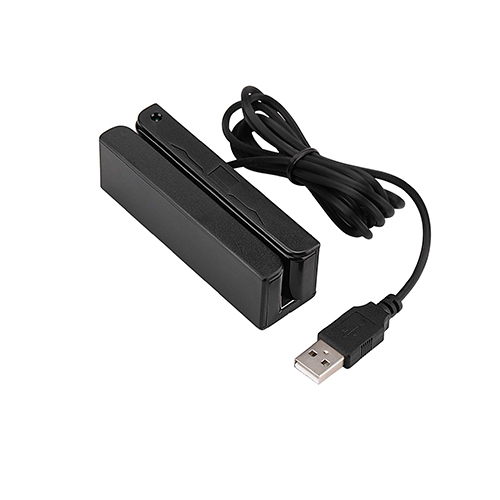

Magnetic Card Reader
7100.PGT120.TEST.17
Accessories

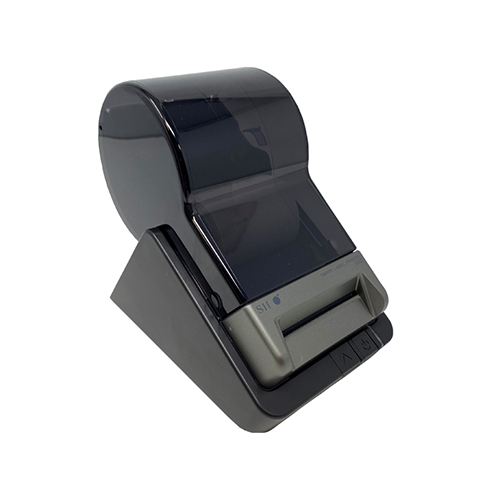

Label Printer
7100.PGT120.COM.D.2

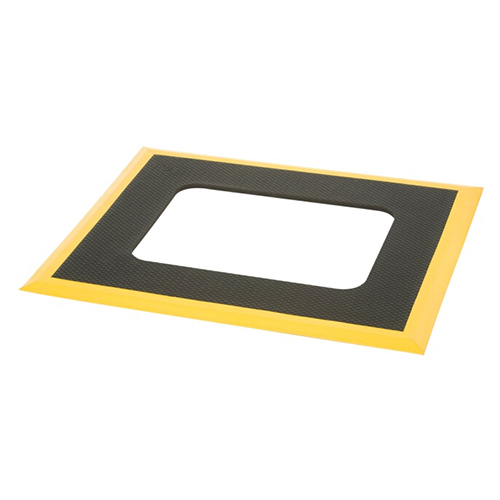

PGT120 Mat
7100.PGT120.SM

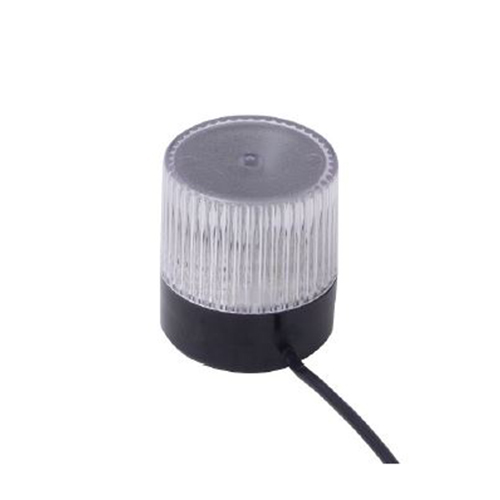

Signal Light
7100.PGT120.TEST.13

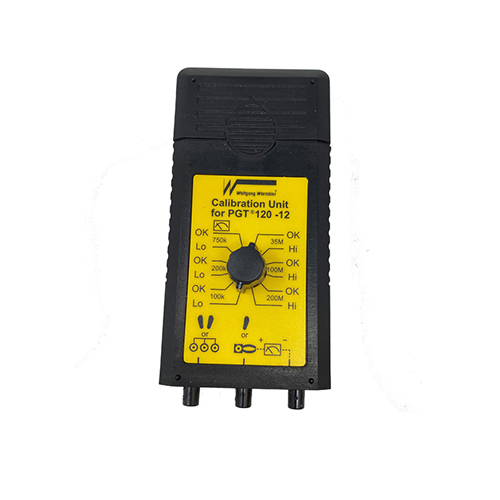

Calibration Device
7100.PGT120.CU.12
