PGT120K140 ESD Tester, Non Data Logging, FastPass Turnstile

  • TESTING: Independently test the functioning of ESD footwear & wrist strap grounding products and signals if there is a problem
  • HANDS-FREE: Automatically test footwear in hands-free mode
  • SIGNALS: Audibly and visually signal a “Pass”, “High-Fail” or “Low-Fail”
  • TIME SAVE: Tests both feet simultaneously and independently to save time
  • ACCURATE: Uses a 100volt test circuit (by default) which is the same voltage used for qualification tests.  Adjustable to 30 or 50volts as well.

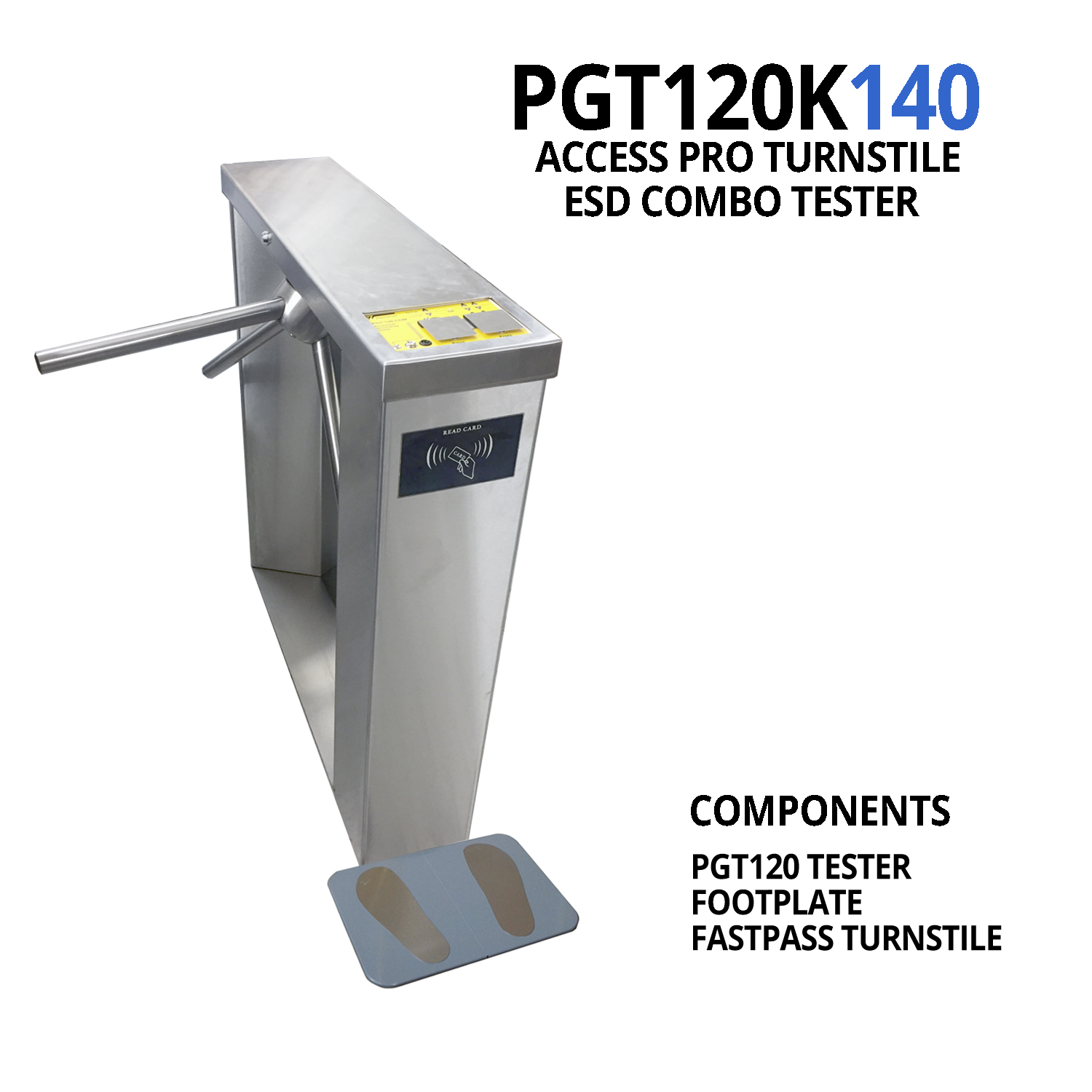

  • COMPONENTS: 7100.PGT120.US Non Data Logging Tester, FastPass Turnstile
  • BARRIERS: The PGT120 can integrate with a door/barrier system and trigger the barrier to open with a PASS test. Interested in a Turnstile? Learn more about our AccessPRO turnstile system.

Voltage

100 volt
Combo Test Modes

Hands-Free (Footwear), Wrist & Footwear
Test Capabilties

Test Apparel, Test Footwear, Test Wrist Straps
Test Type

Combo Ground Tester
Data Logging

No
Test - Mounting

Turnstile Integration

Data Sheet
Manual
SKU: PGT120K140
Price: $11,739.70

Available on backorder

Add to quote

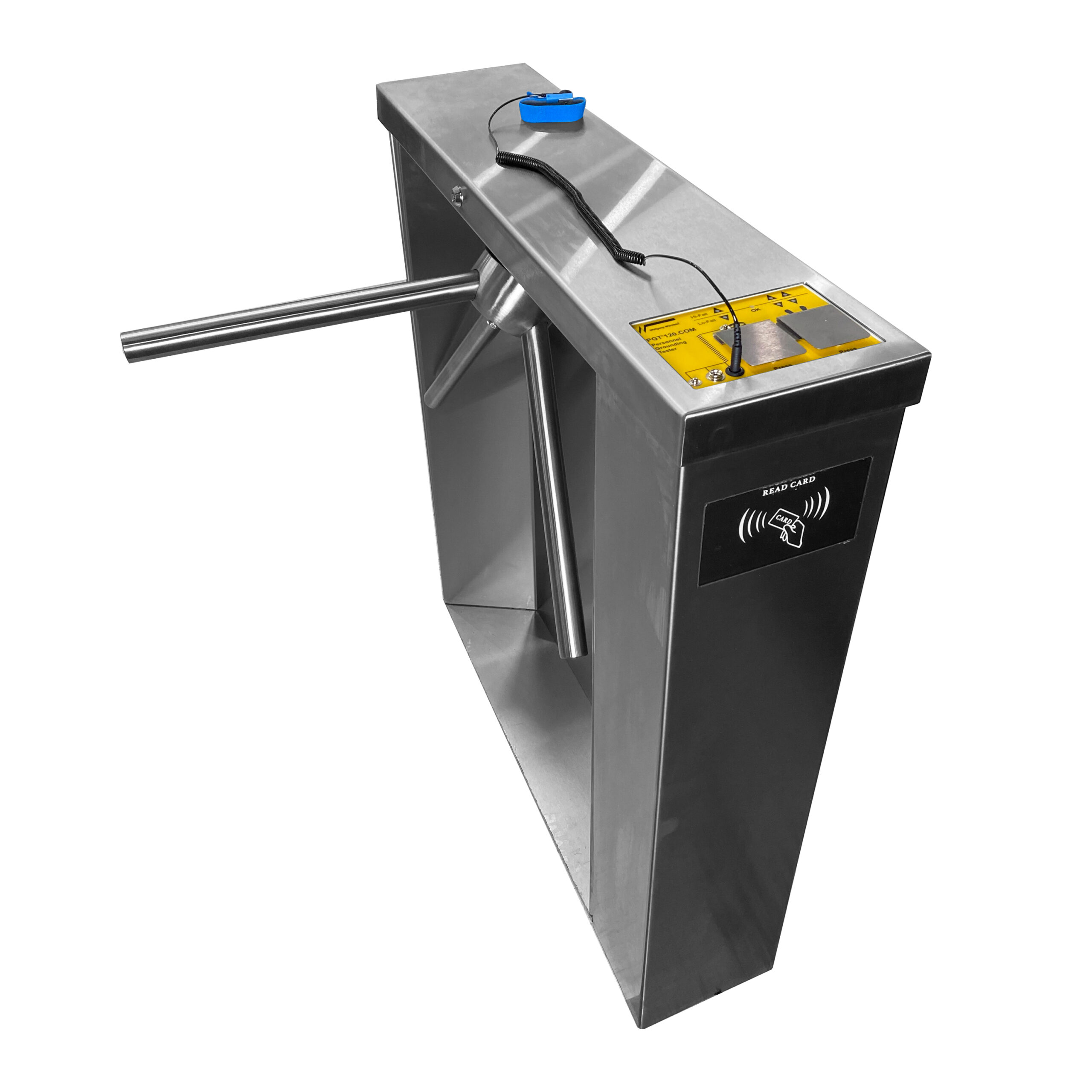

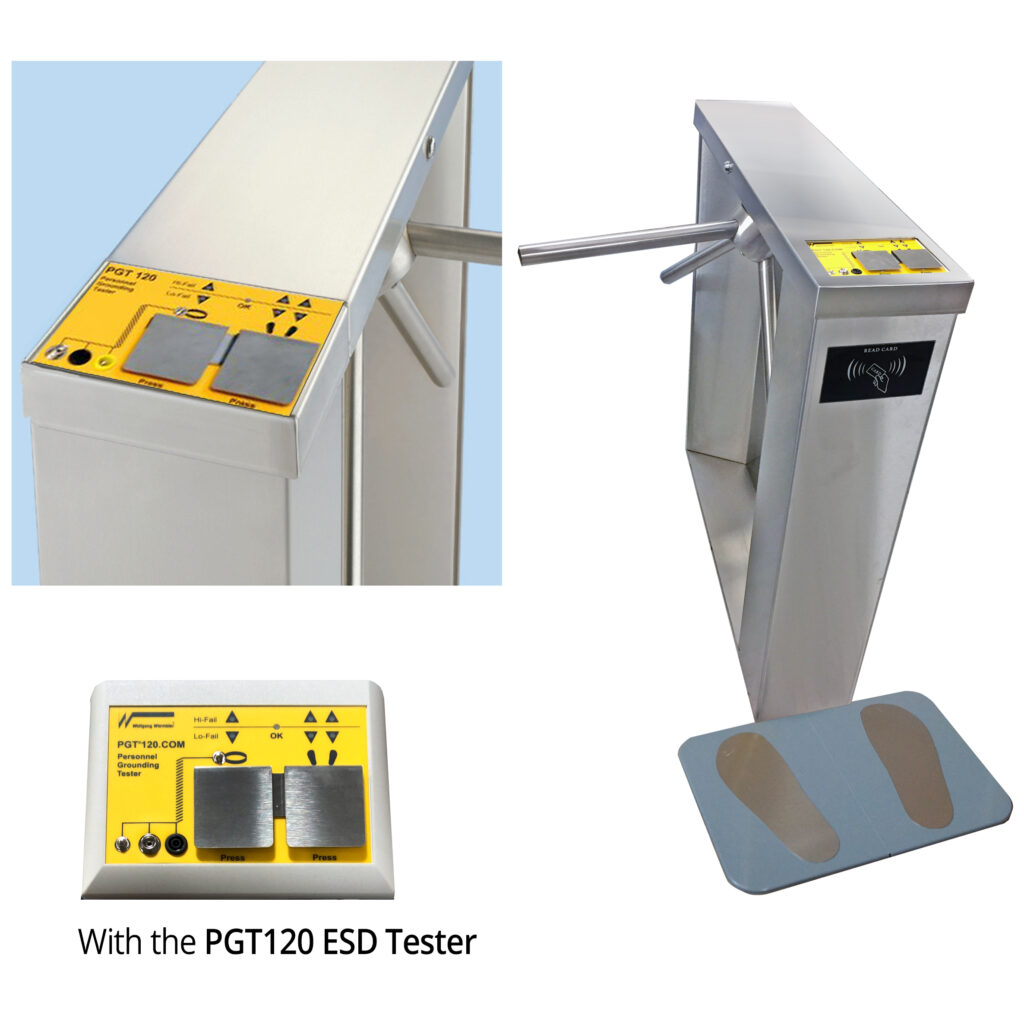

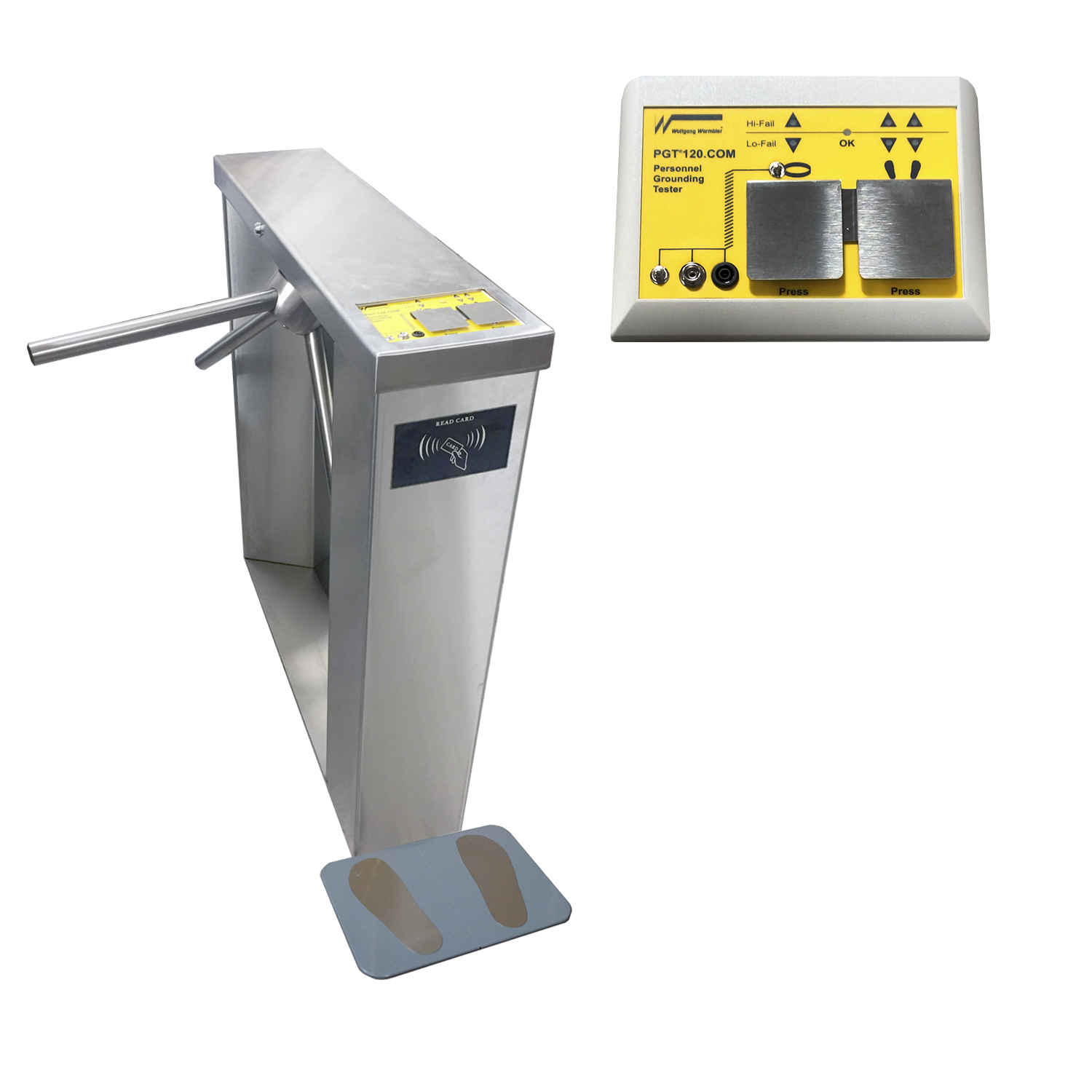

The PGT120K140 is an easy to use and complete test station for ESD shoes and wrist straps and Access Control.

The personnel grounding tester is able to perform a quick and accurate control measurement of the ESD protection. The test results are indicated both with audible and visual signals. The PGT120 measures the left and right shoe separately.

The Stadium Fast Pass Series Turnstile

The Stadium FastPass™ Series is made for years of reliable service in high traffic/volume applications like stadiums, convention centers, landmarks and military bases. Thousands are currently in use at leading pro-sports venues, amusement parks and high-profile attractions worldwide.

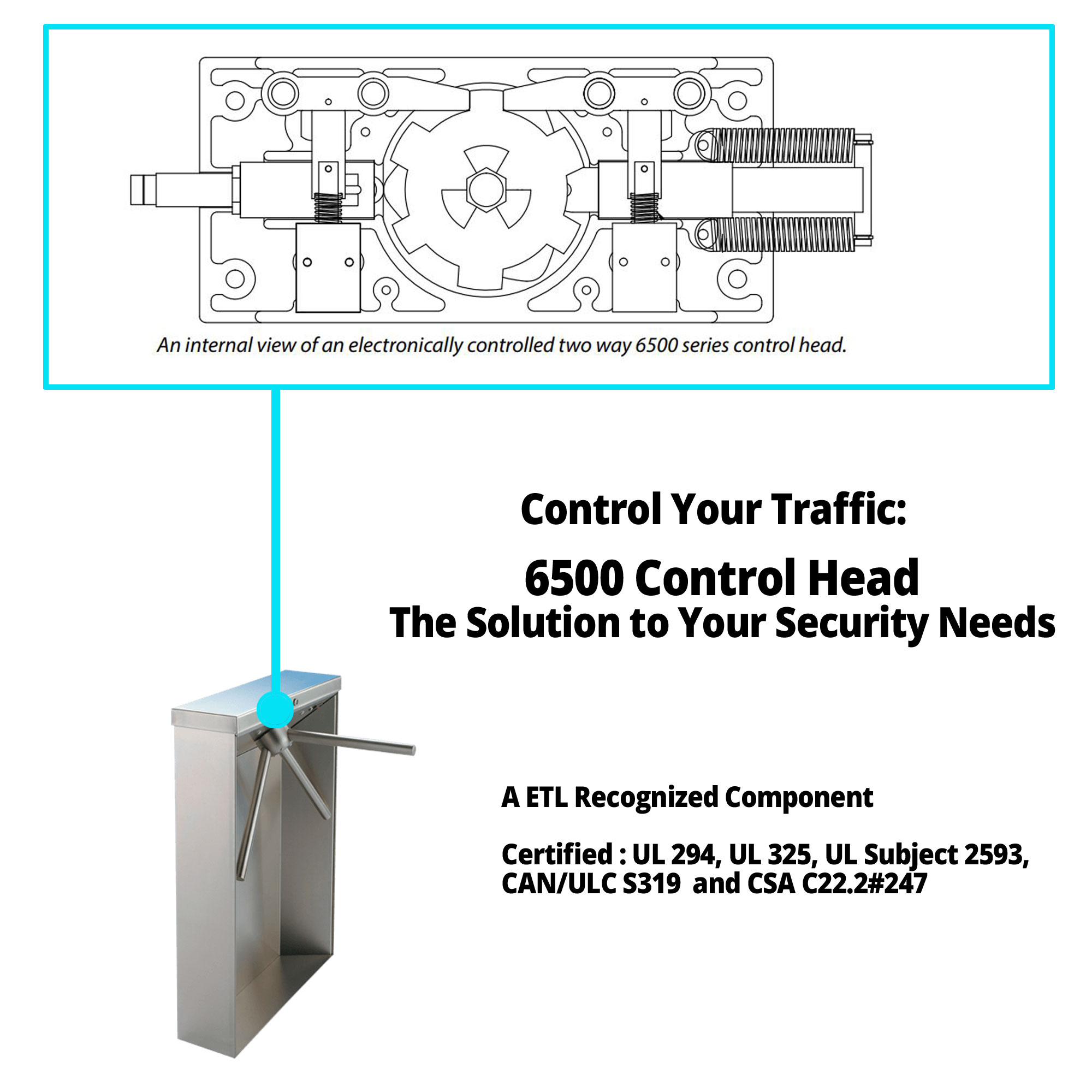

The cabinets are constructed of heavy 14-guage, 300 series satin stainless steel and features the 6500 Series Control Head (with auto indexing and shock suppression technology). The cabinets can be interfaced with optional LCD counters, card readers, push button, and wireless remotes. We offer a matching ADA compliant handicap gate with this series

The Fast Pass Turnstiles are made to order in Ohio, USA.  Lead time may be up to 8 weeks.





















Accessories
The PGT 120 is supplied complete with footwear electrode, flexible cord, transformer with power cord.

Periodic Verification Unit
The PGT120 is factory calibrated and comes complete with a NIST traceable certificate. Calibration can be verified with the PGT120.CU. Recommended calibration verification interval is 24-months.(sold separately).

Foot Plate Mat
The footwear testing plate can fit inside an anti-fatigue mat with high visibility yellow borders. Part Number: 7100.PGT120.SM.(sold separately).

Walk Mounting Plate
The wall mounting plate: Part Number 7100.PGT120.WK (sold separately).





The shoes can even be measured in a hands-free mode which means that the staff members are tested automatically when standing on the foot plate. PGT 120 can be connected to an automatic door opening system.

Hands-Free Testing Video

100volt Test Circuit
The PGT120 uses a 100volt test circuit (by default) which is the same voltage used for qualification tests. Using 100 volts allows the PGT120 to test all materials consistently. DIP switches on the PGT120 can adjust the voltage to either 30V or 50V.

The PGT 120 is supplied complete with footwear electrode, flexible cord, transformer with power cord.

PGT120 Features:

PGT120 ESD Tester Questionnaire.

The PGT120 is an easy to use and complete test station for ESD shoes and wrist straps. The PGT120 is a fully customizable system that we can build to suit your needs. Please fill out our questionnaire below to begin the process. We will review your answers, design a custom solution for your needs and send you a quote.  If you would prefer to speak by phone, please call 419-841-9552.
