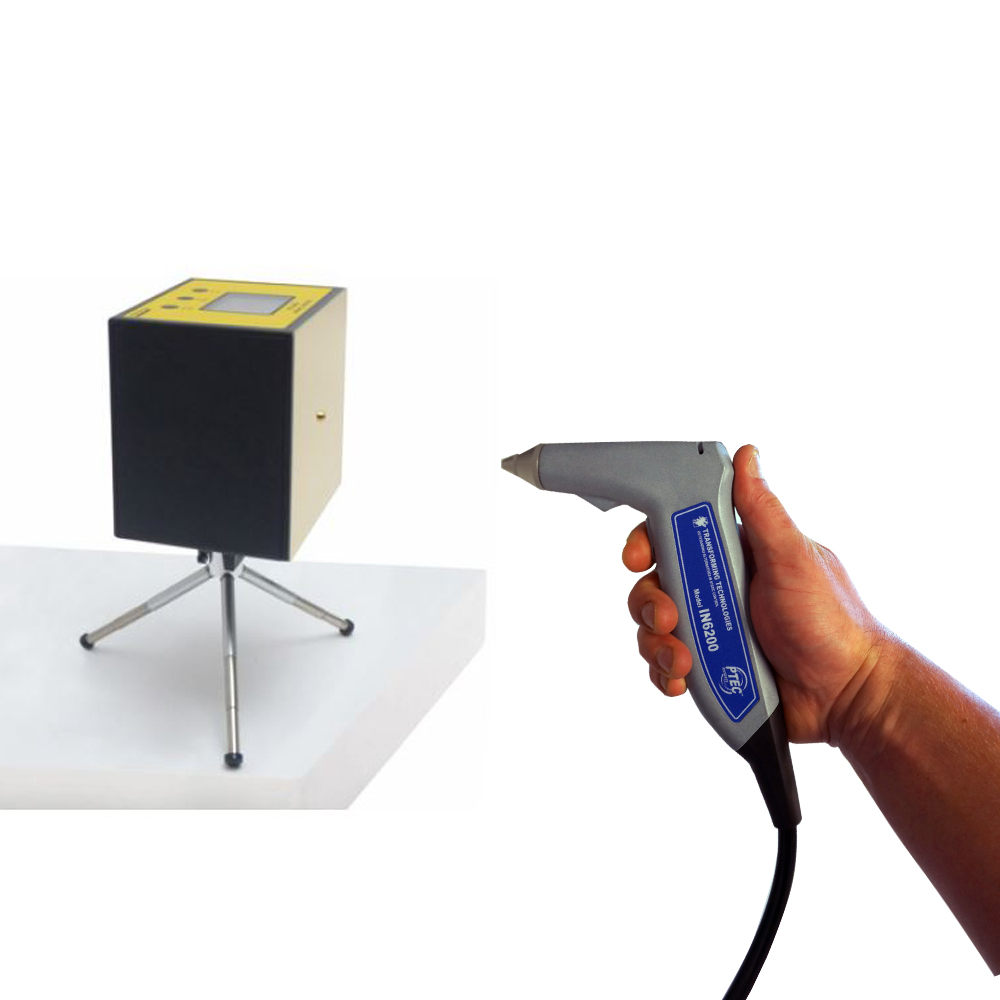

Model CPM54 Warmbier Charge Plate Monitor
- The Warmbier CPM54 Charge Plate Monitor is an simple-to-use device to measure ESD air ionizers performance.
- ESD Compliance: Quickly and easily test ionizer decay times and offset voltage (balance) according to ANSI ESD2020 and IEC 61340-2-1.
- Test body voltage while walking which allows users to perform the "Walking Test" for testing of ESD floors.
- Simple To Use: Easy 3 button operation
- Compact and Portable: Powered by internal rechargeable lithium ion battery and a compact, easy to carry design
- It supports fully automatic testing of positive and negative discharges as well as offset voltages
- Determines the discharge time of a preselected voltage threshold to a lower voltage value (standard ± 1000 V to ± 100 V), other start and stop values can be set
- Measurement of voltage potential on an integrated plate electrode (150 x 150 mm) with a contacting plate measurement according to IEC 61340-4-7
- Measurement of body voltages up to 2000V according to IEC 61340-4-5
- Colour display
- Dimensions: 150 x 173 x 125 mm (W x D x H) - Weight: 1 kg (including batteries)
- Analog output: +/- 5 V (via BNC connection)
- Mounting: ¼“ tripod socket
The Warmbier CPM54 Charge Plate Monitor is an simple-to-use device to measure air ionizers performance. Quickly and easily test ionizer decay times and offset voltage (balance) according to ANSI ESD2020 and IEC 61340-2-1.
The Warmbier CPM54 Charge Plate Monitor is battery powered and due to its compact design, it is very suitable for the mobile use in industrial areas. The CPM54 is menu-driven and is controlled by with only 3 buttons for simple operation. Fully automatic testing of positive and negative decay times and the offset voltage (balance). All selected parameters will be shown in the color display. The charge plate has selectable start (1000v, 500v or 250v)and stop parameters (100v, 500v, or 35v.). The ESD standard settings of 1000v to 100v is default.
The CPM54 can also be used to measure Body Voltage with measurements up to max 2000v according to ANSI ESD 2020 and IEC 61340-4-5. With Body Voltage Testing, the user can perform the Walking Test for evaluating ESD floors.
