MT4500 Series: Two-Layer ESD Rubber Pre-Cut Table Mats

$0.00
  • ESD RUBBER PRE-CUT TABLE MATS: Have a complete ESD-Safe workstation with our pre-cut table mat kits. Includes ESD mat, grounding snaps and common point ground cord.
  • SIZES: Available in many standard sizes.  If you need a custom size - call us at 419-841-9952
  • ESD PROTECTION:  The MT4500 2 layer ESD table mats have a resistance of less than 1.0x10^9 ohms and provides reliable ESD protection for the life of the mat.
  • TESTED AND PROVEN:  The mats have been independently tested and meets or exceeds all industry standards for worksurfaces.
  • EXCELLENT QUALITY: Premium 0.080" thick ESD table mats protect your sensitive items as well as your work surface.
  • DURABILITY: Excellent resistance to hot solders, soldering irons, most solvents and wear-and-tear.
  • Colors: Nasa Blue, Royal Blue, Green, and Gray
Request Quote
Part Number: MT4500-CUT-MATS
Categories: Table,
Tags:
Data Sheet
ESD MATTING

ESD Table Mats are made with premium performance 0.080″ thick ESD rubber that protects your static sensitive items as well as your work surface.

The MT4500 Series ESD Table Mats are made with our durable 2-ply rubber. It is constructed with two layers: A black conductive bottom layer and a static dissipative colored top layer which creates outstanding static eliminating performance. The static dissipative top layer absorbs the static from items placed upon it in safe, controlled manner and flows through the conductive bottom layer quickly to ground to be neutralized.  Our ESD Rubber Pre-Cut Table Mats are tested and certified to ANSI ESDs20.20 standards for ESD Worksurfaces and test reports can be obtained by request. Learn more about ESD Standards at the ESDA.org

Two-Layer Rubber ESD Table Mats Protect Your Tables

Our MT4500 Series ESD Rubber Pre-Cut Table Mats protect your worksurface from wear-and-tear of the manufacturing process. The durable rubber matting provides great protection against most general use applications – cutting, scraping, gouging, sliding – nothing is too much for our  two-layer ESD rubber pre-cut table mats.  For working on electronics, the ESD Rubber Mats offer excellent resistance to hot solders, soldering irons and most solvents.

MT4500 series is 0.080″ thick are available in various sizes and packaged individually with two (2) 10 mm snaps and a common point ground cord.

Meets or exceeds requirements of ANSI/ESD-S20.20 per ANSI/ESD STM4.1

How to Choose an ESD Mat

An ESD mat is a very important part of an ESD protected area.  ESD mats are designed to eliminate static on its surface and of objects placed upon it.   It does this by having a conductive material embedded within the mat that collects the static and sends it to ground (earth). This is usually accomplished by connecting the mat to ground such as an outlet with a cords.

A quick search online or in ESD catalogs reveal a myriad of ESD mat options.   What are the main considerations in choosing an ESD mat?

  • Material
  • Composition
  • Size
  • ESD Properties

Read our article on How To Choose an ESD Mat to learn more

Part Numbers

ItemDescriptionSales Unit
MT2436B24" x 36" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT2448B24" x 48" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT2460B24" x 60" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT2472B24" x 72" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3036B30" x 36" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3048B30" x 48" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3060B30" x 60" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3072B30" x 72" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3648B36" x 48" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3660B36" x 60" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3672B36" x 72" x .080", Light Blue, Rubber Table Mat, Including HardwareEach

Replace “B” at the end of the part number with “RB” for royal blue, “GY” for gray and “GN” for green

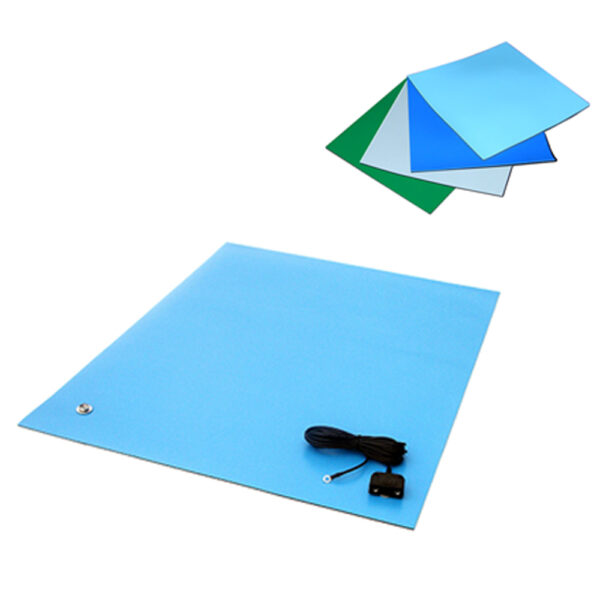

ESD Rubber Pre-Cut Table Mats Colors
