Surface Resistance Meters
Showing all 13 results
Warmbier METRISO® 3000 High Resistance Test Kit
A Surface Resistance Test Kit capable of measuring a wide resistance range and complete the tests required for an ESD protection plan. The METRISO 3000 test kit measures a wide range of values:
More Info
- Perform resistance tests such as resistance point-to-point and resistance to ground measurements to evaluate items for ESD compliance
- Large test range: 1 KOhm to 1.2 TOhm
- Store up to 50,000 test values and create reports with included software
- Results displays on LCD screen
- Comes with 5lb probe set and hand probe
- Comes in conductive case with handle
- Tests temperature and humidity automatically
- USB communication port for data transmission
- The supplied Report Generating Software ETC allows to generate a complete test report
- Humidity and temperature sensor
- A barcode scanner can be used in order to record measurement points before testing
- Menu language: German/English/French/Spanish
Warmbier METRISO®B530 Surface Resistance Test Kit
Take quick and accurate ESD measurements of materials with this high resistance testing kit. The Metriso® B530 test kit efficiently measures a wide resistance range and is suitable for
More Info
- Perform resistance tests to evaluate items for ESD compliance
- Test range: Low ohmic range: 1 to 10 kOhm – 199 GOhm
- Comes with 5lb probe set with innovative extension handle
- Comes in conductive case with handle
Warmbier SRM200 Pocket Digital Surface Resistance Verification Kit
Full-featured digital Surface Resistance Meter with lightweight travel probes, two-point probe, data storage, temperature and humidity testing! SRM200 is a very useful instrument for checking
More Info
- Perform resistance measurements to determine if a surface is dissipative, conductive, or insulative
- Test range: 10^3-10^12
- Stores test data that can be accessed via USB
- Measures temperature and humidity
- Test voltage: 10V/100V(automatic ranging)
- Built-in resistivity probes
- Carrying case & calibration certificate included
Warmbier SRM200 Pocket Digital Surface Resistance Meter
Full featured digital Surface Resistance Meter with data storage, temperature and humidity testing! SRM200 is a very useful instrument for checking surface resistance and resistance to ground.
More Info
- ESD TESTING: Perform resistance measurements to determine if a surface is dissipative, conductive, or insulative
- RANGE: Test range: 10^3-10^12
- DATA LOGGING: Stores test data (up to 9801 measurement values) in it’s internal memory that can be accessed via USB
- SOFTWARE: Quickly build test reports with the included software or export the tests via CSV file
- ADDITIONAL TESTING: Measures temperature and humidity which is important for understanding resistance measurements.
- AUTO-ADJUSTING: The SRM200 can test with 10V or 100V and automatically adjusts based on the material tested
- PROBE OPTIONS: Uses built-in parallel resistivity probes and can be used with 5lb disc probes, handheld probe, two point probe or concentric ring probes.
- INCLUDED: Carrying case & calibration certificate included.

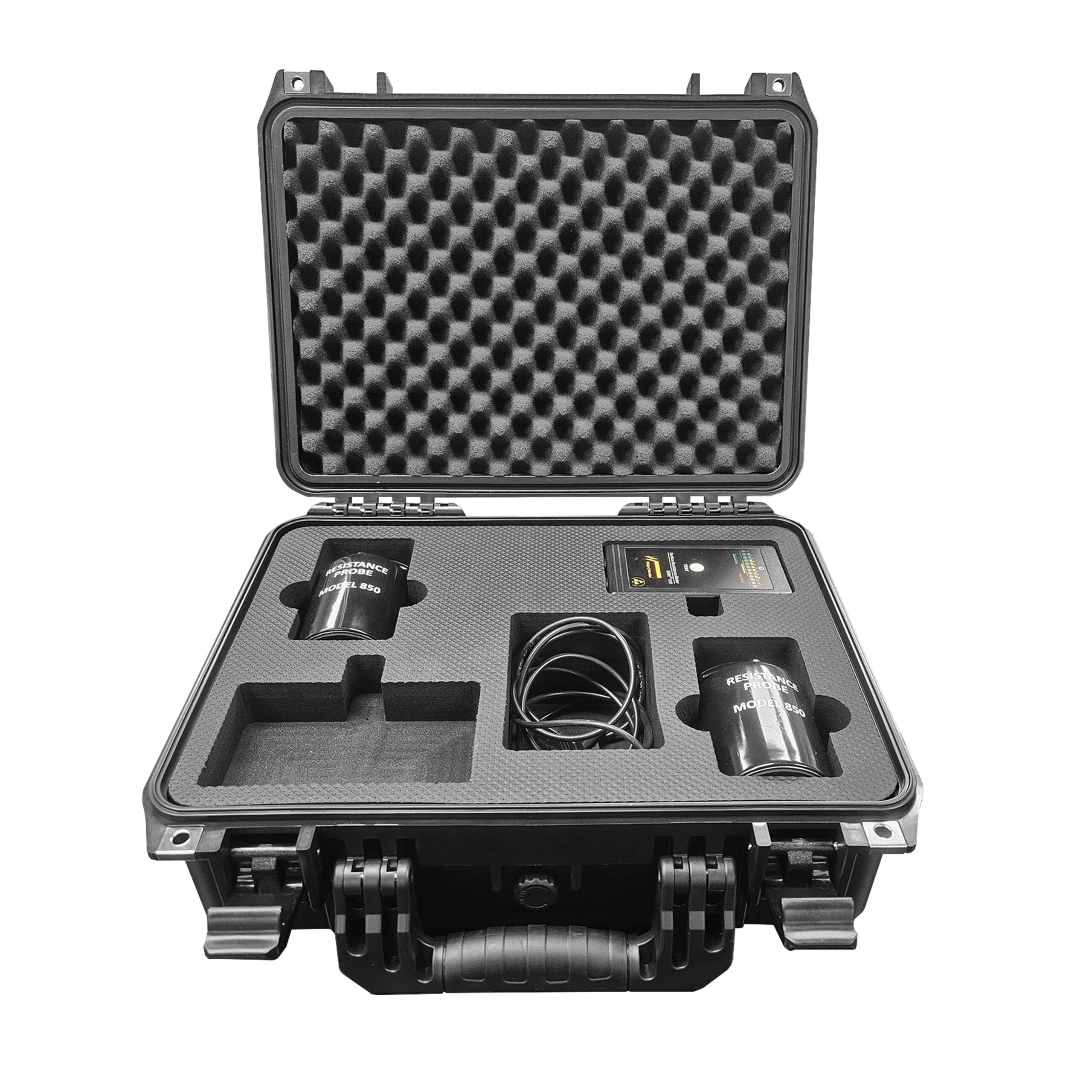

Warmbier SRM110 Pocket Digital Surface Resistance Test Kit
Quickly and accurately take ESD resistance measurements with the Warmbier SRM110. The LED readout will report the resistance in powers of 10 (example 10^10) and indicate if the surface is
More Info
- Quickly and accurately take resistance measurements with the Warmbier SRM110.
- The LED readout will report the resistance in powers of 10 (example 10^10)
- Indicates if the surface is Insulative, Conductive or Dissipative.
- Test range: 10^3-10^12
- Test voltage: 10V/100V(automatic ranging)
- Accuracy + 5%
- Built-in resistivity probes
- Carrying case & Calibration Certificate Included
- Can be used with the Part Number 410 Mini-Probe to take measurements on small areas.
SRM500K Digital Surface Resistance Test Kit
The SRM500K is a digital surface resistance test kit designed to test all conductive, anti-static and static dissipative surfaces for electrical resistivity/ resistance according to EOS/ESD, CECC,
More Info
- Complete testing kit for resistance measurements such as resistance-to-ground, resistance point-to-point, and volume resistance
- 10v and 100v range voltage selection
- Automatic zeroing and power shut off
- Tests temperature and humidity
- Two 5 lb disk probes
- Built-in resistivity probes
- Carrying case
SRM310 Pocket Digital Surface Resistance Test Kit
Pocket-sized, battery-powered Surface Resistance Meter is easy to use, transport and test. This SRM 310 uses built-in parallel electrodes to accurately measure electrical resistance for periodic
More Info
- Pocket-Sized Digital Surface Resistance Test Kit
- Test range: 10^3-10^12
- Test voltage: 10V/100V(automatic ranging)
- Accuracy + 5%
- Built-in resistivity probes
- Carrying bag
SRM330 Lightweight Travel Surface Resistance Meter Kit
The ultimate travel kit for testing materials for electrical resistivity/resistance - Lightweight and portable! The battery powered SRM330 is equipped with built-in parallel electrodes for quick
More Info
- Easy-to-read color coded readout screen
- Two lightweight “Press & Test” travel electrodes
- Built in resistivity probes
- Automatic test voltage selector
- Carrying case
Warmbier 7220.880.SET Concentric Ring Probe Model 880, with Carrying Case
The 7220.880.SET concentric ring probe is used with a surface resistance meter to take volume resistance, point-to-point resistance, surface resistance and resistance-to-ground measurements. The
More Info
- A concentric ring probe used with a surface resistance meter to take volume resistance, point-to-point resistance, surface resistance and resistance-to-ground measurements.
- Concentric ring with conductive rubber (R < 5 ohm) with silver particles
- Take resistance-to-ground, point-to-point and volume resistance measurements
- Include stainless steel plate, insulative plate, and a conductive carrying case
Warmbier 890 Two Sided Probe
The 890 two-side probe is two ESD testing probes in one: a 5lb disk probe and a concentric ring probe. The 890 two-sided probe is used with a surface resistance meter to take volume
More Info
- Two-sided probe combines a concentric ring and disk probe
- Made with conductive plastic containing silver particles
- Take resistance-to-ground, point-to-point and volume resistance measurements
- Include stainless steel plate, insulative plate, and a conductive carrying
SR0065 5lb Surface Resistance Probes
5lb Disk Electrode Probes for use with Surface Resistance Meters Designed to test point-to-point (RTT) and point-to-ground resistance (RTG) in accordance with ESD Association Standards. The probe
More Info
- 5lb disk electrode probes for use with Surface Resistance Meters
- Designed to test point-to-point (RTT) and point-to-ground resistance (RTG) in accordance with ESD Association Standards.
- Make measurements on floors, mats, workbenches, garments, seating or any other flat surface where the resistance between two points is required.
- Compatible with most resistance meters.
Warmbier 7220.410 Two Point Probe
The Wolfgang Warmbier 7220.410 two-point probes measures point-to-point surface resistance of small areas The 7220.410 two-point probe are designed to measure surface resistance of small areas. The
More Info
- Measures point-to-point surface resistance of small areas
- Spring loaded contact pins.
- Connects to meters with banana plugs
- Works with the SRM110 and SRM200 surface resistance meters
Warmbier 7200.CL.49 Clamp Probes for Testing ESD Garments
The Wolfgang Warmbier 7200.CL.49 clamps probes are designed to evaluate ESD garments accounting ANSI ESD20.20 The 7200.CL.49 clamps probes are designed to evaluate ESD garments accounting ANSI
More Info
- 7200.CL.49 clamps probes are designed to evaluate ESD garments accounting ANSI ESD20.20
- Wide steel clamps ensures excellent contact with fabric
- Made from rugged stainless steel
- Banana plug socket for connection to the testing meter
