VinylStat C Homogeneous Vinyl ESD Table Mat
- Creates an ESD safe work area by a providing a path-to-ground for electrical charges as well as protecting the work surface from damage.
- Surface resistivity is 10^7 – 10^8
- Homogenous ESD Table Mat
- Available in 50′ rolls or various pre-cut sizes
- Full rolls available online for purchase, please fill out a Quote Request form for pre-cut sizes.
- Available in Blue or Gray
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| COO | USA |
| HTS Code | 3918.10.2000 |
| ECCN | EAR99 / NLR |
| Color | Blue, Gray |
| Mat Layers | 1 |
| Mat Material | Vinyl |
| Mat Surface | Emboss – KidGrain |
| Mat Thickness | 0.093in |
| Industry | Automotive, Computer, Electronic Assembly, Parts Assembly, Quality Control, Anti-Static, Industrial, General Use, Grounding, Safety |
| Resistance | Less Than 10^9 |
| Resistance Category | Dissipative |
| Standards | ANSI/ESD S4.1 – Worksurfaces |
| Mat Width | 24", 30", 36", 48" |
| Mat Length | 36", 48", 60", 72", 50' |

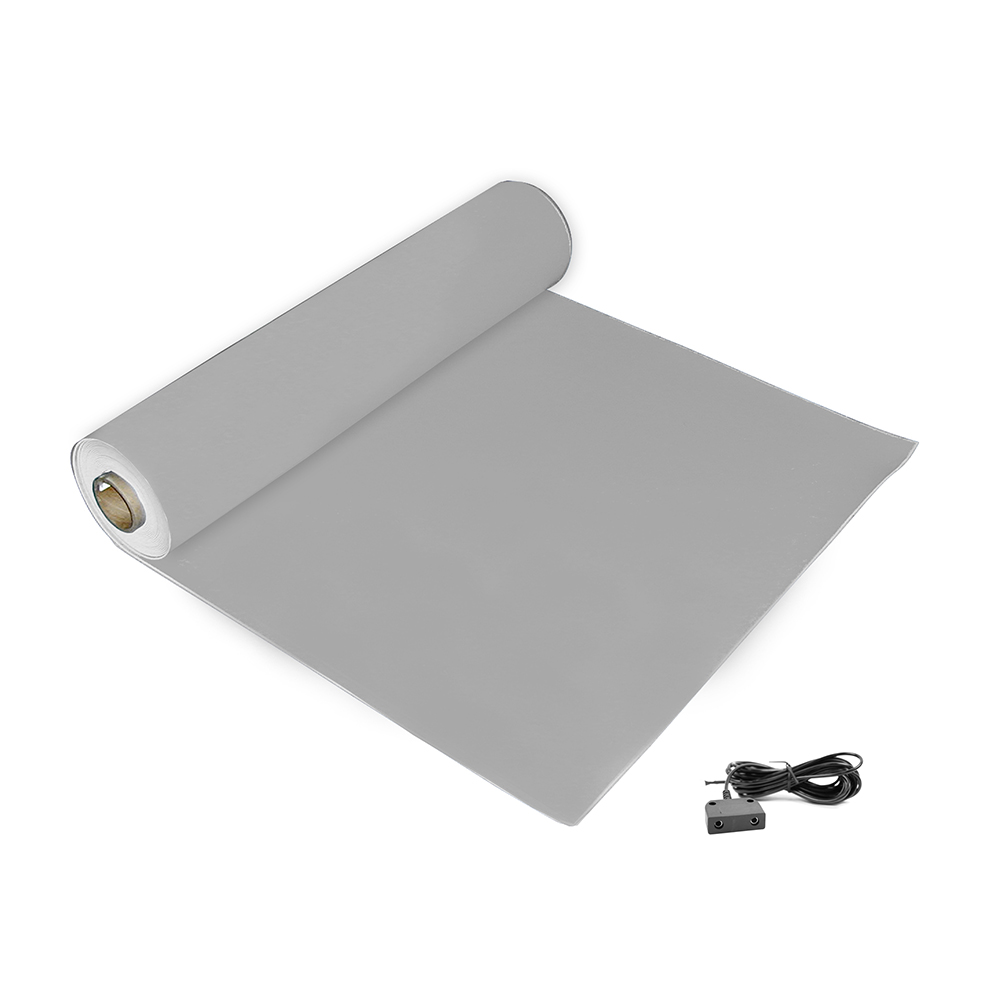

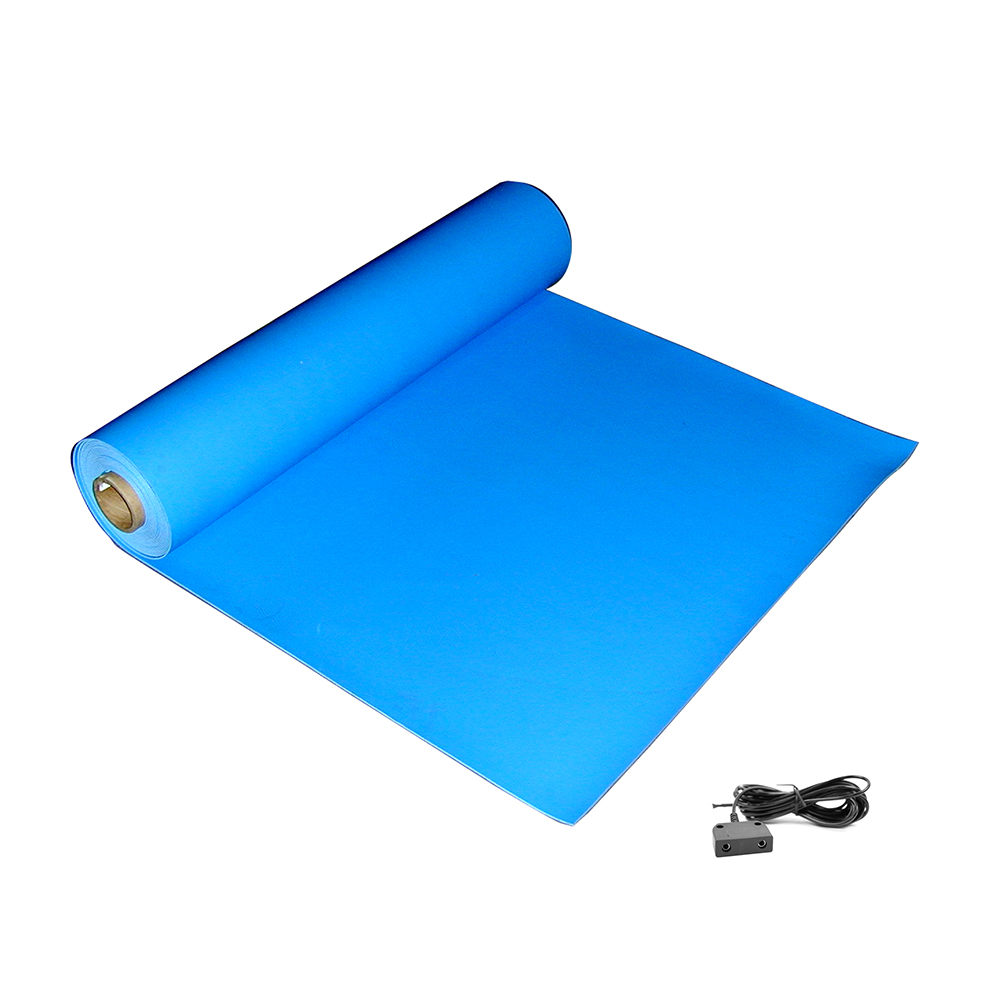

VinylStat C Homogeneous Vinyl ESD Table Mat is a single layer vinyl work surface mat for general use anti-static applications.
VinylStat C creates an ESD safe work area by a providing a path-to-ground for electrical charges as well as protecting the work surface from damage from wear and tear. Soldering is not recommended on this material. WE suggest the MT4500 ESD Rubber worksurface.
A homogeneous polymer mix construction with unsurpassed electrical properties, gives VinylStat C a consistent, controlled static drain and physical properties with highest level of protection.
Available in 0.093″ or in a thinner 0.0625″ thick version: VinylSTAT D.
Resistant to degradation by inorganic acids, organic acids, reducing agents, detergent solutions, alcohols, aliphatic hydrocarbons, mineral oil, amines, and aldehydes.
