VinylStat B - 3 Layer ESD Table Mat w/ Foam Back
- ESD Protection: VinylStatB provides excellent ESD-safe workstation for component safety and operator comfort in general use application.
- CUSHION: Bottom foam layer provides extra cushion for component safety and operator comfort.
- CONSTRUCTION: Made with three layers vinyl with excellent ESD protection: dissipative top, conductive middle and a foam bottom layer
- DURABLE: Resistant to degradation by acids, reducing agents, detergent solutions, alcohols, aliphatic hydrocarbons, mineral oil, amines, and aldehydes.
- COLORS: Light Blue or Gray

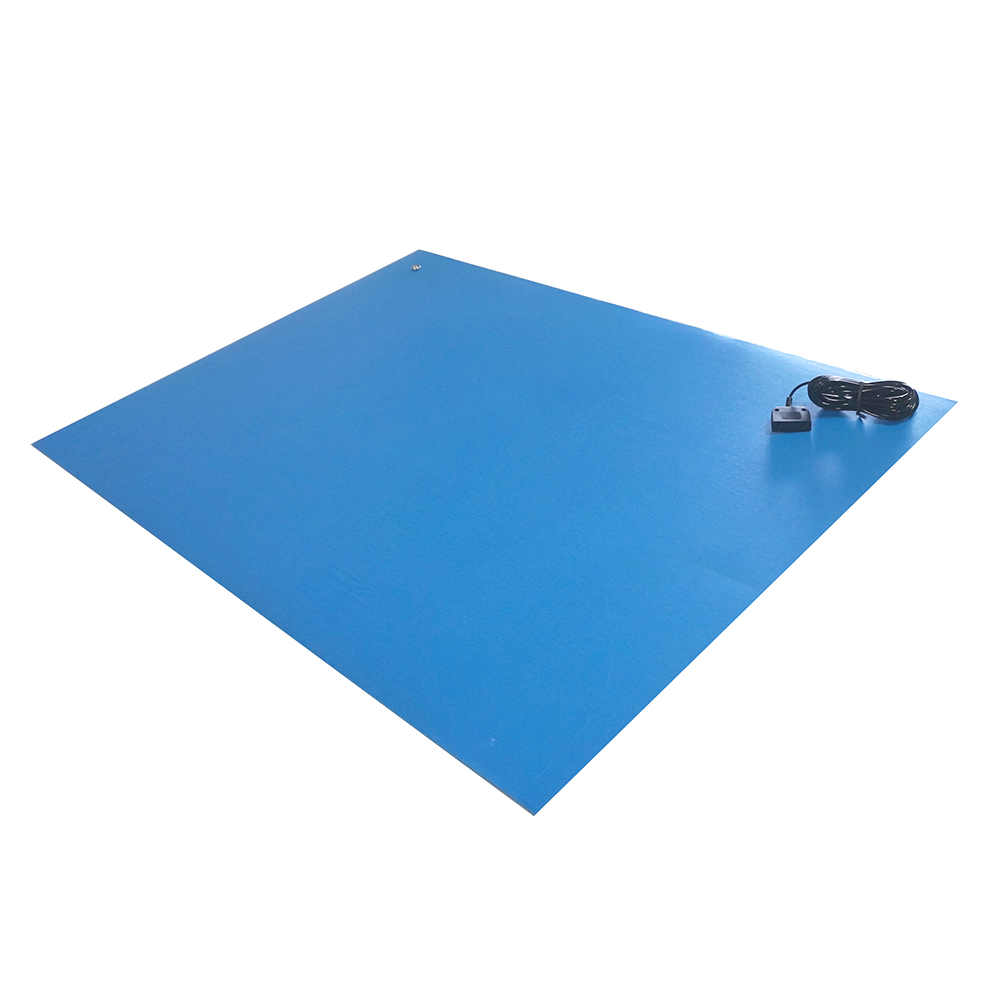

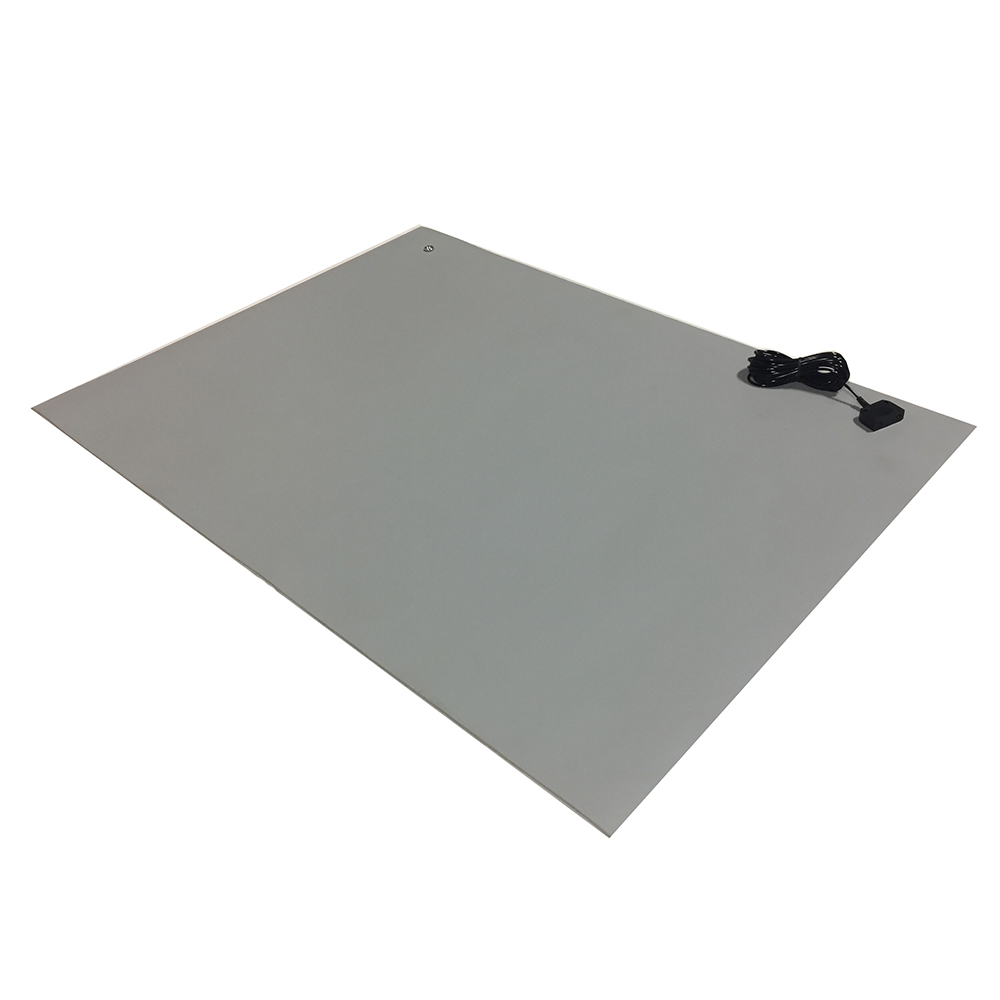

- OPTIONS: Available in rolls or cut mats
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| COO | USA |
| HTS Code | 3918.10.2000 |
| ECCN | EAR99 / NLR |
| Color | Blue, Gray |
| Mat Layers | 3 |
| Mat Material | Vinyl |
| Mat Surface | Emboss – KidGrain |
| Mat Thickness | 0.125in |
| Industry | Automotive, Computer, Electronic Assembly, Parts Assembly, Quality Control, Anti-Static, Industrial, General Use, Grounding, Safety |
| Resistance | Less than 10^8 |
| Resistance Category | Dissipative |
| Standards | ANSI/ESD S4.1 – Worksurfaces |
| Mat Width | 24", 30", 36", 48" |
| Mat Length | 36", 48", 60", 72", 50' |
VinylStatB 3 Layer ESD Table Mat w/ Foam Back provides extra cushion and ESD protection for general use applications.
VinylStatB provides excellent ESD-safe workstation with some light cushion for component safety and operator comfort. The VinylStatB is a three layer mat, consisting of a conductive metalized fleece sandwiched between a solid, dissipative top surface and a foam, base layer.
• ESD Mat with Cushioning Protects Dropped or Mishandled Items
• Vinyl Mats that is Excellent for General Use ESD Applications – Soldering is not recommended
• Surface resistivity is 10^7 – 10^8.
• Blue or Gray

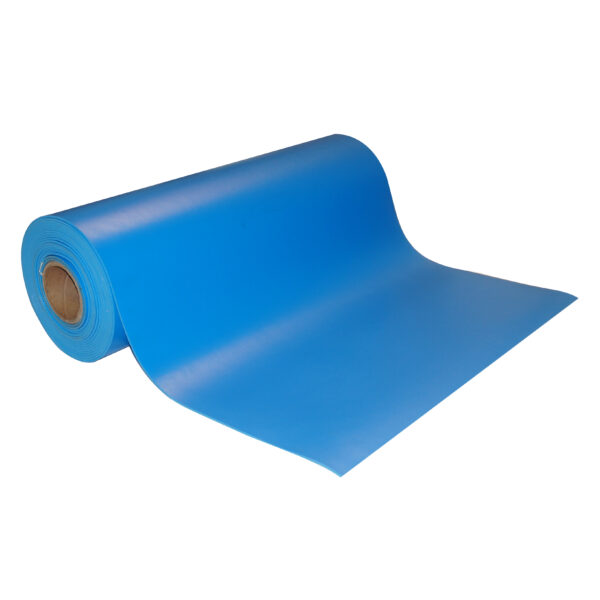

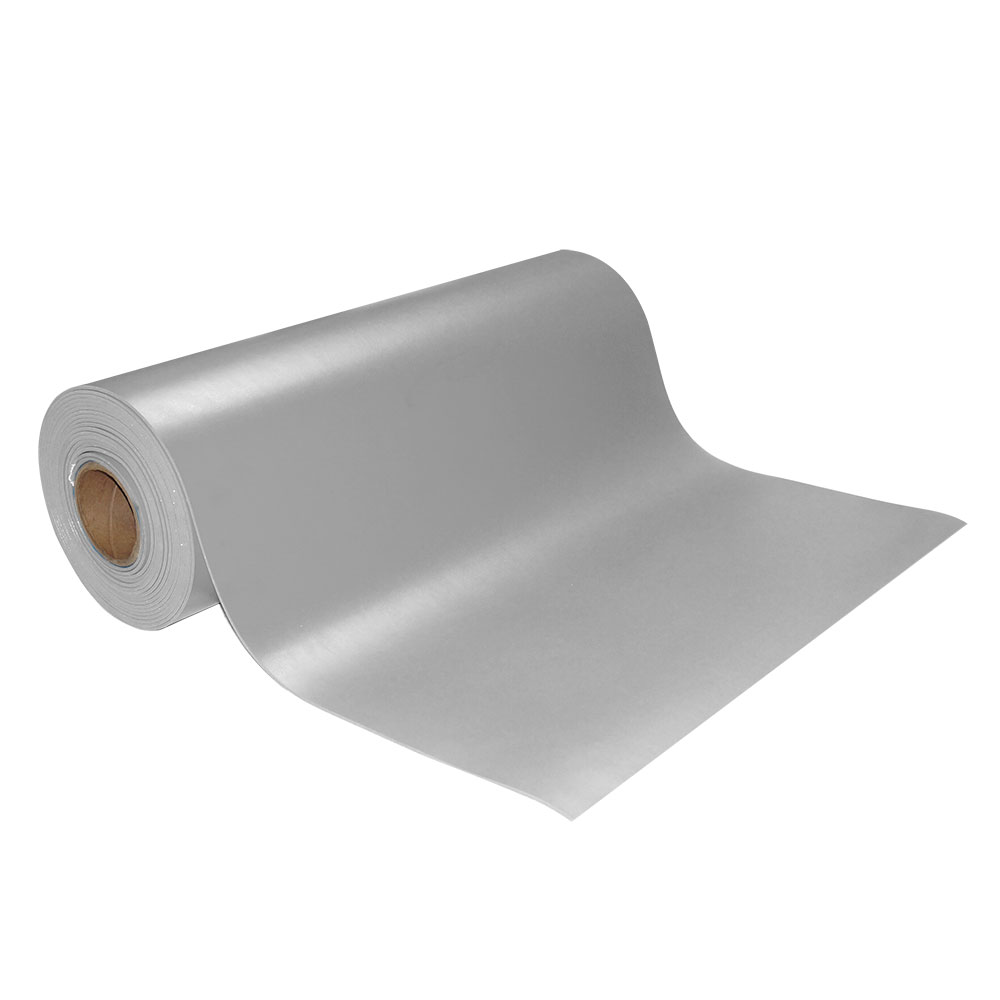

• Available in 50 ft Rolls or an Assortment of Pre-Cut Lengths.
Meets or exceeds requirements of ANSI/ESD S20.20 per ANSI/ESD STM4.1
