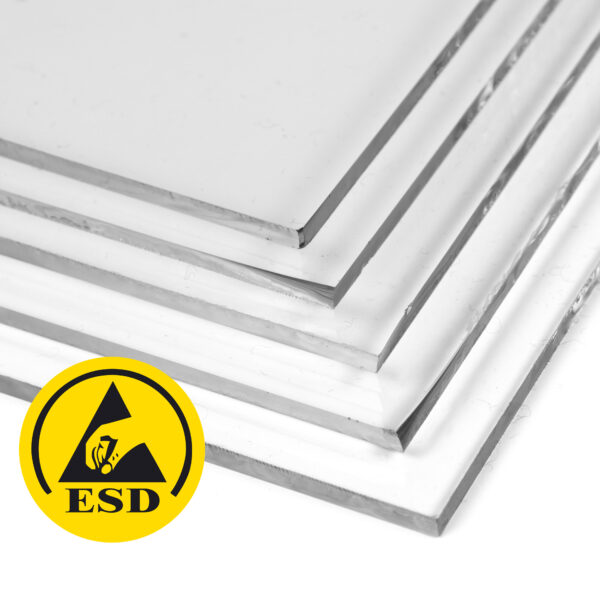

PC-300™ Polycarbonate Static Dissipative Plastic Sheet

  • PERMANENT: Permanent static dissipation performance avoids cost of application of temporary topical anti-stats.
  • NO TRIBOCHARGING: When properly grounded, the sheet cannot be tribocharged and prevents build-up of static charge and accumulation of harmful contamination.
  • SURFACE RESISTIVITY: Surface resistivity of 10^6 - 10^8 ohms per square. Provides for ESD control without the need for ionization.
  • UNIFORM SURFACE TREATMENT: Avoids conductive discontinuities (charged “hot spots”) often found with non-uniform temporary topical anti-stats.
  • SUPERIOR IMPACT & CHEMICAL RESISTANCE: Provides exceptional shatter resistance for safety and reduces risk of solvent or chemical surface damage.
  • APPLICATIONS: Guards, covers, windows, doors, and access panels for electronic equipment, assembly machines and instruments; conveyor line covers; transparent room partitions; process equipment enclosures; and mini environment glazing panels
  • GENERAL INDUSTRIAL USES: Protection for static charge sensitive manufacturing devices and control of spark discharge in explosive environments.
  • TINTS: Available in clear (Transparent gray, bronze tints and other colors are available by special order)
  • TOLERANCE: Tolerance Thickness: +/- 0.006", Tolerance L&W: +/- 0.032"
SKU: PC300C
Price: $123.48 – $2,081.78
Add to quote
PC-300™ Polycarbonate Static Dissipative Plastic Sheet

PC-300™ Polycarbonate is a plastic sheet product designed to control static electricity for a wide range of end uses. It is a premium quality polycarbonate sheet which has been coated with SciCron Technologies proprietary, clear, C-300™ static dissipative coating. This unique technology prevents charge generation on the sheet surfaces, thereby controlling particulate attraction and preventing electrostatic discharge (ESD) events. This performance is permanent and totally independent of humidity. PC-300 Polycarbonate offers exceptional design versatility since it fabricates simply, is light in weight and is available in large sheet sizes. It also exhibits superior impact resistance and flame spread properties, plus excellent clarity, chemical resistance, and mar resistance.

Applications

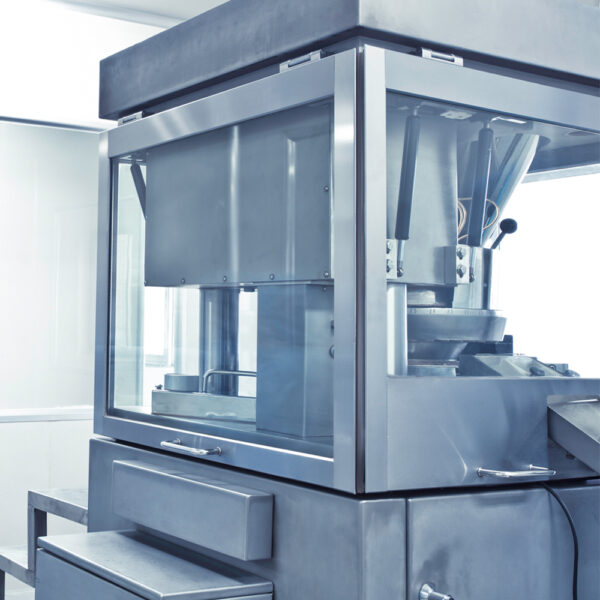

PC-300™ Polycarbonate resists tribocharging under all circumstances and cannot generate a charge when properly grounded. This makes it ideal for use in manufacturing and assembly operations for charge sensitive electronic components where it can help prevent both immediate and latent ESD caused defects. Since it resists charge build-up, it does not attract contaminants, so it can also help prevent contamination related rejects in ultra-clean manufacturing operations. Consequently, it is suitable for use in the semi-conductor, electronic, micromanufacturing, and mining industries. Typical applications include; guards, covers, windows, doors, and access panels for electronic equipment, assembly machines and instruments; conveyor line covers; transparent room partitions; process equipment enclosures; and minienvironment glazing panels. The product also has many general industrial uses, including protection for static charge sensitive manufacturing devices and control of spark discharge in explosive environments.

Fabrication
PC-300™ Polycarbonate is easily fabricated into flat surface configurations using the same equipment and fabrication techniques generally employed with uncoated polycarbonate sheet products. It should not be used for heat formed bent configurations since the hard, cured C-300 coated surface is not designed for heat bending. When solvent welding, it is necessary to remove the C-300 coating mechanically to achieve a good bond. For more information on fabrication refer to SciCron Technologies Technical Information Bulletin No. SP-01.
