Showing all 203 results

ESD Jackets: Medium Weight 9010 Fabric, Lapel Collar, Three Snap Adjustment Sleeve

9010-esd-jacket-collar-snap-cuff-model-blue-all-colors
More Info Select options

ESD Jackets: Medium Weight 9010 Fabric, ESD Knit Cuff

9010-esd-jacket-collar-knit-cuff-model-blue-all-colors

Medium weight ESD jacket with ESD Knit Cuffs perfect for all working environments.

Transforming Technologies 9010 Series ESD Jackets provide high-quality ESD protection at a great value! 9010 Series jackets are fabricated from light weight 90% polyester and 10% carbon fabric for unmatched operator comfort. Features a snap-front closure, ESD knit cuffs, three roomy patch pockets and lapel style collar. The 9010 Series garment maintains consistent continuity readings after 100 wash cycles. Available in blue, black, white, teal and maroon.

Hands-Free Grounding

The ESD knit cuffs allow for hands-free grounding. Connect an anti-static wrist strap to the  snap inside of left knit cuff and ground the jacket with a coil cord by connecting it to the snap on the left hip pocket.

Certified Level 3 ESD Jacket

The 9010 Series ESD Jackets have been independently tested and proven to meet the requirements for all three ESD garment categories defined by ANSI/ESD S20.20-2014 including the Groundable Static Control Garment System which is the most stringent of the garment resistance requirements.  Read the ESD Garment Test Report.
Meets or exceeds requirements of ANSI ESD-S20.20 and the recommendations of ESD 4.1.

Cleaning / Washing

Machine Wash Warm. Do Not Bleach. Do Not Add Detergent or Softener. Cool Tumble Dry or Hang. Remove Promptly. Surfactants such as laundry detergent and fabric softeners can chemically break down the black carbon static shielding fabric woven into ESD smocks and lab coats. Do not add them to wash.

More Info Select options

ESD Jackets: Lightweight 8812 Fabric, Lapel Collar, Knit Cuff

8812-collar-knit-cuff-light-blue-man-all-colors

Lightweight, breathable fabric makes this jacket perfect for warm environments and ESD Knit Cuffs allow for hands-free grounding.

The 8812 Lapel Collar jackets are fabricated from light weight 88% polyester and 12% carbon fabric for unmatched operator comfort. Excellent for warm environments. Superior workmanship provides reliable panel to panel continuity. The JKC Series 8812 jackets maintains consistent continuity readings for up to 100 wash cycles. Available in light blue, maroon and white.

Hands-Free Grounding
Knit Cuff “Hands-Free” Smocks are worn with wrist straps attached inside the left hand cuff, and coil cords for the wrist strap attached to the left hip pocket. The wrist strap is connected to the coil cord at the snap via a “dedicated ground seam” lining the inside of the left arm down the left torso to the snap. This frees the hands from dragging cords across nearby objects. The coil cord for the wrist strap can then be attached to a bench mount ground, common point ground, constant monitor, or free standing ground.

Cleaning / Washing

Machine wash warm. Do not bleach. Do not add detergent or softener. Cool tumble dry or hang. Remove promptly. Surfactants such as laundry detergent and fabric softeners can chemically break down the black carbon static shielding fabric woven into ESD smocks and lab coats. Do not add them to wash.

More Info
Select options

ESD Jackets: Lightweight 8812 Fabric, V-Neck Collar, ESD Knit Cuff

Light Weight ESD Jacket Vneck Knit Cuff

A lightweight and breathable V-Neck ESD jacket that keeps you cool and protected while you work and ESD Knit Cuffs allow for hands-free grounding.

The JKC Series 8812 V-Neck Collar jackets are fabricated from light weight 88% polyester and 12% carbon fabric for unmatched operator comfort. Superior workmanship provides reliable panel to panel continuity. The JKC Series 8812 jackets maintains consistent continuity readings for up to 100 wash cycles. Available in light blue, maroon and white.

Hands-Free Grounding
Knit Cuff “Hands-Free” Smocks are worn with wrist straps attached inside the left hand cuff, and coil cords for the wrist strap attached to the left hip pocket. The wrist strap is connected to the coil cord at the snap via a “dedicated ground seam” lining the inside of the left arm down the left torso to the snap. This frees the hands from dragging cords across nearby objects. The coil cord for the wrist strap can then be attached to a bench mount ground, common point ground, constant monitor, or free standing ground.

Cleaning / Washing

Machine Wash Warm. Do Not Bleach. Do Not Add Detergent or Softener. Cool Tumble Dry or Hang. Remove Promptly. Surfactants such as laundry detergent and fabric softeners can chemically break down the black carbon static shielding fabric woven into ESD smocks and lab coats. Do not add them to wash.

More Info
Select options

Ptec™ IN6430 Ionizing Blow Off Gun

IN6430

Best-In-Class Design creates precision ionizing performance

Transforming Technologies’ IN6430 ionizing air gun is a superior static eliminating device that integrates best-in-class AC performance and ergonomic design features into a superior and affordable package. The IN6430 works twofold as a forceful blow off gun that easily removes particulate from surfaces and as a neutralizer to remove the charges responsible for the attraction of contaminants to product surfaces.

Typical AC ionizing guns require stiff and bulky high voltage (HV) cables to connect the gun to the power supply. The IN6430 integrates the air and HV cables into one, durable, easily to flex cable.

Ptec™ Stability
The IN6430 uses Ptec™, a specialized piezoceramic technology, to create a high-frequency AC ionizing output with exceptional balance and decay performance. We eliminate high voltage cables by locating the power supply in the ionizing gun handle. Our OSHA compliant emitter nozzle protects both the operator and ionizer. Emitter contamination and wear are virtually non-existent with AC ionizing guns.

Performance:IN6430 Ionizing Performance
The In6430 is rated to reduce 1000volts to 100volts in 2 seconds at a distance of 12in from charged surface.  The closer to the charged surface, and the higher the PSI, the faster the decay times.  Different configurations of air pressure and distance can create the best static eliminating performance for your application.

Accessories:
FL0030 Hollow Fiber Micro Filter
The FL0030 micro filter features a hollow fiber membrane that provides excellent filtration and has a long service life. The compact design is easy to install and comes with quick release connections for fast replacement. All materials used are compatible for the most stringent applications.
Learn more about the FL0030 here.

Output Nozzle Tips
Change the airflow from the IN6430 gun to handle unique and difficult point-of-use ionization applications with interchangeable nozzle tips. Wide angle, long range, bendable, luer lock or manifold tips may be substituted depending on the application. Learn more about the Output Nozzle Tips here.

Applications:
The IN6430 is designed to neutralize electrostatic charges in personal bench top environments, sensitive materials assembly, SMT, Electronics Assembly, Automotive packaging, clean room and laboratory environments.

More Info Add to cart

Add to quote

Warmbier EFM51WT Field Meter Walking Test Kit

wolfgang-warmbier-7100-efm-51-wt-walking-test-kit

A hand-held meter used to test the performance of ESD floors in combination with a person per ANSI/ESD STM 97.2. and IEC Standard 61340-4-5.

The electrostatic charge of a person walking on an ESD safe floor with ESD safe footwear can be measured with the EFM51WT Walking Test Kit. This test provides measurement data on the actual charge on a person while walking which is used to determine the effectiveness of the floor/footwear grounding system.

The EFM51 holds the PEAK value of the measured body voltage, as well as the LIVE static voltage measured on the operator’s body.

The kit includes the EFM51 static field meter, walking test adapter plate, hand probe and conductive carrying case.  The EFM51 is a fully function field meter that in addition to the Walking Test, measures and detects electrostatic fields, surface potentials and discharge times (with optional charge plate accessory – p/n 7100.EFM51.CPS.SET.)

Product Video

Below is the procedure for the EFM51 walking test.

Prepare the EFM51

  1. The EFM should be placed into the grounded foam base that is on a flat surface near the floor to be tested.
  2. Hold the function button until “change mode” appears.  Press the button until “Max Value” appears (This is 6 button presses). This mode will becomes active in 2seconds.
  3. Hold the probe in one hand and perform the walking test:

The operator walks on the floor section in a six-step pattern and comes to rest with both feet on the floor specimen in front of the EFM meter. The step pattern requires forward and backward steps and a cross over step:walking test pattern for esd tests

Perform the test three times and record the results.



Reading the meter:

  1. The upper display line indicates the maximum positive and negative body voltage generated on the person when walking.
  2. The lower line indicates the minimum body voltage on the person.

Understanding the measurements:

Two sets of measurements are obtained during the procedure. The first measures voltage generation during the walking cycle and is defined as the Maximum Body Voltage. The second measures the voltage obtained at the end of the cycle with both feet on the floor specimen and is defined as the Minimum Body Voltage.



Request A Walking Test Floor Assessment

Contact Transforming Technologies today. You can also send us an email by filling out the request form below.



More Info
Add to cart

Add to quote

Ptec™ IN5110 Bench top Ionizer

in5110-bench-top-ionizing-blower

Benchtop Blower Ptec™ IN5110
The Ptec™ IN5110 68KHz AC benchtop air ionizer is a small, efficient static elimination device with variable fan speed for protecting electronic components and general static protection. Using AC corona technology, to make the air more conductive, Ptec™ ionizers produce a balanced stream of positive and negative air ions that never need calibration. These devices are used in many industries and manufacturing applications where static electricity is a problem.

About Ptec™ Technology
A specialized piezoelectric high voltage transformer makes Ptec™ ionizers among the most reliable ionizers manufactured. Small, lightweight and stable, Ptec™ products are designed to remain in balance and to alarm when the HV output affects performance. The model IN5110 benchtop static eliminator produces a 68KHz AC output of approximately 2200V and a continuous stream of balanced air ions. Ionizers that use Ptec™ technology do not require calibration and only minimal maintenance.

Features
On the front panel of the IN5110 are two LEDs. The green LED indicates that power is applied to the unit. The red LED is illuminated when an alarm condition occurs. A variable fan speed control, on-off switch, and removable finger guard are also on the front panel.The rear panel of the ionizer has the 24 VDC power input connector and a grounding point.

  • Physically small and light.
  • Rapidly decays static charges.
  • Excellent ion balance and ionization performance.
  • Ionization (green) and HV alarm (red) lights.
  • No periodic adjustments.
  • Durable, replaceable tungsten alloy emitter points.
  • Removable front grill. Adjustable air volume.

Power Requirements
The IN5110 can work on all power circuits, from 100-240volts, without any adjustments. This means the standard ionizer can be used in many different countries and power circuits and performance will not be affected.

Verification and Calibration:
The IN5110 ionizer comes factory calibrated and with a calibration certificate.  Ionizer performance can be tested and verified with a
charge plate monitor. Important tests to perform are positive and negative decay times and ion balance. It is recommended to test ionizer performance at least 1 per year.

More Info Add to cart

Add to quote

GL4500P – ESD Nylon Inspection Gloves – Palm Coated

gl45-esd-inspection-gloves-coated-palms-lg

Palm coated ESD inspection gloves protect sensitive electronics during assembly and inspection.

Transforming Technologies ESD inspection gloves are designed to be worn when handling ESD susceptible items. They are made with a dissipative nylon to reduce charge generation. Polyurethane coated palms allow for excellent grip and increases breathability. A seamless fine gauge knit, a finished rolled cuff and uncoated back are designed for comfort and breathability. The ESD inspection gloves may be laundered for repeated use. Sold in packs of 12 pairs. NOTE: Sizes run small because they are meant to fit tightly for improved dexterity.

Specifications:

  • Fabric : Nylon and Conductive Carbon.
  • Palm Coat: Micro-Foamed Polyurethane Coating.
  • Cuff: Finished Rolled Cuff.
  • Sold in packs of 12, 1 size per pack.
  • Resistance: 10^6 – 10^8 per ANSI/ESD SP15.1.

Application and Usage
Semiconductor, SMT Assembly, Disk Drive. Applications that require handling of ESD sensitive items.

Care Instructions
The ESD inspection gloves may be laundered for repeated use.

  • Mild detergent only.
  • Use less detergent than for regular load of clothing.
  • Do not use dish soap.
  • Do not bleach.
  • Do not put in the dryer.

Product Numbers

ItemDescriptionSales Unit
GL4501ESD Inspection Gloves, Plain, X-SmallPack of 12 Pairs
GL4502ESD Inspection Gloves, Plain, SmallPack of 12 Pairs
GL4503ESD Inspection Gloves, Plain, MediumPack of 12 Pairs
GL4504ESD Inspection Gloves, Plain, LargePack of 12 Pairs
GL4505ESD Inspection Gloves, Plain, X-LargePack of 12 Pairs
GL4506ESD Inspection Gloves, Plain, 2X-LargePack of 12 Pairs

More Info
Select options

GL4500D – ESD Nylon Inspection Gloves – Dot Covered Palm

gl45-esd-inspection-gloves-pvc-palm-dots

Dotted palm ESD inspection gloves protect sensitive electronics during assembly and inspection.

Transforming Technologies ESD inspection gloves are designed to be worn when handling ESD susceptible items. They are made with a dissipative nylon to reduce charge generation. PVC dots cover the palm side of the gloves which allow for excellent grip with maximum breathability. A seamless fine gauge knit, a finished rolled cuff and uncoated back are designed for comfort and breathability. The ESD inspection gloves may be laundered for repeated use. Sold in packs of 12 pairs. NOTE: Sizes run small because they are meant to fit tightly for improved dexterity.

Specifications:

  • Fabric : Nylon and Conductive Carbon.
  • Dotted Palms: Micro-Foamed Polyurethane Coating.
  • Cuff: Finished Rolled Cuff.
  • Sold in packs of 12, 1 size per pack.
  • Resistance: 10^6 – 10^8 per ANSI/ESD SP15.1.

Application and Usage
Semiconductor, SMT Assembly, Disk Drive. Applications that require handling of ESD sensitive items.

Care Instructions
The ESD inspection gloves may be laundered for repeated use.

  • Mild detergent only.
  • Use less detergent than for regular load of clothing.
  • Do not use dish soap.
  • Do not bleach.
  • Do not put in the dryer.

Product Numbers

ItemDescriptionSales Unit
GL4501DESD Inspection Gloves, Dot Covered Palm, X-SmallPack of 12 Pairs
GL4502DESD Inspection Gloves, Dot Covered Palm, SmallPack of 12 Pairs
GL4503DESD Inspection Gloves, Dot Covered Palm, MediumPack of 12 Pairs
GL4504DESD Inspection Gloves, Dot Covered Palm, LargePack of 12 Pairs
GL4505DESD Inspection Gloves, Dot Covered Palm, X-LargePack of 12 Pairs
GL4506DESD Inspection Gloves, Dot Covered Palm, 2X-LargePack of 12 Pairs

More Info
Select options

Warmbier Walking Test Kit WT5000 Electrometer

wolfgang-warmbier-WT5000-esd-walking-test-kit-web

Test and graph the performance of ESD floors in combination with a person per ANSI/ESD STM 97.2. and IEC Standard 61340-4-5.

The WT5000 Walking Test Kit has been designed to perform a voltage measurement of floor materials and footwear in combination with a person according to ANSI/ESD STM 97.2. and IEC Standard 61340-4-5. This test will evaluate the performance of the floor / footwear system. This test is of special importance when the floor / footwear system is used as a primary means for grounding personnel.

Product Video

Analysis Software

The WT5000 is supplied with easy to use analysis software, you can save, load, zoom, measure, print and export test results.  The WT5000 can display live tests measurements via a Windows PC and via the LEDs on the front panel of the instrument.

WT5000 Software





Specifications

  • Test range: ± 5000 volts
  • Accuracy: 5% of measured value
  • Input impedance: > 10^14 Ohm
  • Input capacity: < 5 pF
  • Response time: <= 10 ms
  • Display: Logarithmic LED-display ± 500 V, changeable to ± 5000 V with Peak Hold function
  • Output: Analog ±5V DC for each range
  • Power supply: Rechargeable batteries
  • Complies with IEC 61340-4-5

The Walking Test

The operator walks on the floor section in a six-step pattern and comes to rest with both feet on the floor specimen in front of the EFM meter. The step pattern requires forward and backward steps and a cross over step:walking test pattern for esd tests

Perform the test three times and the WT5000 will measure the results.  Save each test for recording purposed.

Supplied with:

WT5000 Electrometer, A/D-converter with software Digilloscope, rechargeable batteries, power supply, handheld electrode, connecting cables, conductive carrying case, user’s manual, calibration certificate



Request A Walking Test Floor Assessment

Contact Transforming Technologies today. You can also send us an email by filling out the request form below.
More Info
Add to cart

Add to quote

Ptec™ IN3425 AC Ionizing Nozzle

in3425-esd-ionizing-nozzle

The IN3425 is a versatile ionizing air nozzle that can handle many unique, narrow area applications with ease.

The Ptec™ IN3425 ionizing nozzle is a small, mountable ionizer that can quickly remove static in hard to reach areas that most ionizers. With their small size, the IN3425 narrow area ionizing nozzle can be used to eliminate static electricity from a focused point. Combined with a high air supply pressure, the spot-type static eliminators can be used to blow off dust and contaminates, separate clinging materials all while eliminating static electricity.With a variety of tip attachments, the IN3425 can be used in varying configurations in focused areas.

The ionizer constantly produces ions when on but there is a version with a photoelectric eye will produce airflow when objects are in proximity of the sensor: model number IN3425PE.
About Ptec™ Technology
A specialized piezoceramic high voltage transformer drives the technology making Ptec™ ionizers among the most reliable ionizers available. The model IN3425 air ionizing nozzle produces a 68KHz AC output of approximately 2200V and a continuous stream of balanced air ions. The IN3425 works efficiently with clean dry air (CDA) and nitrogen (N2) and is capable of 100 psi input. Stable, small and free from EMI, the IN3425 is equipped with auto ion balance and will alarm if the high voltage output fails.

Maintenance Savings
Ptec™ ionizers save time and money because they require no calibration. Emitter life is increased and maintenance frequency is reduced, due to 68KHz AC ion emission.  The emitter tip can be cleaned with isopropyl alcohol and a clean cloth periodically to maintain performance.

Power Requirements
The IN3425 can work on all power circuits, from 100-240volts, without any adjustments. This means the standard ionizer can be used in many different countries and power circuits and performance will not be affected.

Accessories:
FL0020 Hollow Fiber Micro Filter
The FL0020 micro filter features a hollow fiber membrane that provides excellent filtration and has a long service life. The compact design is easy to install and comes with quick release connections for fast replacement. All materials used are compatible for the most stringent applications.  Learn more about the FL0020 here.

Output Nozzle Tips
Change the airflow from the IN3425 nozzle can handle unique and difficult point-of-use ionization applications with interchangeable nozzle tips. Wide angle, long range, bendable, luer lock or manifold tips may be substituted depending on the application. Learn more about the Output Nozzle Tips here.

Verification and Calibration:
The IN3425 nozzle comes factory calibrated and with a calibration certificate.  Important tests to perform are positive and negative decay times and ion balance. Ionizers can be verified with a charge plate monitor.



More Info Add to cart

Add to quote

GL4500T – ESD Nylon Inspection Gloves – Finger Tip Coated

gl45-esd-inspection-gloves-coated-finger-tips

Finger tip coated ESD inspection gloves protect sensitive electronics during assembly and inspection.

Transforming Technologies ESD inspection gloves are designed to be worn when handling ESD susceptible items. They are made with a dissipative nylon to reduce charge generation. Polyurethane coated figure tips allow for a high level of tactile sensitivity and increases breathability. A seamless fine gauge knit and a finished rolled cuff are designed for comfort. The ESD inspection gloves may be laundered for repeated use. Sold in packs of 12 pairs. NOTE: Sizes run small because they are meant to fit tightly for improved dexterity.

Specifications:

  • Fabric : Nylon and Conductive Carbon.
  • Finger Tip Coat: Micro-Foamed Polyurethane Coating.
  • Cuff: Finished Rolled Cuff.
  • Sold in packs of 12, 1 size per pack.
  • Resistance: 10^6 – 10^8 per ANSI/ESD SP15.1.

Application and Usage
Semiconductor, SMT Assembly, Disk Drive. Applications that require handling of ESD sensitive items.

Care Instructions
The ESD inspection gloves may be laundered for repeated use.

  • Mild detergent only.
  • Use less detergent than for regular load of clothing.
  • Do not use dish soap.
  • Do not bleach.
  • Do not put in the dryer.

Product Numbers

ItemDescriptionSales Unit
GL4501TESD Inspection Gloves, Finger Tip Coated, X-SmallPack of 12 Pairs
GL4502TESD Inspection Gloves, Finger Tip Coated, SmallPack of 12 Pairs
GL4503TESD Inspection Gloves, Finger Tip Coated, MediumPack of 12 Pairs
GL4504TESD Inspection Gloves, Finger Tip Coated, LargePack of 12 Pairs
GL4505TESD Inspection Gloves, Finger Tip Coated, X-LargePack of 12 Pairs
GL4506TESD Inspection Gloves, Finger Tip Coated, 2X-LargePack of 12 Pairs

More Info
Select options

GL4500 – ESD Nylon Inspection Gloves – Uncoated

gl45-esd-inspection-gloves-un-coated-lg

Uncoated ESD inspection gloves protect sensitive electronics during assembly and inspection.

Transforming Technologies ESD inspection gloves are designed to be worn when handling ESD susceptible items. They are made with a dissipative nylon to reduce charge generation. A seamless fine gauge knit construction makes it the most breathable glove available. Transforming Technologies’ ESD inspection gloves may be laundered for repeated use. Sold in packs of 12 pairs.

Specifications:

  • Fabric : Nylon and Conductive Carbon.
  • Cuff: Finished Rolled Cuff.
  • Sold in packs of 12, 1 size per pack.
  • Resistance: 10^6 – 10^8 per ANSI/ESD SP15.1.

Application and Usage
Semiconductor, SMT Assembly, Disk Drive. Applications that require handling of ESD sensitive items.

Care Instructions
The ESD inspection gloves may be laundered for repeated use.

  • Mild detergent only.
  • Use less detergent than for regular load of clothing.
  • Do not use dish soap.
  • Do not bleach.
  • Do not put in the dryer.

Product Numbers

ItemDescriptionSales Unit
GL4501ESD Inspection Gloves, Plain, X-SmallPack of 12 Pairs
GL4502ESD Inspection Gloves, Plain, SmallPack of 12 Pairs
GL4503ESD Inspection Gloves, Plain, MediumPack of 12 Pairs
GL4504ESD Inspection Gloves, Plain, LargePack of 12 Pairs
GL4505ESD Inspection Gloves, Plain, X-LargePack of 12 Pairs
GL4506ESD Inspection Gloves, Plain, 2X-LargePack of 12 Pairs



More Info
Select options

GL9100 Series – Static Safe Hot Gloves – Polyester – 14″

gl9100-static-safe-hot-gloves

You can have great static control and heat protection in one cleanroom compatible glove.

Designed for printed circuit boards, hybrid circuits, semiconductors and other processes, the GL9100 series ESD safe hot glove provides static protection without compromising cleanliness. Gloves resist heat up to 302°F or 150°C.

These gloves use a polyester knit fabric suffused with carbon fiber. Heat protection is enhanced with a 100% inner tricot knit polyester fabric liner and a full 14 inch length. A cuff mounted grounding snap is also included.

Specifications:

  • Fabric : Polyester knit fabric suffused with carbon fiber.
  • Inner Liner: 100% inner tricot knit polyester fabric.
  • Length: 14in
  • Temperature: Resists up to 302F (150C)
  • Electrical RTT: < 1 x 10^10 Ohms/Sq.
  • Low tribocharging: typical results less than 300 volts

Application and Usage
Semiconductor, SMT Assembly, Disk Drive. Applications that require thermal glove protection, static and contamination control.

Care Instructions
The ESD inspection gloves may be laundered for repeated use.

  • Mild detergent only.
  • Use less detergent than for regular load of clothing.
  • Do not use dish soap.
  • Do not bleach.
  • Do not put in the dryer.

Product Numbers

PK!q9+p Û[Content_Types].xml ¢×( ̔MNÃ0…÷HÜ!ò%n‹„jÚ?K¨Àؓƪc[·´·g’Ð
PˆTÒ›DQ4ï½ùfìé|[™dµ³9g#–€•Ni»ÌÙëËCzÍŒÂ*aœ…œíÙ|v~6}ÙyÀ„ª-欌ÑßpŽ²„J`据¸t6‚i¬5ØlúD‚V,Dˆ¢"¾5<’´ÏqFz,¹m kïœ ï–"Rr¾±ê‡kêŠBKPN®+òʱ‹Z…ÿjˆqg[¡ –±2Y+ºw¾ƒB¬MLî·D …Ààq­}Ą̂²iKí±Ç¡Ÿ]?“wVoέNM¥¦“UBÛ}î®% é-‚óÈiփ@\J=IBˆ̺¼iëޛ1"o^“Á¾¯ÆA¿AGŽË’cø©ü,EõÝR'?®_µûærØMé?ý®«;6’7÷ëìÿÿPK!µU0#õL Î_rels/.rels ¢Ê( Œ’ÏNÃ0 ÆïH¼CäûênH¡¥»LH»!TÀ$£$@÷ö„‚JcÛÑöçÏ?[ÞîæiTb/Nú(A±3b{×jx­ŸV b"giÇŽaWÝÞl_x¤”›b×û¨²‹‹º”ü#b4O ñìr¥‘0QÊahѓ¨eܔå=†¿P-<ÕÁj{ª>ú<ù²·4Mox/æ}b—NŒ@ž;ËvåCf ©ÏÛ¨šBËIƒóœÓÉû"cž&Ú\Oôÿ¶8q"K‰ÐHàó<ߊs@ëë.Ÿh©ø½Î<⧄áMdøaÁÅT_ÿÿPK!Þ ý(Ôxl/_rels/workbook.xml.rels ¢( ¼“ÏjÃ0 ÆƒÑ}q’ne”:½ŒA¯[÷&QâÐÄ6–ö'o?“Cº@É.¡ƒ$ü}?Чýá§ïÄjU%)´¥«ZÛ(ø8½><ƒ ֶҝ³¨`@‚Cq·ÃNsüD¦õ$¢Š%†Ù襤Ò`¯)qmœÔ.ôšcéuyÖ
Ê
õ’ýãšöO /îc)ÇwڇœÝbñ ÿÿPK!SöóÐ_rxl/workbook.xmlŒRÑNÂ0}7ñš¾Ë¶²!l$F¼žëzǺvi‹ƒ¿÷v„‰ÑŸî½½g§çœn±<6Š|‚uÒèœ&£˜Ð¥Rïrú¾~º›Qâ<ׂ+£!§'ptYÜÞ,:c÷Æì h—ÓÚûvE®¬¡ándZи©Œm¸ÇÑî"×ZàÂÕ¾Q‹ãIÔp©é™anÿÃaªJ–ð`ÊCڟI,(îQ¾«eëh±¨¤‚ÍÙámûÂÔ}T”(îü£DNSM?졽?H¶Y<¥Q1˜|µD@ÅʯÑޅób)c“€ Ql$tîû£0’ãVjaºœ²£=]¦4Î(éúÕV
_ã~–%ÃÙ3È]íÿ,‰}tÅß'ˆ÷ô•èÞÞ[H5Á§
u…°·s‰]‰$0üB³+4öšý‰_¡±Ðã^]OŽ’J®JÌ*”^˦,ë—ߥøÿÿPK!é¦%¸‚Sxl/theme/theme1.xmlìYOoÛ6¿Øw tom'¶uŠØ±›­MÄn‡i™–XS¢@ÒI}Úã€úa—»í0l+лtŸ&[‡­úöHJ²ËKÒÖՇD"|ÿßã#uõڃˆ¡C"$åqÛ«]®zˆÄ>Ó8h{w†ýK’
ÇcÌxLÚޜHïÚÖûï]ś*$A°>–›¸í…J%›•ŠôaËËACMÒÛʈ÷¼ÆJꟉ&Mœ;žÖ4BÎe— tˆYÛ>c~4$”‡–
&Ú^Õü¼ÊÖÕ
ÞL1µbma]ßüÒué‚ñtÍðÁ(gZë×[WvrúÀÔ2®×ëu{µœž`ßM­,EšõþF­“Ñ,€ìã2ínµQ­»øýõ%™[N§ÑJe±D
È>֗ðÕf}{ÍÁÅ7–ðõÎv·ÛtðdñÍ%|ÿJ«Ywñ2O—ÐÚ¡ý~J=‡L8Û-…o|£šÂ(ˆ†<º4‹ ÕªX‹ð}.úÐ@†‘š'd‚}ˆâ.ŽF‚bÍo\˜±C¾\Ò¼ôMTÛû0Á z¯žÿêùSôêù“ã‡ÏŽþtüèÑñÃ--gá.Žƒâ—ß~öç×£?ž~óòñåxYÄÿúÃ'¿üüy92h!ы/Ÿüöìɋ¯>ýý»Ç%ðmGEøFD¢[äðt3†q%'#q¾ÃSgv éž
à­9fe¸qwW@ñ(^ŸÝwd„b¦h çaä÷8g.J
pCó*Xx8‹ƒræbVÄ`|XÆ»‹cǵ½YU3 JÇöݐ8bî3+˜(¤çø”íîQêØuú‚K>QèELKM2¤#'‹vi~™—é ®vl³wu8+Óz‡ºHHÌJ„æ˜ñ:ž)•‘âˆ
~«°LÈÁ\øE\O*ðt@G½1‘²lÍmúœ~C½*uû›G.R(:-£ys^Dîði7ÄQR†Ð8,b?SQŒö¹*ƒïq7Cô;øÇ+Ý}—Çݧ‚;4pDZˆž™ íK(ÔNýhüwŘQ¨Æ6Þ㶷
[SYJìž(Á«pÿÁ»ƒgñ>X_ÞxÞÕÝwu×{ëëîª\>kµ]X¨½ºy°}±é’£•Mò„26PsFnJÓ'KØ,Æ}ÔëÌ‘䇦$„Ç´¸;¸@`³ ®>¢*„8»æi"LI%\ÂÙÎ —ÒÖxèӕ=6ô™ÁÖ‰ÕÛáu=œ
r2fË Ìù3c´® œ•Ùú•”(¨ý:ÌjZ¨3s«ÑL©s¸å*ƒ—UƒÁܚЅ è]ÀÊM8¢kÖp6ÁŒŒµÝ휹Åxá"]$C<&©´ÞË>ª'e±b. vJ|¤Ïy§X­À­¥É¾·³8©È®¾‚]æ½7ñRÁ /é¼=‘Ž,.&'‹ÑQÛk5ÖòqÒö&p¬…Ç(¯KÝøaÀݐ¯„
ûS“Ùdù›­L17 jpSaí¾¤°S!Õ–¡
3•†‹5'+ÿZÌzQ
ØH
)Ö7 þ5)ÀŽ®kÉdB|UtvaDÛ”σp|„Fl&0¸_‡*è3¦n'LEÐ/p•¦­m¦Üâœ&]ñËàì8fIˆÓr«S4Ëd 7yœË`Þ
ân¥²åߊIù R¥Æÿ3Uô~×ëcínrF:_Û*äP…’ú}ƒ©-p ÓTpŸlþ r¨ÿۜ³4LZéOÐ
û‘
!ûP–LôB¬–î]–$K ™ˆ*ˆ++öˆ6Ô5°©÷v…ꦚ¤eÀàNƟûžfÐ(ÐMN1ߜ’ï½6þéÎÇ&3(åÖaÓÐdöÏE,ÙUíz³<Û{‹Šè‰E›Uϲ˜¶‚Všö¯)Â9·Z[±–4^kd—5†Á¼!JàÒé?°ÿQá3ûqBo¨C~µÁ·M ¢ú’m<.vp“´Á¤IYÓ¦­“¶Z¶Y_p§›ó=al-ÙYü}Ncç͙ËÎÉŋ4vjaÇÖvl¥©Á³'S†&ÙAÆ8Æ|Õ*~xâ£ûàè¸âŸ1%M0Ág%¡õ˜<€ä·ÍÒ­¿ÿÿPK!¸JK-·xl/worksheets/sheet2.xmlŒPÁJÄ0½ þC˜»MWY•¥í",‹õžm'mØ$’YWÿÞ´eÁ‹·yyo^æ½jýå¬øĘ ùE }Kñ}
ïoÛ«{‰•ï”%5|c‚usyQ)îӀÈ";øTÃÀVR¦v@§RA}f4E§8ÃØË"ªnZrV^—å­tÊx˜Vñ?¤µiqCíÁ¡çÙ$¢UœïOƒ šª3™‰ˆº†‡Ȧš¾ý0xL¿f1¦ØíGâ©«¡¥òv;¥x‰¢C­–_éøˆ¦8W¶<»o«¼TÏ*öÆ'aQgMY܁ˆ³~š™Âôº±#fr'4ä‚0Q7 4ŸÀxÖ¹òæÿÿPK!¸JK-·xl/worksheets/sheet3.xmlŒPÁJÄ0½ þC˜»MWY•¥í",‹õžm'mØ$’YWÿÞ´eÁ‹·yyo^æ½jýå¬øĘ ùE }Kñ}
ïoÛ«{‰•ï”%5|c‚usyQ)îӀÈ";øTÃÀVR¦v@§RA}f4E§8ÃØË"ªnZrV^—å­tÊx˜Vñ?¤µiqCíÁ¡çÙ$¢UœïOƒ šª3™‰ˆº†‡Ȧš¾ý0xL¿f1¦ØíGâ©«¡¥òv;¥x‰¢C­–_éøˆ¦8W¶<»o«¼TÏ*öÆ'aQgMY܁ˆ³~š™Âôº±#fr'4ä‚0Q7 4ŸÀxÖ¹òæÿÿPK!cÝ%„xl/sharedStrings.xml¬’1OÃ0…w$þÃÉK—´N“*”¤C!‚¡K¡Àê&Gbɱƒ})åßã
Lã{O÷¾;é²å¡S°Gë¤Ñ9›ÏB¨+SKÝälûPN  ] e4æì[çg™s~V»œµDýç®j±nfzÔ>y1¶ä¥m¸ë-ŠÚµˆÔ)…aÊ;!5ƒÊ š<÷‚Á å뀫o#bEæd‘QqGØeœŠŒõ—w®²²'¿ô8º
lµ¤qR®ça”$‹±¿2º*’{„Í°Û¡…ÇicñºTÆXX
àIR ·ÂÖoÂbÑäLÆM7¢jÇޑ§ÿDÿ¢ Éâ2“Oº+™Ò_w}žã å lŒRøö8úQÏýÿÿPK!‰£õ)š!
xl/styles.xmlÔVێÓ0}Gâ,ñM[ Z É
Vª„+¤-¯N㴖| ŽSÒýú±s[´ÕV€ŠxI<“ñ™‹gŽ_6J’=·•0:¡ó錮7&z›ÐoëÕË J*ÇtΤÑ<¡^ÑËô铸rÉovœ;ºJèιò]U›W¬šš’køR«˜Ñn£ª´œånR2ZÌfËH1¡iëZ­”«ÈÆÔÚA½Š„/ŸrP._Sà®L±<ÿQ÷þYxM^L&³élF£4ŽZ¸4.ŒP_**Ò¸º%{&rŽæ#%ÂP¯ÑLñ`qŤȬ@³‚)!A½@…Ï´µSBë}ᙡUçˇ| ó†CN¸åoy»ïéÏQ#_=H\HÙÍ‹Š4.™sÜê¤]¯%”PC§„Rx»G¬·–æ‹7£
‘w˜Æ™±9tf×è9¨ÒXòÂAå¬ØîðíL ÏÌ8g,rÁ¶F3 ˨Ûѽq't44oBÝÎ7ß/gm†Ñ°õp’½Å‡r’9„ÜE|’}HîáÜÚ$+he.å
&÷½èë†ÃÔ£A‚ǓřÂ%R» 5
–`Œ°G°Ë߂%MÑã j~$(Ðw» +KyXA8±­‰ ÒGß<ƒüAŠ­V¼cë ’±â€ðÌ)Ò¡”7`Ï-%?-+×¼ñΰ0Mq¼¤çþL±^×*ãvå¹|¨é¹êÿXÉÿ_ô—Y˜Â“ãÿ·Çðàx’ZqÏ=æé9„à…”Ðkì!9šä¬Ò ݳÂÀ:€™7ùûÓ± ~;áz/Àa9/X-ݺÿ˜Ðaý…ç¢Vo{«¯boœ‡Hè°þŒWÉ|é©ß_þß&½ÿÿPK!aðU²áÀxl/worksheets/sheet1.xmlŒ”Koœ0F÷•ú,dQ†(j•ª¾ö¸<°©íÌ´ÿ¾×¸Ã`F‰º³¹‡ÏÇæšäþwߑ#(ÝJ‘Ò()QȲuJ|ú°¥D.JÞI)ýšÞgïß%'©žu`&ÒƘaǘ.è¹ä+•T=78U5Ӄ^Ž/õ‹ÃpÍzÞ
êvê2dUµ<Êâ¥a\ˆ‚Žô×M;hš%e‹5»!¢ JéC´ËW”eɸòÏNz6&†¾A…€»±ƒ”Ïü„BLÔ#`õ/?“M¡YrŸxwÿE‘*þҙ¯òôÚº1¸ÒEé‘ž%JžèÛv7”X4^+”(lùÁÖG
v³Ç,LØ/þ{GĔLDä¹#0}"â‰`è1É`ÈRf{Ä ¤ôv–t3%¾{G¬fÄ­Oä×Äj"<~ÛƾÍzJr6Ž˜Ûl|"¿&^±ÁM¿mcßf믵wÄÜæÎ'òkâ YÚlÖ³¶±u_&ZöCæ6Ѳq®‘¥Ž»®£^Ãg®êVhÒA…ÍJ”»ãØÈa|ŠÁiŒìϳÿ€ýøA*)Íy‚÷˜Mÿžì/ÿÿPK!ùruAedocProps/core.xml ¢( Œ’_KÃ0Åß¿CÉ{›¦Ó1BہʞV¾…än+6H¢Ý¾½i»ÕŽùàcî9ùåœKòåA6Ñ7XWkU ’¤(ŵ¨Õ®@oÕ*^ Èy¦k´‚Á¡ey{“sC¹¶ðbµëkpQ )G¹)ÐÞ{C1v|’¹$8T·ÚJæÃÑî°aü“ígi:Ç<Ì3Üc3Ñ )øˆ4_¶é‚ch@‚ò“„à_¯+ݟze┵?šÐéwÊ|G÷ÁÕ£±mÛ¤õ1B~‚7ëç×¾j\«nWP™ N¹æµ-+˔‹*àûOÆÝ
æü:l{[ƒx8^8¯ÕÀì+ `QE‡
gå}öøT­P™¥d“,ÎH•z?£äî£{üâ~rÈS„ÿ4[Lˆg@™ã«QþÿÿPK!œ<»X‹4docProps/app.xml ¢( œ“AOã0…ïHû"ߩӂª#‹8,¢R[ölœIcáڑgˆZ~=“D¥é²{ٜÆóžž>'êf·õY ] …˜Nr‘A°±taSˆõêáüZdH&”ÆDžØŠýãL-Rl ‘Ì8"`!j¢f.%Ú¶',Vª˜¶†ø˜62V•³píûÉYž_IØ„Êóæ+P ‰ó–þ7´Œ¶ã×վa`­n›Æ;kˆo©ŸœMcEÙϝ¯äXTL·ûžíu®äø¨–Öx¸ã`] ä±¡ÁtC[—P«–æ-XŠ)C÷Ác›‰ìÕ t8…hMr&cu¶áÐ×¾AJúwLoX*Ɇ¡Ù—cï¸v—ú¢7pqjìNWŽ<àsµ0‰þB|1&îÞgÙñMÇ|_¤½4û·4ŽoÕŠùþ úå®›U¼7‡‰Ÿ6Õ²6 J~¤ƒ~l¨Gvò]È]mÂʃç»ÐíÇËðèél’óׯš§äqÝõ'ÿÿPK-!q9+p [Content_Types].xmlPK-!µU0#õL |_rels/.relsPK-!Þ ý(Ôhxl/_rels/workbook.xml.relsPK-!SöóÐ_rªxl/workbook.xmlPK-!é¦%¸‚S6
xl/theme/theme1.xmlPK-!¸JK-·éxl/worksheets/sheet2.xmlPK-!¸JK-·2xl/worksheets/sheet3.xmlPK-!cÝ%„{xl/sharedStrings.xmlPK-!‰£õ)š!
Òxl/styles.xmlPK-!aðU²áÀ—xl/worksheets/sheet1.xmlPK-!ùruAe®docProps/core.xmlPK-!œ<»X‹4&docProps/app.xmlPK ç
More Info
Select options

FG3900 Series – Nomex® Static Safe Hot Gloves – 16″

FG3900-clean-room-safe-esd-hot-gloves

Have static protection and heat protection in a clean room compatible glove with the high temperature FG3900 series Nomex® gloves.

The FG3900 series Nomex® gloves are designed for printed circuit board, hybrid circuit, semiconductor and other processes that require handling objects at elevated temperatures without compromising cleanliness or potential damage to static discharge. The full length 16” gloves allow you to have static control and significant heat protection in one cleanroom compatible glove.

FG Series gloves are made of continue filament yarn which reduces particle generation. They are compatible for use in controlled environments.

Specifications:

  • Face fabric: 99% Nomex® and 1% carbon yarn.
  • The gloves resist 572° F (300° C) according to ASTM F 1050 Modified. Independent testing is available. (The melting temperature of Nomex® is 450 ℃)
  • Composition: 9% Nomex®(face side)+1% Conductive Yarn.
  • Electrical: < 10 x ^10

Application and Usage
Semiconductor, SMT Assembly, Disk Drive. Applications that require thermal glove protection, static and contamination control. Available in two convenient lengths.

ItemDescriptionSales Unit
FG3901Static Safe Hot Gloves 16" SmallPair
FG3902Static Safe Hot Gloves 16" MediumPair
FG3903Static Safe Hot Gloves 16" LargePair
FG3904Static Safe Hot Gloves 16" X-LargePair
FG3905Static Safe Hot Gloves 16" 2X-LargePair
More Info
Select options

FG2600 Series – Nomex® Static Safe Hot Gloves – 11″

fg2600-clean-room-safe-esd-hot-gloves

Have static protection and heat protection in a clean room compatible glove with the FG2600 series Nomex® gloves.

The FG2600 series Nomex® gloves are designed for printed circuit board, hybrid circuit, semiconductor and other processes that require handling objects at elevated temperatures without compromising cleanliness or potential damage to static discharge. The 11” gloves allow you to have static control and significant heat protection in one cleanroom compatible glove.

FG Series gloves are made of continue filament yarn which reduces particle generation. They are compatible for use in controlled environments.

Specifications: Face fabric : 99% Nomex® and 1% carbon yarn. The gloves resist 300° C according to ASTM F 1050 Modified. Independent testing is available on request. (The melting temperature of Nomex® is 450 ℃)
Composition: 9% Nomex®(face side)+1% Conductive Yarn. Electrical: < 10 x e10

Application and Usage
Semiconductor, SMT Assembly, Disk Drive. Applications that require thermal glove protection, static and contamination control. Available in two convenient lengths.

Product Numbers

ItemDescriptionSales Unit
FG2601Static Safe Hot Gloves 11" SmallPair
FG2602Static Safe Hot Gloves 11" MediumPair
FG2603Static Safe Hot Gloves 11" LargePair
FG2604Static Safe Hot Gloves 11" X-LargePair
FG2605Static Safe Hot Gloves 11" 2X-LargePair
More Info
Select options

MT4500 Series: Two-Layer ESD Rubber Table Cut Mats

MT-blue-ESD-mat

Premium 0.080″ thick ESD table matting protects your sensitive items as well as your work surface.

The MT4500 Series ESD Two-Layer Rubber ESD Table Mat is a made of a durable 2-ply rubber. A conductive layer backs the static dissipative top layer that creates outstanding electrical performance characteristics. The 4500 Series offers excellent resistance to hot solders, soldering irons and most solvents.

MT4500 series is 0.080″ thick are available in various sizes and packaged individually with two (2) 10 mm snaps and a common point ground cord.

Meets or exceeds requirements of ANSI ESD-S20.20 and the recommendations of ESD 4.1

Part Numbers

ItemDescriptionSales Unit
MT2436B24" x 36" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT2448B24" x 48" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT2460B24" x 60" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT2472B24" x 72" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3036B30" x 36" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3048B30" x 48" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3060B30" x 60" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3072B30" x 72" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3648B36" x 48" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3660B36" x 60" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3672B36" x 72" x .080", Light Blue, Rubber Table Mat, Including HardwareEach

Replace “B” at the end of the part number with “RB” for royal blue, “GY” for gray and “GN” for green

More Info
Add to cart

Add to quote

MT4500 Series: Two-Layer ESD Rubber Table Mats

mt4500-esd-two-layer-rubber-rolls

Premium 0.080″ thick ESD table matting protects your sensitive items as well as your work surface.

The MT4500 Series ESD Two-Layer Rubber ESD Table Mat is a made of a durable 2-ply rubber. A conductive layer backs the static dissipative top layer that creates outstanding electrical performance characteristics. The 4500 Series offers excellent resistance to hot solders, soldering irons and most solvents.

MT4500 series is 0.080″ thick and available in 50′ rolls in 24″, 30″, 36″, and 48″ widths. Pre-cut mat sizes are packaged individually with two (2) female 10 mm snaps and a common point ground cord.  Learn more about the pre-cut mats.

Meets or exceeds requirements of ANSI ESD-S20.20 and the recommendations of ESD 4.1

Part Numbers

ItemDescriptionSales Unit
MT4524B24" x 50' x .080", Light Blue, Rubber Table Mat, RollRoll
MT4530B30" x 50' x .080", Light Blue, Rubber Table Mat, RollRoll
MT4536B36" x 50' x .080", Light Blue, Rubber Table Mat, RollRoll
MT4548B48" x 50' x .080", Light Blue, Rubber Table Mat, RollRoll
MT2436B24" x 36" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT2448B24" x 48" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT2460B24" x 60" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT2472B24" x 72" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3036B30" x 36" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3048B30" x 48" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3060B30" x 60" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3072B30" x 72" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3648B36" x 48" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3660B36" x 60" x .080", Light Blue, Rubber Table Mat, Including HardwareEach
MT3672B36" x 72" x .080", Light Blue, Rubber Table Mat, Including HardwareEach

Replace “B” at the end of the part number with “RB” for royal blue, “GY” for gray and “GN” for green

More Info Select options

MT2500 – Two-Layer ESD Rubber Table Mat – 0.060″ Thick

mt2500-esd-two-layer-rubber-matting

Proven 0.060″ thick ESD table matting protects your sensitive items as well as your work surface.

The MT2500 series ESD rubber mats are made from proven 0.060″ thick 2-ply rubber. A conductive layer backs the static dissipative top layer that creates outstanding electrical performance characteristics. The 2500 series offers excellent resistance to hot solders, soldering irons and most solvents.

MT2500 series is available in 50′ rolls in 24″, 30″, and 36″ widths. Pre-cut mat sizes are packaged individually with two (2) female 10 mm snaps and a common point ground cord.

Meets or exceeds requirements of ANSI ESD-S20.20 and the recommendations of ESD 4.1

Product Numbers

ItemDescriptionSales Unit
MT2524B24" x 50' x .060", Light Blue, Rubber Table Mat, RollEach
MT2530B30" x 50' x .060", Light Blue, Rubber Table Mat, RollEach
MT2536B36" x 50' x .060", Light Blue, Rubber Table Mat, RollEach
MTLP2436B24" x 36" x .060", Light Blue, Rubber Table Mat, Including HardwareEach
MTLP2448B24" x 48" x .060", Light Blue, Rubber Table Mat, Including HardwareEach
MTLP2460B24" x 60" x .060", Light Blue, Rubber Table Mat, Including HardwareEach
MTLP2472B24" x 72" x .060", Light Blue, Rubber Table Mat, Including HardwareEach
MTLP3036B30" x 36" x .060", Light Blue, Rubber Table Mat, Including HardwareEach
MTLP3048B30" x 48" x .060", Light Blue, Rubber Table Mat, Including HardwareEach
MTLP3060B30" x 60" x .060", Light Blue, Rubber Table Mat, Including HardwareEach
MTLP3072B30" x 72" x .060", Light Blue, Rubber Table Mat, Including HardwareEach
MTLP3648B36" x 48" x .060", Light Blue, Rubber Table Mat, Including HardwareEach
MTLP3660B36" x 60" x .060", Light Blue, Rubber Table Mat, Including HardwareEach
MTLP3672B36" x 72" x .060", Light Blue, Rubber Table Mat, Including HardwareEach

Replace “B” at the end of the part number with “RB” for royal blue, and “GY” for gray

More Info
Select options

ComfortDOME ESD Anti-Fatigue Mats

fm5-comfort-dome-esd-anti-fatigue-mats

Energizing ComfortDOME anti-fatigue mat provides unparalleled comfort in areas where static is a concern

The ComfortDOME flooring system is a range of individual mats and modular flooring that offers a unique combination of proven ergonomic and heath benefits PLUS ESD protection. Available in single work area mats or in interlocking sections for long assembly lines.

ComfortDOMES

ComfortDOMES provide energizing responsiveness

ComfortDOMES
Evenly spaced ComfortDOMES on the conductive surface of the mat provides superior anti-fatigue relief because ComfortDomes get softer as compressed, not harder like products made with foam. ComfortDOMES recover/rebound more rapidly than most foam resulting in an energizing responsiveness not found in other mats.  ComfortDOMES function like a spring to return energy. The unique “air pocket” structure becomes softer as compressed. ComfortDOMES rebound instantly as weight is shifted.

Applications
ESD Anti-fatigue mats provide a path-to-ground for workers wearing ESD footwear as well as reduce worker discomfort from standing for long periods

Specification & Installation
Transforming Technologies guarantees that our ComfortDOME Anti-Fatigue Mats operate in the ideal conductive range – with surface resistance between two points (RTT) of 1.0 x 10^3 – 1.0 x 10^5 ohms. ComfortDOME Mats drain static charges efficiently and will act as part of the path-to-ground for an operator wearing ESD footwear. ComfortDOME matting should be installed and properly grounded to an approved and tested ground point. The mats do not require grounding when placed on an ESD floor that measures within the user’s specified limits. This mat can also work on a static dissipative floor without grounding. Proper cleaning and maintenance as well as ESD dissipative checks must be undertaken regularly to ensure the ongoing effectiveness of the ComfortDOME conductive surface.

Meets or exceeds requirements of ANSI ESD-S20.20 and the recommendations of ESD STM7.1.

Anti-Fatigue mats increase productivity and worker moral

Why Ergonomic Anti-Fatigue Mats
Ergonomic matting is designed to work with the human body to ease the tasks that the body performs. In the case of a standing work station, anti-fatigue mats are of critical importance in reducing short-term fatigue and discomfortfrom standingfor long periods of time.These benefits also lead to real savings through increased productivity and worker moral, and decreases in sick leave, workers’ compensation claims and substandard production due to operators’ lack of concentration caused by fatigue.

Product Series

ItemDescriptionSales Unit
FM52X3Dome Anti-Fatigue Mat, 2' x 3'Each
FM53X4Dome Anti-Fatigue Mat, 3' x 4'Each
FM53X4EPDome Anti-Fatigue Mat, 3' x 4', Interlock, End PieceEach
FM53X4ICDome Anti-Fatigue Mat, 3' x 4', Interlock, Center PieceEach
More Info
Select options

ComfortTREAD Diamond-Plate Anti-Fatigue ESD Mat

fm9-comfort-treadesd-anti-fatigue-mats

ComfortTREAD ESD Runners quickly snap together to create ergonomic anti-fatigue floor with excellent traction.

ComfortTREAD diamond-plate ESD anti-fatigue mats keep your workers comfortable and your ESD sensitive equipment safe.  The mat will not separate, bubble-up, ripple, tear, compress or lose resiliency. Available in interlocking sections which can be quickly dismantled to make moving and cleaning easy. Two FM9E connected creates a 2.5′ x5′ workstation mat or you can pair the two FM9E with any number of FM9C pieces to create a runner in 30” increments.

Meets or exceeds requirements of ANSI ESD-S20.20 and the recommendations of ESD STM7.1

Diamond Plate Treads

Diamond Plate Treads

Our rubber ComfortTREAD mats are equipped with diamond-pattern surface treads. Thanks to this specialized design, our mats provide fantastic traction in work areas as well as large entryways, aisles, or other highly traveled areas. This regular pattern of raised diamonds imbue the industrial aesthetic and will provide anti-fatigue and slip protection for years.

comfort-tread-diamond-plate-anti-fatigue-honeycomb

Superior Anti-Fatigue Design

ComfortTREAD diamond-plate ESD anti-fatigue mats keep your workers comfortable and your ESD sensitive equipment. A fully molded honeycombed cell design absorbs shock and cushions the feet from constant contact with hard surfaces. The honeycomb design creates responsive columns with air pockets that get softer when compressed, not harder like solid vinly matting. The rubber is a flexible, elastic material that dampens and absorbs vibration. It forms a protective rubber barrier between your floors and industrial equipment, heavy foot traffic, or other abrasive environments.

fm9-comfort-treadesd-anti-fatigue-mats-esd

ESD Protection You Can Count On

Transforming Technologies guarantees that our ComfortDOME Anti-Fatigue Mats operate in the ideal conductive range – with surface resistance between two points (RTT) of 1.0 x 10^3 – 1.0 x 10^5 ohms. ComfortDOME Mats drain static charges efficiently and will act as part of the path-to-ground for an operator wearing ESD footwear. ComfortDOME matting should be installed and properly grounded to an approved and tested ground point. The mats do not require grounding when placed on an ESD floor that measures within the user’s specified limits. This mat can also work on a static dissipative floor without grounding.

More Info
Select options

Warmbier METRISO® 3000 High Resistance Test Kit

wolfgang-warmbier-Metriso-3000-resistance-tester-web

Computer test kit for resistance measurement of most parts of an ESD protection plan.

The METRISO 3000 test kit measures a wide range of values: low resistance from 1KilaOhm to1.2 TeraOhm. The kit comes with two 5lb disc probes and has an integrated temperature and humidity gauge. Measuring voltage can be set between 10 – 500V and also be varied if desired.

All measured values can be stored in the instrument and, with the help of the included software transferred to PC via USB cable. With the software program readings can be handled, stored and measurement protocols can be printed.

METRISO 3000 can be supplemented with various probes; miniprobe (7220.840.SET) for control of e.g trays and conveyer lines, ringprobe (7220.880.SET) and handprobe for control of resistance to floors and shoes.

Features:

  • Test range: Low ohmic range: 1 to 10 kOhm
    High ohmic range: 1 KOhm to 1.2 TOhm
  • Store up to 50,000 test values and create reports with included software
  • Results displays on LCD screen
  • Comes with 5lb probe set and hand probe
  • Comes in conductive case with handle

Test Performed

  • Resistance-to-ground
  • Resistance-point-to-point
  • Resistance-to-groundable-point
  • Volume resistance (with optional metal plate)

Applications:

  • Evaluate packaging materials
  • Evaluate garments
  • Measure flooring, work surfaces and furniture resistance
  • Measure electrostatic fields
  • Analyze ionizers performance

More Info Add to cart

Add to quote

VinylStat FM2 ESD Anti-Fatigue Floor Matting

fm2-esd-sponge-anti-fatigue-mat

VinylStat FM2 anti-fatigue matting provides a cushioning anti-fatigue surface to stand as well as grounding the person at the same time.

VinylStat FM2 is constructed with a closed-cell expanded PVC that results in a cushioning spongy surface and provides a path-to-ground for electrostatic charges. The mat is available in standalone workstation mats or in 60ft rolls in Brown or Gray. Worker fatigue has been shown to lower productivity and morale which has a large impact on profitability. Damage due to static can have a similar drain on the bottom line – Solve both problems with the VinylStat FM2 anti-fatigue matting.

Meets or exceeds requirements of ANSI ESD-S20.20 and the recommendations of ESD 4.1.

Product Numbers

Part NumberDescriptionSales Unit
FM22436BESD Anti-Fatigue Mat, Sponge Vinyl, Brown, 3/8" x 2' x 3'Each
FM22436GYESD Anti-Fatigue Mat, Sponge Vinyl, Gray, 3/8" x 2' x 3'Each
FM23660BESD Anti-Fatigue Mat, Sponge Vinyl, Brown, 3/8" x 3' x 5'Each
FM23660GYESD Anti-Fatigue Mat, Sponge Vinyl, Gray, 3/8" x 3' x 5'Each
FM224720BNESD Anti-Fatigue Mat, Sponge Vinyl, Full Roll, Brown, 3/8" x 2' x 60'Each
FM224720GYESD Anti-Fatigue Mat, Sponge Vinyl, Full Roll, Gray, 3/8" x 2' x 60'Each
FM236720BNESD Anti-Fatigue Mat, Sponge Vinyl, Full Roll, Brown, 3/8" x 3' x 60'Each
FM236720GYESD Anti-Fatigue Mat, Sponge Vinyl, Full Roll, Gray, 3/8" x 3' x 60'Each
FM248720BNESD Anti-Fatigue Mat, Sponge Vinyl, Full Roll, Brown, 3/8" x 4' x 60'Each
FM248720GYESD Anti-Fatigue Mat, Sponge Vinyl, Full Roll, Gray, 3/8" x 4' x 60'Each
Custom Sizes AvailableContact Transforming Technologies for More InformationPhone: 419-841-9552



More Info
Select options

VinylSTAT FM7 ESD Conductive Chair Mats and Floor Runners

fm7-esd-conductive-chair-mat-for-offices-with-chair-symbol

The perfect solution for grounding chairs or carts in an industrial or manufacturing environment.

The VinylSTAT FM7 is made of a rigid conductive vinyl that protects carpets from wear and tear while providing a path-to-ground for static charges. The ESD properties of the matting are permanent and are unaffected by damage caused by moving furniture.  The material is also an excellent floor runner for general uses.

The FM7 mats are made from a single layer of conductive vinyl, 0.090” thick, die cut with a lip to fit under typical desks. Runners in various lengths and full 75′ long rolls are also available.  The surface resistivity of the matting is 10^3 – 10^6. Meets or exceeds requirements of ANSI ESD-S20.20 and the recommendations of ESD STM7.1.

Part Numbers

ItemDescriptionSales Unit
FM72448ESD Conductive Vinyl Runner, 24"x48", with hardwareEach
FM73648ESD Conductive Vinyl Runner, 36"x48", with hardwareEach
FM74872ESD Conductive Vinyl Runner, 48"x72", with hardwareEach
FM7CHAIRESD Conductive Chair Mat, Black 46” x 50”, with hardwareEach
FM73X75ESD Conductive Vinyl Roll, Black 3' x 75'Each
FM74X75ESD Conductive Vinyl Roll, Black 4' x 75'Each

Outstanding ESD Properties

The VinylSTAT FM7 mat is made with permanently conductive PVC with a resistance of 10^3 – 10^5Ω. The homogeneous distribution of carbon black give this mat a continuous and permanent path to ground. Electrical properties are impervious to wear so the conductive circuit remains unbroken while guarding against scratching and scuff marks.  The mats do not need to be grounded if placed on ESD floor which makes it a great product to extend the life and appearance of ESD coated floors.

Durability by Design

Floor matting can take a beating in industrial environments – wear and tear as well as discoloration due to contamination is common. The VinylSTAT FM7 mats are made with incredibly durable PVC, which can withstand rolling chairs, charts and general foot traffic with ease. The mats will not soak up liquids and is very easy to clean with water or an approved ESD cleaner.  The black color helps by hiding dirt in between washes.

Sizes are All Occasions

Not all needs are made equal. So we provide the VinylSTAT FM7 mats in a variety of sizes workstation mats as well as bulk material in rolls.  All of our cut mats come with ESD grounding hardware – snaps and a 15ft ground cord which easily installs to ground (commonly the center screw of an outlet).  We also provide the material in 75′ rolls so that you can create long runners or cut the material yourself to save money.  Contact Transforming Technologies for mat sizes not listed  – we may be able to cut a custom size for you.

More Info Select options

ComfortGEL Cleanroom Gel Foam Anti-Fatigue Mats

fm6-comfort-gel-esd-anti-fatigue-mats-black

ComfortGEL ESD Anti-Fatigue Mats provides maximum softness and cushioning while

Transforming Technologies ComfortGEL ESD Anti-Fatigue mat prevents worker fatigue in controlled environments. This non-slip, water resistant mat is constructed from a close cell rubberized gel foam which provides an exceptionally high level of performance and comfort. The ComfortGEL anti-fatigue mats can be cleaned to clean room level100 by request. Made from specially formulated antimicrobial and antibacterial material to promote cleanliness.

Meets or exceeds requirements of ANSI ESD-S20.20 and the recommendations of ESD STM7.1.

Comfort Innovation

ComfortGEL is a blend of durable rubberized gel foam designed especially for extreme ergonomic comfort.  The 5/8″ thick matting compresses and expands easily to create an energizing surface to stand on.  These foam anti-fatigue mats are ideal in environments where traditionally much heavier and bulkier mats are used for durable anti-fatigue such as: assembly lines, workstations, manufacturing, laboratories, and even home workshops.

Perfect for "Clean" Applications

ComfortGEL matting is made with antibacterial technology which helps minimize the growth of bacteria.This non-slip, water resistant mat is constructed from a close cell rubberized gel foam which allows the mat to be washable (to a cleanroom class). Open cell foam contains bubbles that are interconnected to each other in a wide web. A kitchen sponge is an example of open cell foam. Open cell foam can be soft but it will absorb any liquid it comes in contact with. ComfortGEL molded closed cell foam is not connected, one cell to another.Each cell is discrete which prevents absorption. This includes liquids, bacteria or blood-borne pathogens making it a great choice for “clean” applications.

Product Numbers

ItemDescriptionSales Unit
FM62036BKComfortGEL ESD Anti-Fatigue Mat, Washable, 20" x 36", BlackEach
FM62436BKComfortGEL ESD Anti-Fatigue Mat, Washable, 24" x 36", BlackEach
FM66036BKComfortGEL ESD Anti-Fatigue Mat, Washable, 60" x 36", BlackEach

More Info
Add to cart

Add to quote

PDT800K Deluxe “Near -Fail” Combo Wrist Strap and Footwear Testing Station

pdt800k-esd-combo-test-station

Easy, accurate, and time-saving one-touch digital wrist strap and footwear tester with “Near-Fail” alert that tells you when you are nearing failing levels.

What makes the PDT 800K unique is the proactive “Near-Fail” Indicator that alerts the user that the ESD grounding device under test (wrist strap or heel grounder) is nearing failure levels and should be changed soon if not right away. The results are visible with the digital screen on the tester’s face. This helps prevents a worn device “passing” a test and failing in the field. This tester fully supports the “Compliance Verification Plan” requirements as stated in the ANSI ESD S20.20.Simultaneously and independently test both feet and a wrist strap while filtering out human body noise.

The PDT series provides you a state-of-the-art fast, safe, and extremely simple tool to fully meet your daily ESD checking need. It further assists you to effectively enhance the performance of the EPA control and administration.

“Near-Fail” Proactive Testing
The “Near-Fail” indicator is a function to give a warning when the measured resistance is in the PASS range but is within 10% (default) safe range of the high or low limit. Besides the PASS LED, the corresponding LED of the high or low limit will be turned on to warn the user that the wrist-strap or the footwear is “Near-Fail”. “Near-Fail” alert can be adjusted (increased or decreased) by Transforming Technologies – contact for more information.

Alarm Limit Adjustment:
The default upper and lower resistance limits fully meet the requirements of international standards such as ANSI/ESD S20.20-2007 or IEC61340-2007 – for wrist straps (35meg alarm) and for foot straps (100 Meg).  If you have an application that requires different test limits, the PDT series has dip switch controls.

Verification and Calibration

The PDT800K is factory calibrated and annual calibration is not necessary. Verification tools that simulate a functional and non-functional wrist straps/footwear are available to verify that the monitor is functional.  It is recommended to verify proper working order with the PDT78PV  periodic verification unit at least once per year.

Mounting Options

The PDT800K is a freestanding tester which includes the testing device, footplate and pedestal stand. The unit is also available as a wall mount unit and does not include the pedestal stand (p/n PDT800).

Turnstile/Barrier/Gate System:

The PDT series testers have a built in N/C  N/O switch used with doors or turnstiles where a positive test allows the person to move through. The relay has contact rating of 1A 30VDC maximum and with the center contact as COMMON contact and the left contact as NC(normally close) and the right contact as NO(normally open).  These are the inputs that are used to connect the device you want to trigger.

More Info
Add to cart

Add to quote

GrooveSTAT Conductive Ribbed Rubber Matting

fm10-conductive-v-groove-rubber-mat

This conductive ESD floor runner has a non-slip, grooved surface that provides excellent traction and allows the mat to be easily cleaned.

A ribbed emboss provides a non-slip surface that provides excellent traction and allows the mat to be easily cleaned. The ribbed matting is also very resilient, allowing it to stand up to heavy foot traffic while still maintaining its ESD protection. The material also offers moderate chemical resistance. The matting is 1/8″ thick matting is available in 4’x32′ rolls and an assortment of lengths. The Transforming Technologies GrooveSTATTM Conductive Rubber Matting provides the electrical properties specified by ESDA standards for floor mats. Most common ESD runners available are made with dissipative vinyl, which does not comply with ESD standards.



Rubber runners create a barrier to cold flooring substrates and can also quiet footsteps over noisy tiled areas. Corrugated rubber matting can also be used as a liner for maintenance and tool carts.

Meets or exceeds requirements of ANSI ESD-S20.20 and the recommendations of ESD STM7.1

ItemDescriptionSales Unit
FM102448Conductive Rubber V-groove Floor Mat, With Hardware, 2'x4'Each
FM103648Conductive Rubber V-groove Floor Mat, With Hardware, 3'x4'Each
FM104872Conductive Rubber V-groove Floor Mat, With Hardware, 4'x6'Each
FM104X32Conductive Rubber V-groove Floor Mat, Full Roll, 4'x32'Each
More Info
Select options

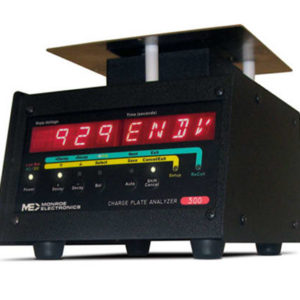

Model 300 Charge Plate Monitors to Test Ionizer Performance

300-charge-plate-monitor-monroe-electronics

The Model Number 300 charge plate monitor uses large, high-contrast, alpha/numeric LED displays for easy reading at any viewing angle, even in high ambient lighting conditions. Individual LED’s, provide additional operation status during testing and setup. Single-button operation of manual +decay, -decay and balance ensures simple, easy operation. Balance tests record ±peaks and average reading. Each test can be customized in setup for stop trip levels and test duration. An automated set of tests can be initiated with a single button depress.

Operation and setup can be done via a USB port and PC software in addition to the front panel buttons. Test results can also be retrieved for automatic or manual test.
Real time analysis of ionizers can be done via the analog output.
Features:

Measures, displays and stores last test data, including discharge times, peak offset voltages, and average offset voltage.
Easiest, most reliable way to check effectiveness of all ionization-type static control systems3
Meets Requirements of ANSI/ESD STM 3.1
Removable, cable-connected ion collecting plate probe permits precise positioning and remote monitoring
Separate time and voltage displays for
discharge time test
Recorder output for permanent records and unattended operation
One range measures from 0 to ±1kV

Dramatically demonstrates induced charges and human body potential

More Info
Add to cart

Add to quote

PV Series Industrial ESD Interlocking Tile Floor Mats

pv-industrial-esd-floor-tile

Low-compression ESD floor tiles for industrial environments.

The PV Series Comfort matting is structurally robust and is capable of tolerating the heavy loads and harsh conditions associated with industrial environments while providing a comfortable, ESD- safe area for people required to stand for long periods of time. Safety ramp edging, in matching black or high visibility yellow, ensures a safer transition to and from the ESD work area.

Exceptional Comfort

The PVC tiles incorporate a unique under structure of “compression columns” which act as springs when weight is applied to counter the negative effects of impact or standing for prolonged periods. This ergonomic concept has been shown to significantly increase user comfort so not only will your static sensitive products be protected, your work force will be as well.

Easy Installation of ESD Flooring

The interlocking design makes the flooring simple to install and easy to configure. The professional look and functional safety of installations is completed with black or high-visibility yellow, non-ESD safety ramp edging that locks on to the modular tiles. Grounding wires and other cabling can be installed under the tiles.

Easy Cleaning

The PV Series flooring can be cleaned like most other flooring surfaces – by sweeping, vacuuming and washing. A mixture of 30% distilled water and 70% isopropyl alcohol, sprayed on and wiped with a clean cotton cloth removes dirt build-up.



More Info
Add to cart

Add to quote

Model 288B Charge Plate Monitors to Test Ionizer Performance

288B-esd-ionizer-charge-plate-monitor

The Model 288B’s easy-to-use, self-contained
design simplfies ionizer audits: Testing your ionizers is as simple as pushing a button. Model 288B is the first Charged Plate Monitor to incorporate a microprocessor and data storage, eliminating the need for a dedicated computer. All test parameters are programmable allowing tests to be optimized and not dictated by equipment limitations.

Once programmed, the Model 288B will perform a
series of tests automatically: +/- decays, balance,
balance peaks, temperature, humidity, time/date are
stored and may be reviewed via the display or downloaded to a PC. The PC software (included) permits the user to define and name ionizer locations, test setups and sequences, then upload these to the CPM. All of these features result in a flexible, easy to use instrument that facilitates audits while inimizing errors.
Features:

Innovative non-contacting electrometer
provides tests to unprecedeted low
voltage with unmatched stability
Fully configurable operating parameters
Soft keys for highly intuitive programming
Manual and automated testing of Decay
and Balance
Internal storage for up to 1500 tests, 500
locations and 4 test protocols
Internal battery for portable operation
(also line operated)
Large, easy to read, high contrast LCD
display
Detachable 6” x 6” plate
(Optional plate 1” X 1” plate available)
RS232 interface
Built in temperature and humidity
sensors
Auto-ranging to 0.1V resolution below
100V
Compatible with new 288B Graphing
Software

More Info
Add to cart

Add to quote

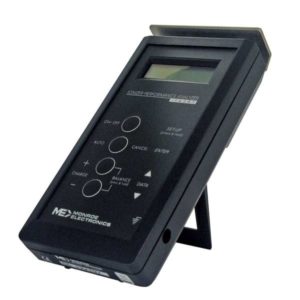

Model 287A Charge Plate Monitors to Test Ionizer Performance

287-esd-ionizer-performance-analyzer

The Model 287A is a low-cost and highly portable alternative to a charged-plate monitor for periodic verification of ionzer performance. It permits ionizer testing at the work location without the need to remove the ionizer from service for testing.
Model 287A performs manual or automatic decay and balance tests for periodic verification of ionization equipment. It then stores the results and averaged decay times for up to ten manual tests and up to ten complete automatic test sequences.Temperature and relative humidity are displayed real-time and recorded with the test data.
All instrument functions are controlled by four
push buttons.
In DECAY mode a built-in high voltage generator charges the plate to over 1050 volts. During testing the plate will discharge toward zero in the presence of ionization. The elapsed time of decay between 1000 volts and 100 volts is displayed.
In the BALANCE mode, isolated plate voltage,
test duration and + and – peak voltages are
displayed. Self-tests include battery check and tests for functional errors.
Features:

All-in-One Instrument – Measures, displays and stores voltage, decay time, temperature and humidity
Exceeds current requirements of ESD Assn. SP3.3 for Periodic Verification of Air Ionizers
Test Balance and Decay
Low Cost / Performance Ratio
Hand-held, Battery Operated
Microprocessor Driven
Built -in Self Test
Exclusive Monroe Electronics Two year Warranty

More Info
Add to cart

Add to quote

PDT700K – Near -Fail” Combination Wrist Strap and Footear Testing Station

pdt700-esd-combination-esd-tester

Easy, accurate, and time-saving one-touch digital wrist strap and footwear tester with “Near-Fail” alert that tells you when you are nearing failing levels.

What makes the PDT 700K unique is the proactive “Near-Fail” Indicator that alerts the user that the ESD grounding device under test (wrist strap or heel grounder) is nearing failure levels and should be changed soon if not right away. This helps prevents a worn device “passing” a test and failing in the field. This tester fully supports the “Compliance Verification Plan” requirements as stated in the ANSI ESD S20.20.Simultaneously and independently test both feet and a wrist strap while filtering out human body noise.

The PDT series provides you a state-of-the-art fast, safe, and extremely simple tool to fully meet your daily ESD checking need. It further assists you to effectively enhance the performance of the EPA control and administration.

“Near-Fail” Proactive Testing
The “Near-Fail” indicator is a function to give a warning when the measured resistance is in the PASS range but is within 10% (default) safe range of the high or low limit. Besides the PASS LED, the corresponding LED of the high or low limit will be turned on to warn the user that the wrist-strap or the footwear is “Near-Fail”. “Near-Fail” alert can be adjusted (increased or decreased) by Transforming Technologies – contact for more information.

Alarm Limit Adjustment:
The default upper and lower resistance limits fully meet the requirements of international standards such as ANSI/ESD S20.20-2007 or IEC61340-2007 – for wrist straps (35meg alarm) and for foot straps (100 Meg).  If you have an application that requires different test limits, the PDT series has dip switch controls.

Verification and Calibration

The PDT700K is factory calibrated and annual calibration is not necessary. Verification tools that simulate a functional and non-functional wrist straps/footwear are available to verify that the monitor is functional.  It is recommended to verify proper working order with the PDT78PV  periodic verification unit at least once per year.

Mounting Options

The PDT700K is a freestanding tester which includes the testing device, footplate and pedestal stand. The unit is also available as a wall mount unit and does not include the pedestal stand (p/n PDT700).

Turnstile/Barrier/Gate System:

The PDT series testers have a built in N/C  N/O switch used with doors or turnstiles where a positive test allows the person to move through. The relay has contact rating of 1A 30VDC maximum and with the center contact as COMMON contact and the left contact as NC(normally close) and the right contact as NO(normally open).  These are the inputs that are used to connect the device you want to trigger.

More Info
Add to cart

Add to quote

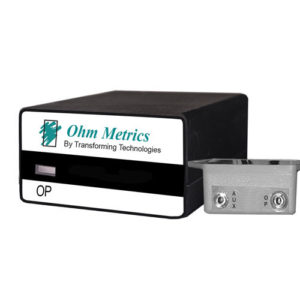

RangerONE Dual Wire Constant Monitor – Model CM1601

CM1601-resistance-ranger-dual-wire-constant-monitor

Dependable and accurate dual wire monitor for one person.

The RangerOne is an extremely sensitive monitor that accurately measures the electrical resistance of an ESD wrist band and signals if the device fail. The Resistance Ranger Series is the most reliable workstation monitoring system available.

The extremely sensitive monitors accurately measure the electrical resistance of an ESD wrist band and work surface and signals if the devices fail. Audible and visible alarms are triggered if the operator’s resistance exceeds 35 meg ohm. The Ranger Series saves time by eliminating the time-consuming testing of wrist straps and coil cords.

Accessories

CyclopsTM Operator Presence Check
The Cyclops is an infrared sensor that causes the monitor to alarm when an operator approaches the workstation without connecting their wrist strap. The alarm continues until compliance is achieved.  Part number:  CMREMOTE-IR

 Wrist Strap Parking Station
Provides a jack that will allow an operator to disconnect and leave the dual conductor cord at the workstation without the wrist strap monitoring system alarm sounding. For use with mono plug coil cords. Part number: CP3000

Operator Presence Check

The RangerONE can be outfitted with the Cyclops Remote Sensor that detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items

Calibration

The  RangerONE is factory calibrated and does not require annual re-calibration.  It is recommended to verify calibration with the CM2015PV periodic verification meter at least once a year.  Download the RangerONEcalibration statement for your compliance program.

Superior Technology
Resistance based monitoring is the only true wrist strap monitoring technology available. Single wire systems simply detect that a person is wearing a wrist strap and put the monitor into an unalarmed state. Resistance monitors actually measure the resistance of the wrist strap in combination with the person and alarm if the product exceeds preset levels. This accurate measurement ensures reliability.

More Info Add to cart

Add to quote

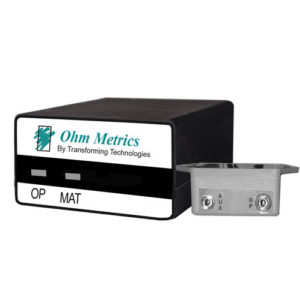

RangerTWO Dual Wire Constant Monitor – Model CM1602

CM1602-resistance-ranger-dual-wire-constant-monitor

Dependable and accurate dual wire monitor for one person and one work surface.

The Resistance Ranger Series is the most reliable workstation monitoring system available. The extremely sensitive monitors accurately measure the electrical resistance of an ESD wrist band and work surface and signals if the devices fail.

The RangerTWO is an extremely sensitive and reliable ground monitoring instrument. Audible and visible alarms are triggered if the operator’s resistance exceeds 35 megohm. Low resistance of 1.8 megohm also triggers an alarm event. Mat alarm limits are set at 100 meg ohm.

Accessories

CyclopsTM Operator Presence Check
The Cyclops is an infrared sensor that causes the monitor to alarm when an operator approaches the workstation without connecting their wrist strap. The alarm continues until compliance is achieved.  Part number:  CMREMOTE-IR

 Wrist Strap Parking Station
Provides a jack that will allow an operator to disconnect and leave the dual conductor cord at the workstation without the wrist strap monitoring system alarm sounding. For use with mono plug coil cords. Part number: CP3000

Operator Presence Check

The RangerTWO can be outfitted with the Cyclops Remote Sensor that detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items

Calibration

The  RangerTWO is factory calibrated and does not require annual re-calibration.  It is recommended to verify calibration with the CM2015PV periodic verification meter at least once a year.  Download the RangerTWO calibration statement for your compliance program.

Superior Technology
Resistance based monitoring is the only true wrist strap monitoring technology available. Single wire systems simply detect that a person is wearing a wrist strap and put the monitor into an unalarmed state. Resistance monitors actually measure the resistance of the wrist strap in combination with the person and alarm if the product exceeds preset levels. This accurate measurement ensures reliability.

More Info Add to cart

Add to quote

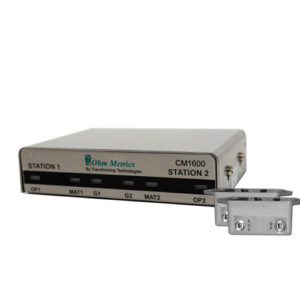

RangerPRO Dual Wire Constant Monitor – CM1600

cm1600-dual-conductor-constant-monitor

Versatile, Dependable, and Accurate Resistance Based Constant Monitor System

The RangerPRO constant monitor is the premiere work station grounding system available. A continuous pulse of an ultra-low voltage signal measures the electrical resistance of two wrist bands, two work surfaces, and two auxiliary grounds simultaneously and alarms if there is a problem.

The RangerPRO is an extremely sensitive and reliable ground monitoring instrument. Audible and visible alarms are triggered if the operator’s resistance exceeds 35 megohm . Low resistance can also triggers an alarm event. Mat alarm limits are set at 100 meg ohm. The CM1600 packaged in a stainless steel case with two wrist strap jacks.

The RangerPRO saves time by eliminating the time-consuming testing of grounding products. The system uses special dual wire wrist band sets that contain two independent elements which provide fail-safe protection. The series includes both fabric and metal wrist bands paired with cords in either 5, 10, or 20 feet lengths.
Meets or exceeds requirements of ANSI ESD-S20.20 and ESDA Standard 1.1-2006

Operator Presence Check

The RangerPRO can be outfitted with the Cyclops Remote Sensor that detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items.

Alarm Signals

The RangerPRO works with light towers, sirens, and other devices to enhance the signal of a failure. Pair the unit with the CM-RELAY to integrate with a signal (check with the manufacturer of your signal for compatibility.)

Calibration

The RangerPRO is factory calibrated and does not require annual re-calibration.  It is recommended to verify calibration with the CM2015PV periodic verification meter at least once a year.  Download the RangerTWO calibration statement for your compliance program.

More Info Add to cart

Add to quote

RangerNET Dual Wire Constant Monitor – Model CM2815

Resistance RangerBOSS Constant Monitor

A network read dual wire constant monitor for two people and two work surfaces with data logging capabilities

Transforming Technologies’ RangerNET constant monitor is the premiere work station grounding system available. A continuous pulse of an ultra-low voltage signal measures the electrical resistance of two wrist bands, two work surfaces, and two auxiliary grounds simultaneously and alarms if there is a problem.

The RangerNET is an extremely sensitive and reliable ground monitoring instrument. Audible and visible alarms are triggered if the operator’s resistance exceeds 35 megohm (factory default). Low resistance can also triggers an alarm event. Mat alarm limits are set at 100 meg ohm. The CM2815 packaged in a stainless steel case with remote jacks.

The RangerNET saves time by eliminating the time-consuming testing of grounding products. The system uses special dual wire wrist band sets that contain two independent elements which provide fail-safe protection. The series includes both fabric and metal wrist bands paired with cords in either 5, 10, or 20 feet lengths.

Meets or exceeds requirements of ANSI ESD-S20.20 and ESDA Standard 1.1-2006

Boss-See Monitoring System

The RangerNET can be integrated into a network with the Boss-See software for status monitoring and data collection.

Accessories

Operator Presence Check

The RangerNET can be outfitted with the Cyclops Remote Sensor that detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items. Part Number: CM-REMOTE-IR

Digital Display
CM2800-D is a digital display device to be used with the Ranger monitors. It shows the real-time values that the constant monitors measures so that the users can observe and document the accurate measurements of the monitoring status.

 Wrist Strap Parking Station
Provides a jack that will allow an operator to disconnect and leave the dual conductor cord at the workstation without the wrist strap monitoring system alarm sounding. For use with mono plug coil cords. Part number: CP3000



Calibration

The  RangerNET is factory calibrated and does not require annual re-calibration.  It is recommended to verify calibration with the CM2015PV periodic verification meter at least once a year.  Download the RangerNET calibration statement for your compliance program.

Superior Resistance Technology
Resistance based monitoring is the only true wrist strap monitoring technology available. Single wire systems simply detect that a person is wearing a wrist strap and put the monitor into an unalarmed state. Resistance monitors actually measure the resistance of the wrist strap in combination with the person and alarm if the product exceeds preset levels. This accurate measurement ensures reliability.



More Info Add to cart

Add to quote

Warmbier PGT120.COM Combination Tester With Data Collection

wolfgang-warmbier-pgt120-combo-tester

A complete test station for ESD footwear and wrist straps with data collection

The PGT120.COM personnel grounding tester takes quick and accurate resistance measurements of the ESD grounding products with the ability to integrate with a computer to store test data. Access to this information is valuable to your quality program.

The unit operates with 3 independent measuring circuits for the left shoe, the right shoe and the wrist strap. The shoes can even be measured in a hands free mode which means that the staff members are tested automatically when standing on the plate. PGT120.COM can be connected to an automatic door opening system which allows entry with only passing results.

The PGT120.COM is supplied complete with footwear testing electrode, flexible cord, transformer with power cord and calibration protocol. Recommended calibration interval is 24 month Corresponding wall mounting plate, and electrode anti-fatigue mat is sold separately.

Data Collection

Pair the unit with the PGT120.COM Data Terminal and you receive real-time ESD testing with personnel identification, access control and central data maintenance. Also connect to a number of accessories such as a label printer, bar code scanner, RFID, database server and much more.

  • Ready to integrate into existing infrastructure
  • Multiple PGT120.COM stations can be networked
  • Existing identity cards or time attendance cards can be re-used
  • Open database interface
  • Measurement data is ready to process after a few seconds
  • Various databases can be used
  •  Combination with existing access systems is possible
  • Secure network communication

The following data is recorded in ASCII format:

  • Value Footwear in Series: Value in kOhm
  • Value Wrist Strap System: Value in kOhm
  • Value of Left Foot: Value in kOhm
  • Value of Right Foot: Value in kOhm
  • Test OK: OK
  • Test Failed: Error no.

Product Videos

PGT120 Hands-Free Testing

PGT120 With Turnstyle

More Info
Add to cart

Add to quote

RangerBOSS Dual Wire Constant Monitor – Model CM2800

Resistance RangerBOSS Constant Monitor

A network ready dual wire constant monitor for two people and two work surfaces with adjustable alarm limits, and data logging capabilities.

The RangerBOSS dual conductor workstation monitor provides complete ESD protection to two operators by monitoring both resistance and voltage independently using dual conductor wrist strap. It also monitors ESD mat ground and low resistance of tool chassis’ ground simultaneously. Utilizing ultra-low voltage, resistive loop technology, the CM2800 is an extremely sensitive and reliable ground monitoring unit for use in highly critical areas.

The RangerBOSS’s alarm limits are user programable via the optional PC software CM2800-SEE. Operator Resistance, Operator Voltage, Work Surface Resistance, and Resistance of Equipment alarms can be enabled/disabled and limits selectable to user specifications.
The RangerBOSS is network ready and can easily be connected to other workstation monitors and a computer using the high speed network router, CM2800-H. The host computer can be transformed into a command center with the software CM2800-BOSS SEE, a central monitoring program that shows real time grounding results and al-lows for adjustment of alarm parameters of up to 4096 workstations. An entire assembly line’s ESD protection can be remotely monitored and adjusted with one computer.
Proactive Key Functions:

Wrist-strap Alarm: High Limit: 8M? ~ 35M? (35m default); Low Limit: 750K? ~ 2.4M?
Operator Voltage Alarm: ±1V ~ ±5V
Mat Alarm: 1M? ~ 140M?
Tool Alarm: 2? ~ 20?
Via CM-2800-D, provide digital display on LCD. Also provide 4-20 mA or 0 – 5V analog outputs and external interfaces for siren and tool controls
Applications:

Hard drive manufacturing / GMR head testing / Electronics assembly / Aerospace / Military / Semiconductor Fabrication / Any static sensitive assembly and test environment

More Info
Add to cart

Add to quote

Warmbier PGT120 Combination Tester for Personal Grounding Equiptment

wolfgang-warmbier-pgt120-combo-tester

The PGT120 is an easy to use and complete test station for ESD shoes and wrist straps.

The personnel grounding tester is able to perform a quick and accurate control measurement of the ESD protection. The test results are indicated both with audible and visual signals. The PGT120 measures the left and right shoe separately.

The shoes can even be measured in a hands-free mode which means that the staff members are tested automatically when standing on the foot plate. PGT 120 can be connected to an automatic door opening system.

Hands-Free Testing Video

100volt Test Circuit
The PGT120 uses a 100volt test circuit (by default) which is the same voltage used for qualification tests. Using 100 volts allows the PGT120 to test all materials consistently. DIP switches on the PGT120 can adjust the voltage to either 30V or 50V.

The PGT 120 is supplied complete with footwear electrode, flexible cord, transformer with power cord.

Accessories

Periodic Verification Unit
The PGT120 is factory calibrated and comes complete with a NIST traceable certificate. Calibration can be verified with the PGT120.CU. Recommended calibration verification interval is 24-months.

Foot Plate Mat
The footwear testing plate can fit inside an anti-fatigue mat with high visibility yellow borders (7100.PGT120.SM).

Walk Mounting Plate
The wall mounting plate is sold separately: (7100.PGT100.101).



More Info
Add to cart

Add to quote

ESD Socks: Works Great with ESD Shoes and Heel Grounders

sc-esd-socks-static-control-sc002-series

Ensure that you are electrically connected to ground by wearing ESD socks with your ESD shoes or Heel Grounders. The toe and heels of the socks are reinforced with conductive yarn.  Made with polyester, spandex and conductive yarn.

Available in small, medium and large.

Why Use ESD Socks?

The combination of ESD flooring and footwear can be an effective way to ground personnel to control electrostatic discharges when using a wrist strap is not practical. For this system to be effective, the ESD flooring and footwear must have a low enough resistance to allow the voltage from the operator to flow to ground. There also must be a good contact between the person and the ESD footwear.

While ESD shoes may be made with conductive materials, they require a layer of perspiration in the sock to provide a path-to-ground. This is a concern because there are many variables between people. Per ESD Handbook TR20.20 section 5.3.3.5 Common Testing Problems “Occasionally, footwear may indicate a high resistance…[A contributor being]heavy or insulative socks, or the absence of a sweat layer due to differences in temperature between the inner surfaces of the shoes and the wearer’s feet.”

You may see inconsistent resistance measurements from person to person, especially during colder months when employees wear heavier socks and sweat less. One person may fail a test at the start of a shift, and pass ten minutes later after a sweat layer is formed.

How much time is wasted waiting for shoes to pass a test? Or worse, how many sensitive items does a person come into contact with before their ESD shoes are truly acting as a path-to-ground.

Eliminate these variables and ensure a consistent path-to-ground with conductive ESD socks. ESD socks are made with conductive yarn which provides a reliable electrical path from the start and rely less on the wearer’s skin resistance for repeatable performance regardless of the environment.

More Info
Select options

WB1600 Series Single Wire Wrist Band & Coil Cord Set – 6ft, 12ft, 20ft cords; 4, 7,10mm snaps

wb1600-esd-blue-fabric-wrist-band-set

Versatile wrist strap and coil cord set is a durable and long lasting method of grounding personnel.

The WB1600 Series Wrist Band and Coil Cord set is the most versatile and cost effective band set offered by Transforming Technologies. The soft, blue woven fabric and 360°curved buckle of the wrist band allows the skin to breathe and makes it very comfortable to wear. The band uses hypoallergenic silver-plated nylon thread for conductivity and has a maximum resistance of 160 ohms. The standard band is standard with a 4mm snap, but 7mm and 10mm can be substituted. Available in Red with a 4mm snap – Model number WB2600.

The coil cord’s 2.5mm polyurethane coil insulation offers excellent coil memory. A classic snap comes in three different sizes: 4mm; 7mm; 10mm so it works in combination with most standard wristbands. A swivel type banana jack increases coil life and prevents cord tangles. Comes in 6’, 12’ or 20ft lengths.

Anti static wrist strap sets are great personal grounding solutions and the WB1600 series meets or exceeds requirements of ANSI ESD-S20.20 and ESDA Standard 1.1-2006.

WB1600 Series Options

Part NumberDescription
WB0016Woven Wrist Band Only, Blue, 4mm Snap
WB0017Woven Wrist Band Only, Blue, 7mm Snap
WB0018Woven Wrist Band Only, Blue, 10mm Snap
WB0026Woven Wrist Band Only, Maroon, 4mm Snap
WB1637Wrist Strap Set, 6' Coil Cord, 4mm Snap, Blue Fabric Band
WB1643Wrist Strap Set, 12' Coil Cord, 4mm Snap, Blue Fabric Band
WB1738Wrist Strap Set, 6' Coil Cord, 7mm Snap, Blue Fabric Band
WB1744Wrist Strap Set, 12' Coil Cord, 7mm Snap, Blue Fabric Band
WB1839Wrist Strap Set, 6' Coil Cord, 10mm Snap, Blue Fabric Band
WB1845Wrist Strap Set, 12' Coil Cord, 10mm Snap Blue Fabric Band
WB169020Wrist Strap Set, 20' Coil Cord, 4mm Snap, Blue Fabric Band
More Info Select options

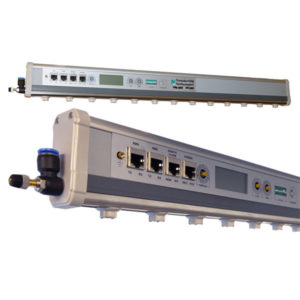

IN1200 Series ESD Ion Bars

IN1202-ionizing-bar-control-static

With the combination of pulsed Dual DC technology and an unique design, Transforming Technologies’ IN1200 Ion Bar ionizer provides uniform static elimination at high speeds. The IN1200 quickly and efficiently controls static in mini-environments, laminar flow hoods and wide area workstation applications. The ionizing bar features a unique aerodynamic design that ionizes a local area without disrupting laminar flow. It is an highly effective tool in electronics, plastics, chemicals, printing, textile, optical and other industries. Installation is simple with easy mount clips and maintenance is reduced by high density tungsten emitters enclosed in a patented replaceable molded cap. Available in 22in., 44in. or 64in. lenghts. The IN1200 has an easy to read LED screen to aid in adjustments and displays errors. The IN1200 Bar detects error conditions and an audible alarm and visual indi-cator on the LED displays the issue. The IN1200 is powered by a Cat-5 cable input with 24volt adapter. Two or more ion bars can be connected in series through the secondary RMS port. The IN1200 is an industry leader in mainte-nance saving performance. The patented molded emitter and high density tungsten probe prevents wear and particle accumulation. The IN1200 includes a self diagnosis function that monitors ion generation. With the bar LED indicator and alarm outputs, the ionizer alerts you of the need for emitter maintenance.

More Info
Add to cart

Add to quote

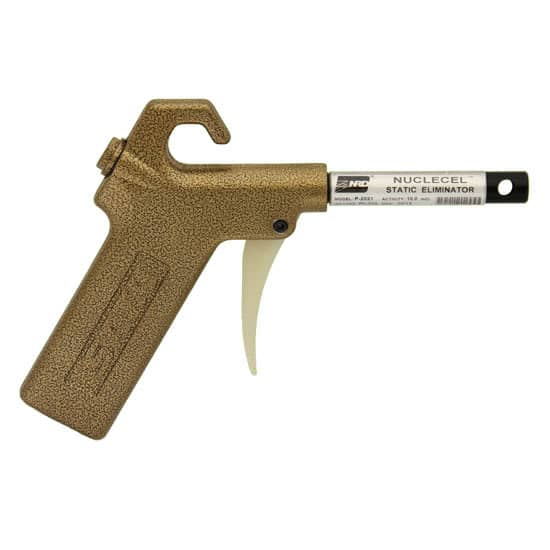

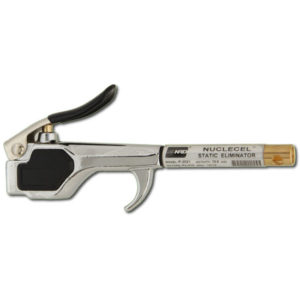

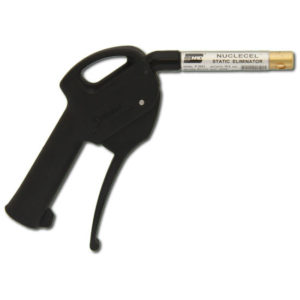

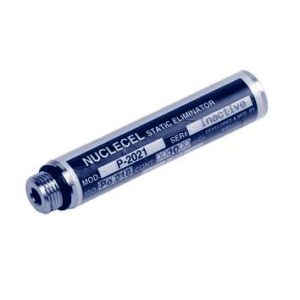

P-2021-8201 Alpha Ionizing Blow Guns

P-2021-8201-nrd-ionzing-gun

High-quality ionizing gun is self-powered and intrinsically safe, while providing perfectly balance static eliminating ions.

The P-2021 series Alpha Ionizing Blow Guns offer all the advantages of the P-2021 EOL ionizer coupled to a variety of blow-gun handles.This is a high-quality pistol grip gun is ideally suited for a wide variety of industrial applications. It’s intended for use with clean, dry compressed air or other inert gasses such as Nitrogen or Argon.

NRD’s line of Industrial Ionizing Gun Kits feature ergonomic designs, rugged construction and reliable performance. All guns are self-power by NRD’s proprietary alpha ionizing cartridge Model 2021. These high-quality guns require little or no maintenance and are intrinsically safe for use in flammable or explosive environments. From plastics and printing to packaging and auto body, there is an gun kit to suit virtually every industrial application.

Alpha Ionization Technology.

Alpha energy delivers an intrinsically balanced cloud of ions that are extremely effective in eliminating static changes, reducing product damage and yield loss in the electronics, plastics, graphics, printing and converting industries.  They are great for critical applications such as explosive environments because they do not require power and do not product sparks.

Based upon safe alpha technology, the ionizers are powered by their own internal energy source, Polonium-210. This naturally occurring isotope is locked inside a metallurgically bonded foil of gold and silver using NRD’s proprietary encapsulation process, assuring you of a safe, sealed source of alpha ionization.

Leasing Information.
To maintain peak performance and conform to government regulations, NRD alpha ionizers sources are available on a one-year lease. The gun handle is owned by the customer. The leaseholder is notified prior to lease expiration and provided all the necessary information to obtain a replacement ionizer.

More Info
Add to cart

Add to quote

Ptec™ IN3425PE AC Ionizing Nozzle with Photoelectric Eye

in3425-eye-ionizing-nozzle

The IN3425PE is a versatile ionizing air nozzle that can handle many unique, narrow area applications hands-free.

The Ptec™ IN3425PE ionizing nozzle is a small, mountable ionizer that can quickly remove static in hard to reach areas.  A proximity sensing photoelectric eye controls the power and air flow for easy hands-free ionization. With their small size, the IN3425PE narrow area ionizing nozzle can be used to eliminate static electricity from a focused point. Combined with a high air supply pressure, the spot-type static eliminators can be used to blow off dust and contaminates, separate clinging materials all while eliminating static electricity.With a variety of tip attachments, the IN3425PE can be used in varying configurations in focused areas.

The photoelectric sensing eye is adjustable up to 14inches. The ionizer only produces ions when objects are in proximity of the sensor, there is a version that produces ions continuously when powered on: model number IN3425.
About Ptec™ Technology
A specialized piezoceramic high voltage transformer drives the technology making Ptec™ ionizers among the most reliable ionizers available. The model IN3425PE air ionizing nozzle produces a 68KHz AC output of approximately 2200V and a continuous stream of balanced air ions. The IN3425PE works efficiently with clean dry air (CDA) and nitrogen (N2) and is capable of 100 psi input. Stable, small and free from EMI, the IN3425PE is equipped with auto ion balance and will alarm if the high voltage output fails.

Maintenance Savings
Ptec™ ionizers save time and money because they require no calibration. Emitter life is increased and maintenance frequency is reduced, due to 68KHz AC ion emission.  The emitter tip can be cleaned with isopropyl alcohol and a clean cloth periodically to maintain performance.

Power Requirements
The IN3425PE can work on all power circuits, from 100-240volts, without any adjustments. This means the standard ionizer can be used in many different countries and power circuits and performance will not be affected.

Accessories:
FL0020 Hollow Fiber Micro Filter
The FL0020 micro filter features a hollow fiber membrane that provides excellent filtration and has a long service life. The compact design is easy to install and comes with quick release connections for fast replacement. All materials used are compatible for the most stringent applications.  Learn more about the FL0020 here.

Output Nozzle Tips
Change the airflow from the IN3425PE nozzle can handle unique and difficult point-of-use ionization applications with interchangeable nozzle tips. Wide angle, long range, bendable, luer lock or manifold tips may be substituted depending on the application. Learn more about the Output Nozzle Tips here.

Verification and Calibration:
The IN3425PE nozzle comes factory calibrated and with a calibration certificate.  Important tests to perform are positive and negative decay times and ion balance. Ionizers can be verified with a charge plate monitor.

More Info Add to cart

Add to quote
