Energizing 3′ x4′ ComfortDOME anti-fatigue mat provides unparalleled comfort in areas where static is a concern
The ComfortDOME flooring system is a range of individual mats and modular flooring that offers a unique combination of proven ergonomic and health benefits PLUS ESD protection.
Available in the following sizes:
- FM52X3 – 2’x3′ single workstation

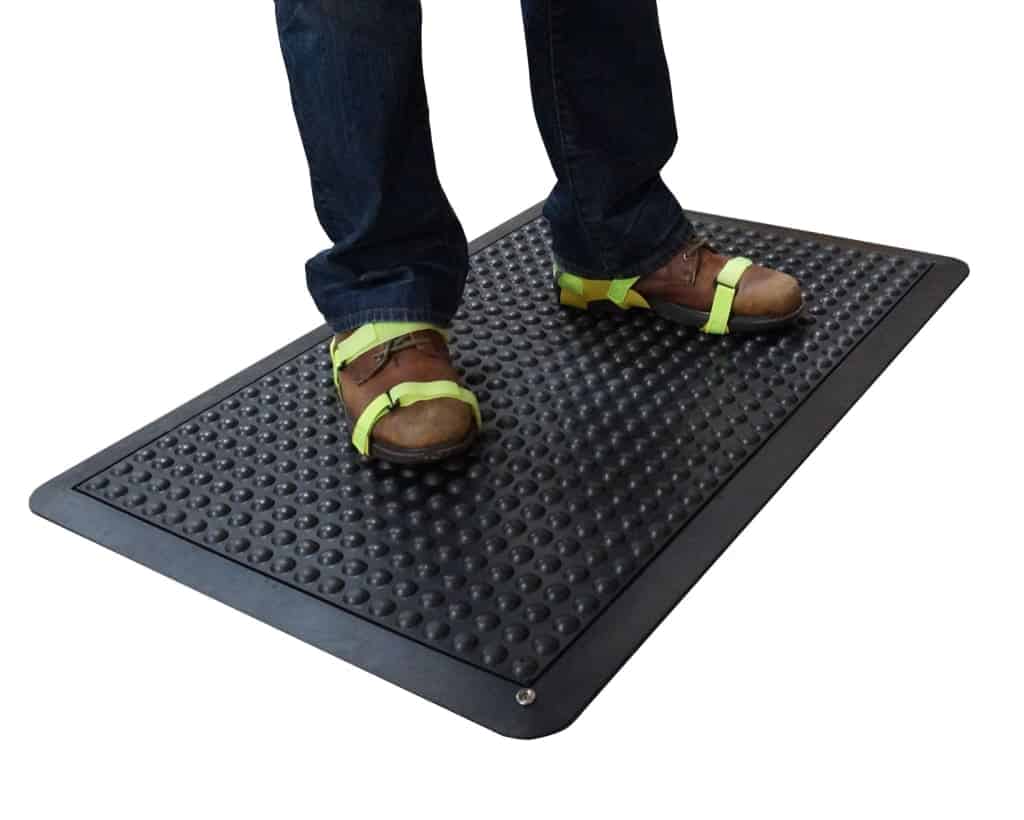

- FM53X4 – 3’x4′ single workstation
- FM53X4EP – 3×4′ interlocking sections – End Piece
- FM53X4IC – 3×4′ interlocking sections – Center Piece

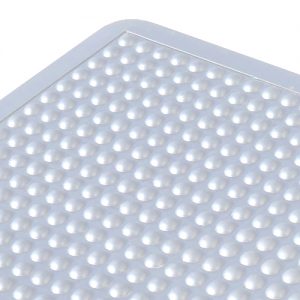

Evenly spaced ComfortDOMES on the conductive surface of the mat provides superior anti-fatigue relief because ComfortDomes get softer as compressed, not harder like products made with foam. ComfortDOMES recover/rebound more rapidly than most foam resulting in an energizing responsiveness not found in other mats. ComfortDOMES function like a spring to return energy. The unique “air pocket” structure becomes softer as compressed. ComfortDOMES rebound instantly as weight is shifted.
ESD Anti-fatigue mats provide a path-to-ground for workers wearing ESD footwear as well as reduce worker discomfort from standing for long periods
Specification & Installation
Transforming Technologies guarantees that our ComfortDOME Anti-Fatigue Mats operate in the ideal conductive range – with surface resistance between two points (RTT) of 1.0 x 10^3 – 1.0 x 10^5 ohms. ComfortDOME Mats drain static charges efficiently and will act as part of the path-to-ground for an operator wearing ESD footwear. ComfortDOME matting should be installed and properly grounded to an approved and tested ground point. The mats do not require grounding when placed on an ESD floor that measures within the user’s specified limits. This mat can also work on a static dissipative floor without grounding. Proper cleaning and maintenance as well as resistance measurements must be undertaken regularly to ensure the ongoing effectiveness of the ComfortDOME conductive surface.
Meets or exceeds requirements of ANSI/ESD S20.20 per ANSI/ESD STM7.1.
Why Ergonomic Anti-Fatigue Mats
Ergonomic matting is designed to work with the human body to ease the tasks that the body performs. In the case of a standing work station, anti-fatigue mats are of critical importance in reducing short-term fatigue and discomfort from standing for long periods of time.These benefits also lead to real savings through increased productivity and worker moral, and decreases in sick leave, workers’ compensation claims and substandard production due to operators’ lack of concentration caused by fatigue.
|FM52X3||Dome Anti-Fatigue Mat, 2' x 3'||Each|
|FM53X4||Dome Anti-Fatigue Mat, 3' x 4'||Each|
|FM53X4EP||Dome Anti-Fatigue Mat, 3' x 4', Interlock, End Piece||Each|
|FM53X4IC||Dome Anti-Fatigue Mat, 3' x 4', Interlock, Center Piece||Each|
