Showing all 11 results
CS1090 ESD Universal Snap Kit, 10mm
The Transforming Technologies CS1090 Universal Snap Kit includes a 10 mm stud, 10 mm socket, threaded backing washer, conical nut, long screw, short screw, and ESD common point ground label. Everything needed to field-install a stud or socket on all soft materials up to 0.375″ thick. Screws are 6-32 Flat Head Phillips machine screws; one 0.25″ long and one 0.375″ long. Punch a hole through the mat and screw on the socket or stud, whichever is preferred. All that is needed is a Phillips screwdriver.
Benefits & Features of the Transforming Technologies CS1090 Universal Snap Kit:
Install 10 mm snaps or studs to ESD work station materials
Includes 2 screws (floor and table mat lengths)
1 each: 10 mm socket, 10 mm stud, washer and screw base

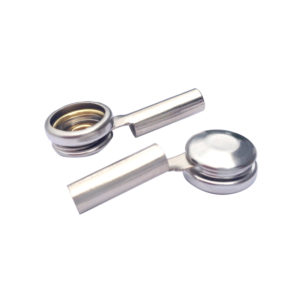

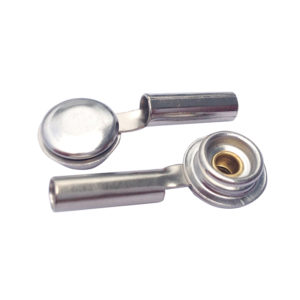

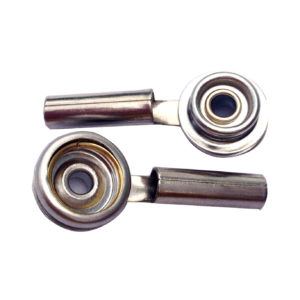

CS126 Series Stacking Snap Adpaters
The CS126 series snap adpaters from connects a banana jack to an ESD mat. Easily connect a wrist strap, ground cord, or constant monitor and they are well grounding ESD mats on carts. The banana jacks are available with 10mm male stud, 10mm female socket or with both a male and female.
CS126-stud: 10mm Stud
CS126-socket: 10mm Socket
CS126-stud&socket: 10mm Socket and Stud

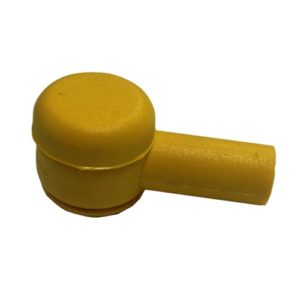

CS0127 Molded Banana Jack Snap
The CS0127 Molded Banana Jack Snap from Trans-forming Technologies adds a banana jack to a table mat. Fully molded in plastic, the CS0127 has both male and female 10mm snaps with a banana jack and is compatible and interchangeable with standard banana jacks. The CS0127 can connect to a wrist strap, ground cord, or constant monitor and is excel-lent for grounding carts.
Molded plastic with metal snaps
Side 1: Male Stud; Side 2: Femal Socket

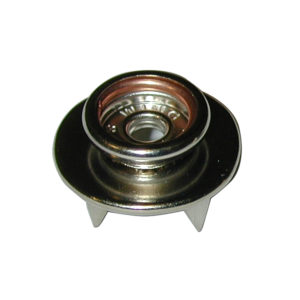

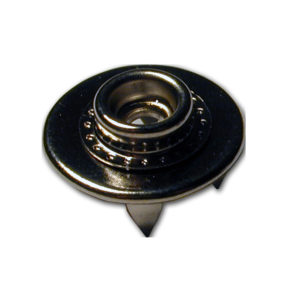

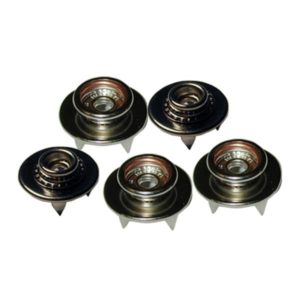

CS1000 Push and Clinch Grounding Snaps – 10mm
Grounding snaps are used to connect a ground cord to a work surface static safe mat or a ESD floor mat. An antistatic floor mat or ground mat is one of a number of antistatic devices designed to help eliminate static electricity. It does this by having a conductive material embedded within the mat that collects the static. The mat would need to be grounded (earthed). This is usually accomplished by plugging into the grounded line in an electrical outlet.Pronged Push and Clinch snaps are ideal for multi-layered surfaces and come as a male stud or female socket and are offered in 10 mm (3/8) size.
AD22 Banana Jack Outlet Adapter
Transforming Technologies AD22 converts a standard approved pre-tested facility electrical outlet into a groundable point for wrist straps and other grounding hardware with banana plugs (0.162 – 0.164″ ± 0.002″ ID).
Meets or exceeds requirements of ANSI ESD-S20.20 and ANSI/ESD S-6.1
