Ground Cords

Showing all 14 results

GK1000 ESD Table Mat Grounding Kit

Easy to install kit to ground ESD table matting and up to two ESD wrist straps. Transforming Technologies GK1000 Table Mat Ground Kit offers the hardware required by ANSI/ESD S-6.1 and
More Info
  • Easy to install kit for grounding ESD table mats
  • Includes 15ft low profile ground cord, and a universal snap
  • Universal snap kit easily installs a ground snap into a range of mat thicknesses
    • User installable with a screwdriver
    • Installs a 10 mm snap or stud to ESD workstation materials
    • Includes 2 screws for thick and thin materials
    • 1 each: 10 mm socket, 10 mm stud, washer and screw base

Add to quote

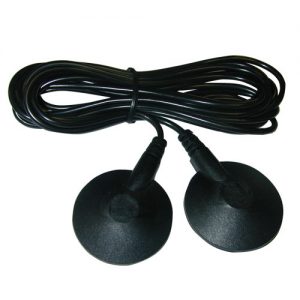

FM2525NR Table Mat Interconnect Ground Cord

FM2525NR Table Mat Interconnect Ground Cord
The FM2252NR ground cord is used to interconnect two ESD worksurfaces together when unable to connect individually to ground. The FM2525NR is a straight cord with male snap fasteners at each end
More Info
  • The FM2525NR ground cord is used to interconnect two monitored work surfaces when unable to connect individually to ground.
  • Comes with two molded low profile mushroom caps with 3/8” (10mm) male snaps to ensure a secure connection to mats.
  • Length: 10ft long
  • Resistor: No Resistor (Zero Meg)
  • Snap Size: 10mm Male Snaps

Add to quote

GK2000 ESD Floor Mat Grounding Kit

Kit includes everything needed to ground ESD floor matting. The GK2000 Floor Mat Ground Kit offers the hardware required by ANSI/ESD S-6.1 and ANSI/ESD-S20.20 to ground an ESD floor mat. The
More Info
  • Kit includes everything needed to ground ESD floor matting.
  • Includes 15ft low profile ground cord, and a 10mm universal snap that can work with male or female snaps
  • Can be installed with a Philips head screw driver.
  • Snap includes two screw lengths for thick or thin material

Add to quote

CP1518 Common Point Ground, 15’Long, with a 10mm Male Snap, 1 Meg Resistor

A versatile Common Point Ground Cord that connects multiple aspects of an ESD workstation to ground. Transforming Technologies CP1518 common point ground cord offers the common point ground
More Info
  • A versatile Common Point Ground Cord that connects multiple aspects of an ESD workstation to ground.
  • Equipped with two standard banana jacks – Grounds up to two operators at the same time
  • Molded head has a 3/8″ male snap for worksurface attachment
  • Length: 15ft ground wire
  • Connection to Ground: A 1/8″ (#10) ring terminal attaches to the center screw of an outlet or other ground points
  • Meets or exceeds requirements of ANSI/ESD S20.20 and ANSI/ESD S-6.1.

Add to quote

CP1518-BD Common Point Ground, 15’, 10mm Female, 1 meg

A  common point ground cord with a bull dog clip for easy connection to ground in the field. The CP1518BD ground cord offers the common ground point required by ANSI/ESD S-6.1 and
More Info
  • Common point ground cord best used with a field service kit
  • Bull dog grounding clip for a solid but temporary connection to ground
  • Cord Length: 15ft
  • Snap: 10mm Female Snap
  • Has two banana jacks to ground up to two wrist straps

Add to quote

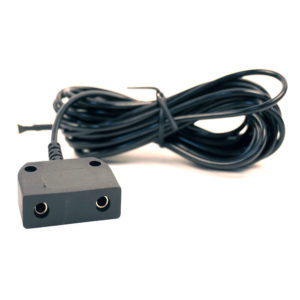

CP2522: Low Profile Common Ground Point Cord,10mm Male, 1 Meg

Low profile common point ground cord
Low profile common point ground cord that can ground two wrist strap and a table. The CP2522 low profile ground cords are highly durable and reliable ground cords. Equipped with two standard
More Info
  • Common point ground cord for two wrist straps and ESD mat
  • Low profile molded head with 10mm male snap
  • Length: 15ft long
  • 1meg resistor for safety (available without resistor)
  • 10mm female sockets. Cords available with a male stud

Add to quote

CP2522NR: Low Profile Common Ground Point Cord,10mm Male, No Resistor

Low profile common point ground cord
Low profile common point ground cord that can ground two wrist strap and a table - does not include a resistor. The CP2522NR low profile ground cords are highly durable and reliable ground cords.
More Info
  • Common point ground cord for two wrist straps and ESD mat
  • Low profile molded head with 10mm male snap
  • Length: 15ft long
  • Does not include a resistor (available with a 1meg resistor – CP2522 ground cord )
  • Cords available with both male studs and female sockets

Add to quote

CP2524: Low Profile Common Ground Point Cord,10mm Female Snap, 1 Meg

Low profile common point ground cord
Low profile Common Point Ground Cord with a 10mm female socket that can ground two wrist strap and a table mat. The CP2524 low profile ground cords are highly durable and reliable ground cords.
More Info
  • Common point ground cord for two wrist straps and ESD mat
  • Low profile molded head with 10mm female snap
  • Length: 15ft long
  • 1meg resistor for safety (available without resistor)
  • Cords available with both male studs and female sockets

Add to quote

CP4070- Metal Bench Mount Ground Cord

Metal Bench Mount Ground CP4070 The CP4070 Metal Bench Mount Common Point Ground (CPT) offers the common ground point required by ANSI/ESD S-6.1 and ANSI/ESD-S20.20. The metal bracket mounts
More Info
  • Provides a common grounding point for one or two wrist straps
  • Specially designed for use at ESD workstations and ESD table mats
  • Mounts under workbench with two included screws. Provides a grounding point that is convenient and off of the workstation so it will not interfere with work.
  •  Includes two parking studs (4mm) for storing cords when not in use.
  • Ring terminal at end of ground cord allows easy attachment to electrical ground
  • Made of heavy duty 0.05 inch anodized aluminum with 15 feet ground wire

Add to quote

CP4822: Quad Common Point Ground Cords

Quad Common Point Ground CP4822 provides 4 banana receptacles to ESD items on your work area. Transforming Technologies CP4822 is a workstation ground cord with four banana jack receptacles for
More Info
  • COMMON POINT GROUND: Provides four banana jack receptacles for a ground point for wrist straps, coil cords, matting or accessories in the area:
  • DESIGN: Made with a low profile, molded head to reduce its footprint
  • LONG LIFE: Made with durable materials for long life
  • Resistor: No resistor
  • Ring Type: #10 for connection to an outlet or other ground point
  • Length: 15′ ground lead
  • SNAP SIZE: 10mm snap to connect to table

Add to quote

FM1515NR Low Profile Floor Mat Ground Cord – Male Snap, 15ft Long – No Resistor

Low profile floor mat ground cord without a resistor easily attached to mats and does not get in the way.   The FM1515 low profile ground cords are highly durable and reliable ground cords. A
More Info
  • All-Purpose: A universal ground cord for ESD Floor Mats.  Can also be used with ESD table mats if banana jacks for wrist straps are not needed.
  • Safety: Low profile molded mushroom cap reduces potential trip hazards
  • Standards: Offers common ground point required by ANSI/ESD S-6.1 and ANSI/ESD-S20.20
  • Snap: 10 mm male stud snap ensures a secure connection to floor mats.
  • Length: 15′ straight cord
  • Resistor: No Resistor
  • Ground Connection: 0.125″ ring terminal to attach to grounding point

Add to quote

FM1517 Low Profile Floor Mat Ground Cord – Female Snap, 15ft Long

Low profile floor mat ground cord easily attached to mats and does not get in the way. The FM1517 low profile ground cords are highly durable and reliable ground cords. A molded low profile
More Info
  • All-Purpose: A universal ground cord for ESD Floor Mats.  Can also be used with ESD table mats if banana jacks for wrist straps are not needed.
  • Safety: Low profile molded mushroom cap reduces potential trip hazards
  • Standards: Offers common ground point required by ANSI/ESD S-6.1 and ANSI/ESD-S20.20
  • Snap: 10 mm female socket snap ensures a secure connection to floor mats. Also available with a male stud.
  • Length: 15′ straight cord
  • Resistor: A buried 1 Meg resistor for safety.
  • Ground Connection: 0.125″ ring terminal to attach to grounding point

Add to quote

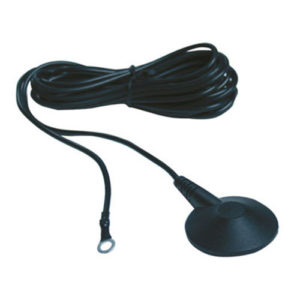

FM1515 Low Profile Floor Mat Ground Cord – Male Snap, 15ft Long

Low profile floor mat ground cord easily attached to mats and does not get in the way. The FM1515 low profile ground cords are highly durable and reliable ground cords. A molded low profile
More Info
  • All-Purpose: A universal ground cord for ESD Floor Mats.  Can also be used with ESD table mats if banana jacks for wrist straps are not needed.
  • Safety: Low profile molded mushroom cap reduces potential trip hazards
  • Standards: Offers common ground point required by ANSI/ESD S-6.1 and ANSI/ESD-S20.20
  • Snap: 10 mm male snap ensures a secure connection to floor mats. Also available with a Female Sockets
  • Length: 15′ straight cord
  • Resistor: A buried 1 Meg resistor for safety.  Also available with No Resistor
  • Ground Connection: 0.125″ ring terminal to attach to grounding point

Add to quote

FM2000 Center Snap Common Point Ground Cord System

The FM2000 field service ground cord reduces the number of cords to carry with a field service kit.  Transforming Technologies FM2000 Common Point Ground Cord System with the unique large center
More Info
  • The FM2000 field service ground cord reduces the number of cords to carry with a field service kit.
  • Unique large center snap and two grounding connections allow for grounding of a wrist strap and work surface through the same cord.
  • The 10’ (extended length) coiled cord section snaps to technician’s wrist band; the 5’ (extended length) coiled cord section terminates in a standard banana plug which connects to ground either directly or by way of the AC1000 Alligator Clip (included).
  • Each of the ground cord sections has its own independent one megohm resistor for user safety.
  • Commonly used with Field Service Kits.
  • Meets or exceeds requirements of ANSI ESD-S20.20. Offers the common point ground required by ANSI/ESD S-6.1 and ANSI/ESD-S20.20.

Add to quote
