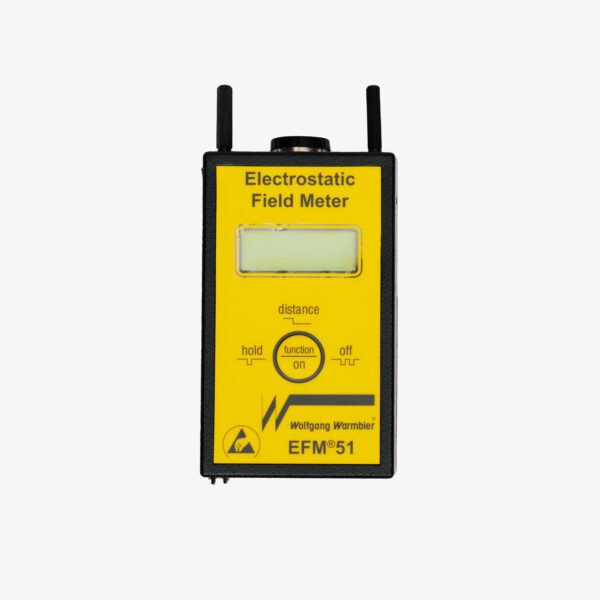

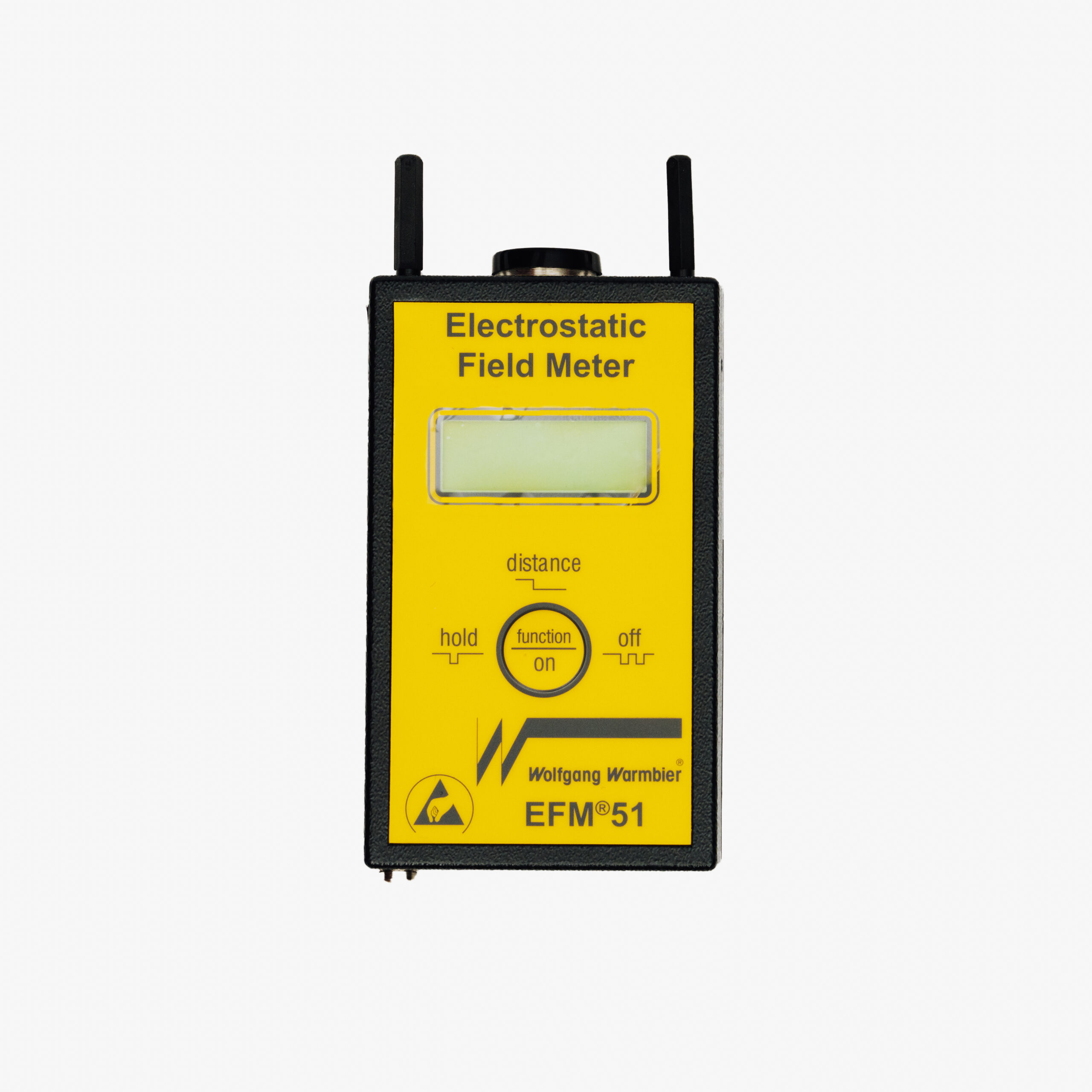

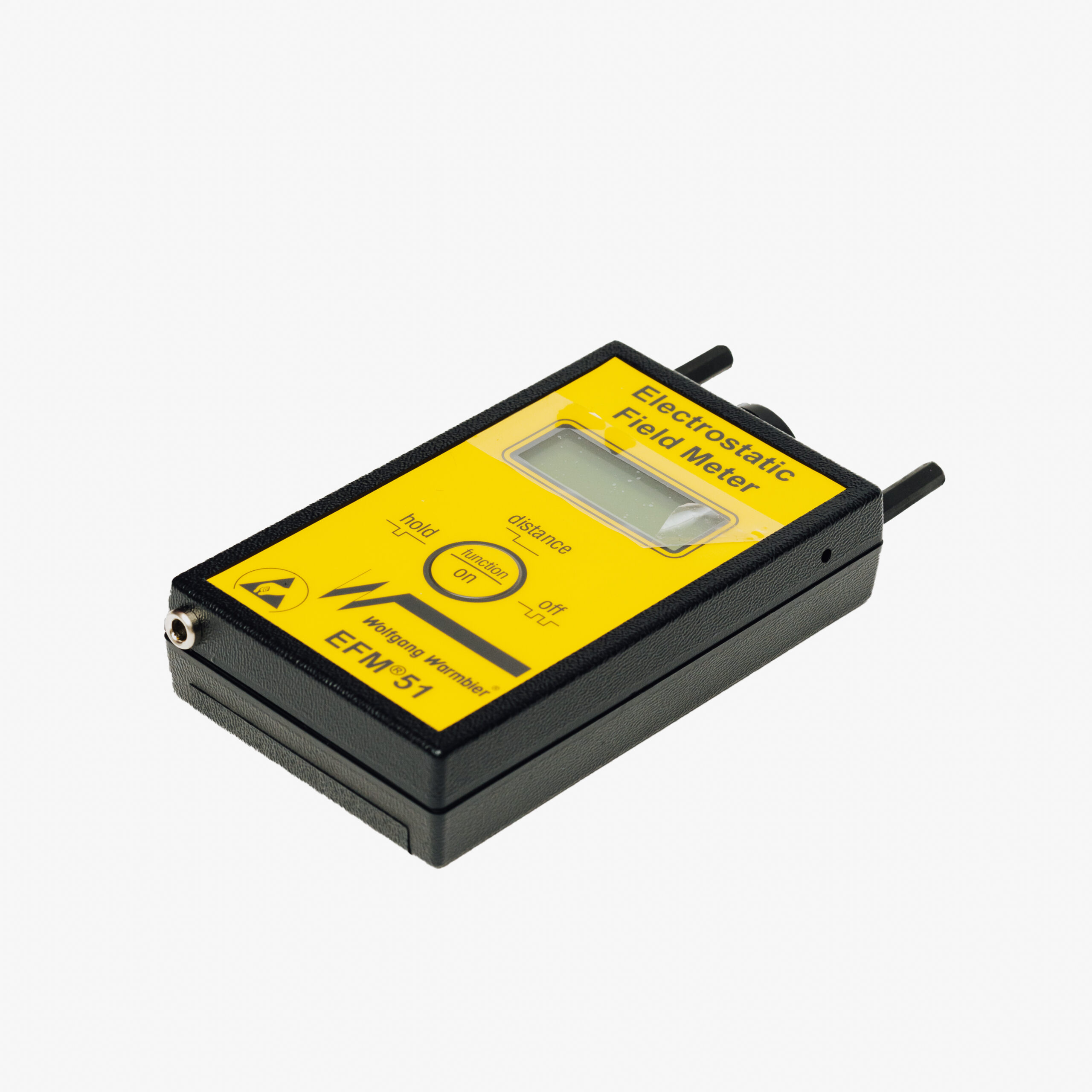

Warmbier EFM51 Electrostatic Field Meter

Item #: 7100.EFM51

  • Measures static voltages within ±20kV (20,000V)
  • Two LED guide ring lights help position the field meter

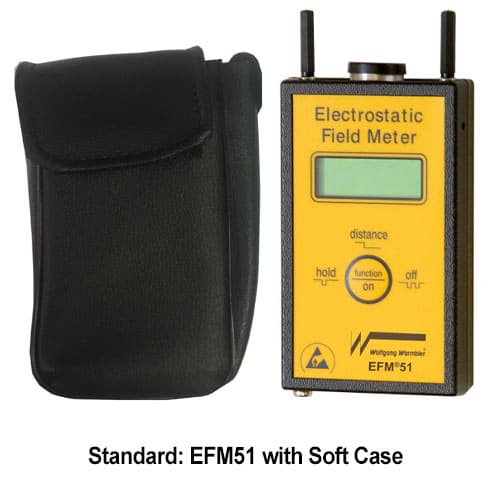

  • Storage bag including ground cable and clip
  • Pocket-size
  • Verify Ionizer with EFM51.CPS “Charge Plate Set”
Clear
    • 0 $
Quantity:

Description

The Wolfgang Warmbier EFM51 is a handheld meter to quickly detect and measure electrostatic charge accumulation on surfaces.

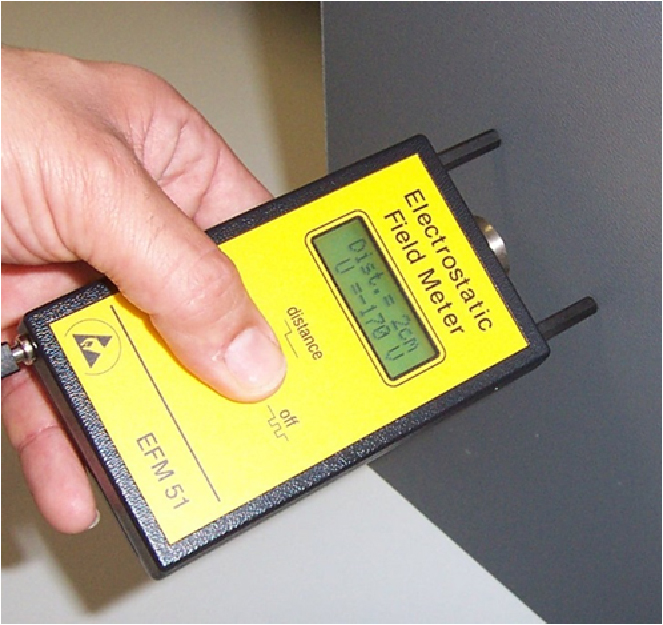

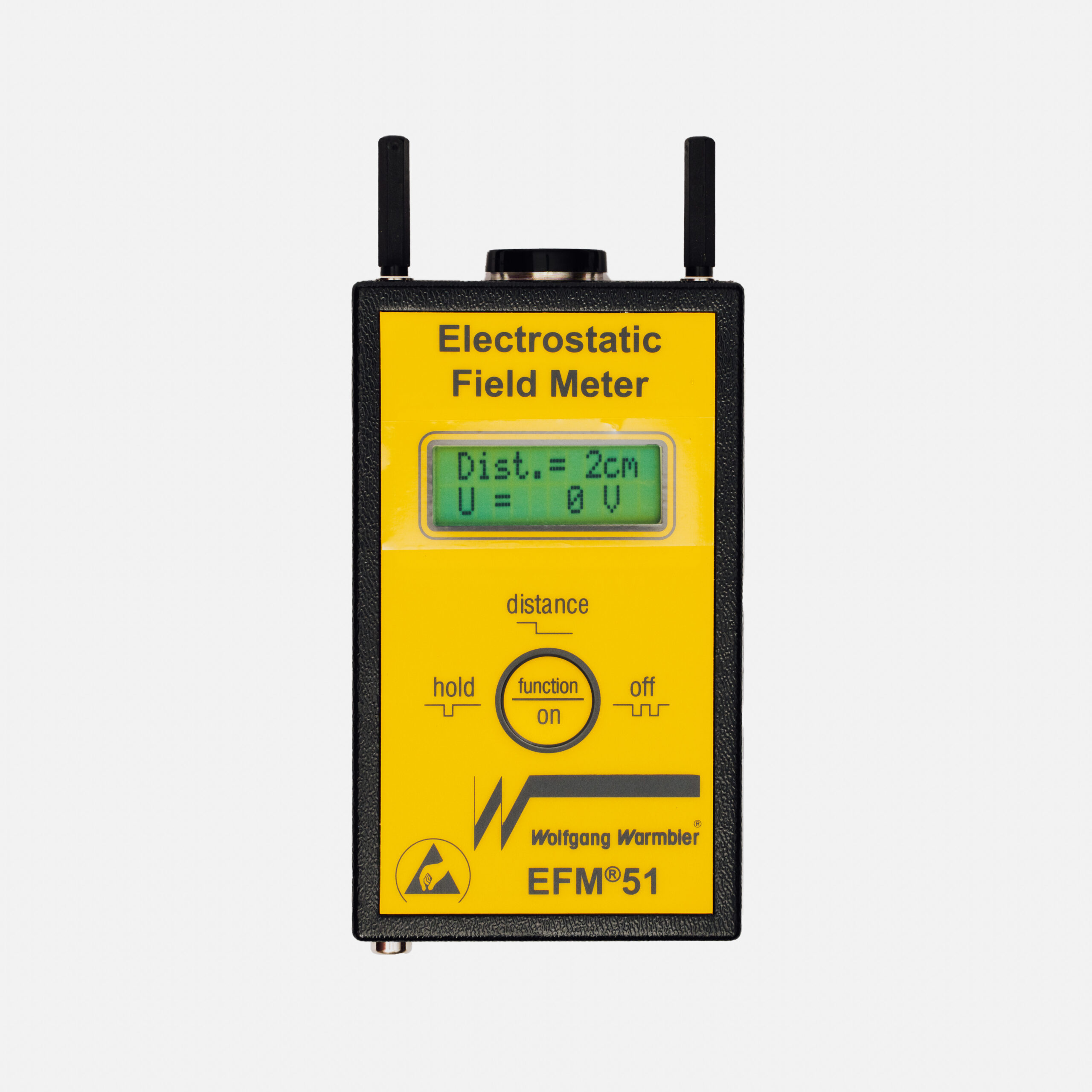

The EFM51 is a full-featured hand-held field meter used to perform static surveys and evaluate charge accumulation in electronic manufacturing and in industrial operations. The EFM51 measures static voltages within ±20kV (20,000V) with a microcontroller that calculates the field strength (V/m) with a pre-selected distance (1cm, 5cm, 10cm and 20cm). Results are displayed via a 12 digit alphanumeric LCD screen. Two LED guide ring lights help position the field meter at the right distance from a charged test object.

Ionizer Performance Analyzer – Not Included
EFM51 may be supplemented by the EFM51.CPS “Charge Plate Set” and can also be used to check and verify ionizer efficiency and offset voltage. The kit measures static decay times from +/- 1.000volts to +/- 100volts.

The EFM51 meets periodic test requirements per Compliance Verification ESD TR53 and conforms to ANSI/EOS/ESD (S4.1, S7.1, S12.1, S2.1).

Benefits & Features of the Wolfgang Warmbier EFM51 Static Field Meter:

  • Measures static voltages within ±20kV (20,000V)
  • Two LED guide ring lights help position the field meter
  • Storage bag including ground cable and clip
  • Pocket-size
  • Verify Ionizer with EFM51.CPS “Charge Plate Set”

Request Quote

Use the form below to request a quote. You can also build a quote using the "Add to Quote" button. It works like a common shopping cart, except you receive a quote instead.

Additional information

Version

Standard, Plus, Charge Plate Set, Walking Test

Display

2 lines, 12 digits alphanumeric LCD display

Operating Time

Approx 10 hours at continuous operation with alkaline battery

Warranty

1 Year (Manufacturer Defects)

Part Numbers

Part NumberDescriptionSales Unit
7100.EFM51Electrostatic Field Meter EFM® 51 Each
7100.EFM51.CPSElectrostatic field meter with Charge Plate EFM® 51 with charge plate setEach
7100.EFM51.CPS.SETCharge Plate Set for the EFM51 (Meter Not Included)Each
7100.EFM51.PLUSElectrostatic field meter with Conductive Black CaseEach
7100.EFM51.WTElectrostatic Field Meter with Walking Test Kit EFM® 51 Each
7100.EFM51.VKElectrostatic Field Meter EFM® 51 Verification KitEach
