IN5140 Ionizer
IN5140-ionizerIN5140-ionizer-open-fan-coverIN5140-ionizing-static-eliminating-blower2

Ptec™ IN5140 Bench Top Ionizer

Item #: IN5140

  • Remove Static Charges Quickly and Efficiently
  • Perfect for Single Station Table Top, Bench or Desk Use
  • Small Footprint – Does Not Take Up Space
  • Adjustment Limiting Design Locks in Correct Air Flow for Each Application
  • Removeable Emitter Point Array and Fan Guards Makes Service and Maintenance a Breeze
  • Standard Products Works on All Power Circuits: 100-240v

6 in stock

Quantity:

Description

Benchtop Blower Ptec™ IN5140
The Ptec™ IN5140 68KHz AC benchtop air ionizer is a small, efficient static elimination device with variable fan speed for protecting electronic components and general static protection. Using AC corona technology, to make the air more conductive, Ptec™ ionizers produce a balanced stream of positive and negative air ions that never need calibration. These devices are used in many industries and manufacturing applications where static electricity is a problem.

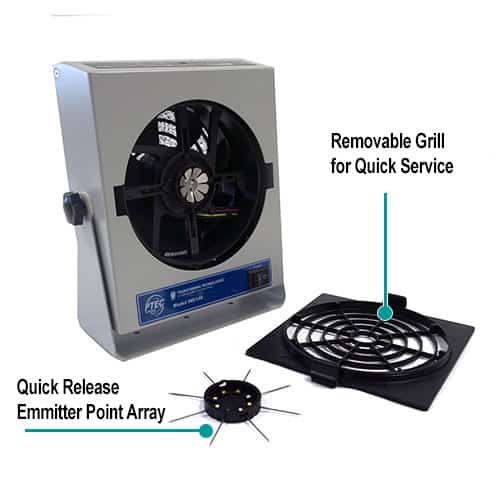

Maintenance Friendly Ionizer

The In5140 requires minimal service and maintenance and was designed to make it as simple as possible. The removable grills and the replaceable filter on the IN5140 simplifies emitter maintenance and tool downtime.

Removeable Emitter Point Array
The IN5140 features a “quick-lock” emitter point array that is easily removed by rotating the point base in a clockwise direction.  Quickly replace the entire array or replace individual emitter points.

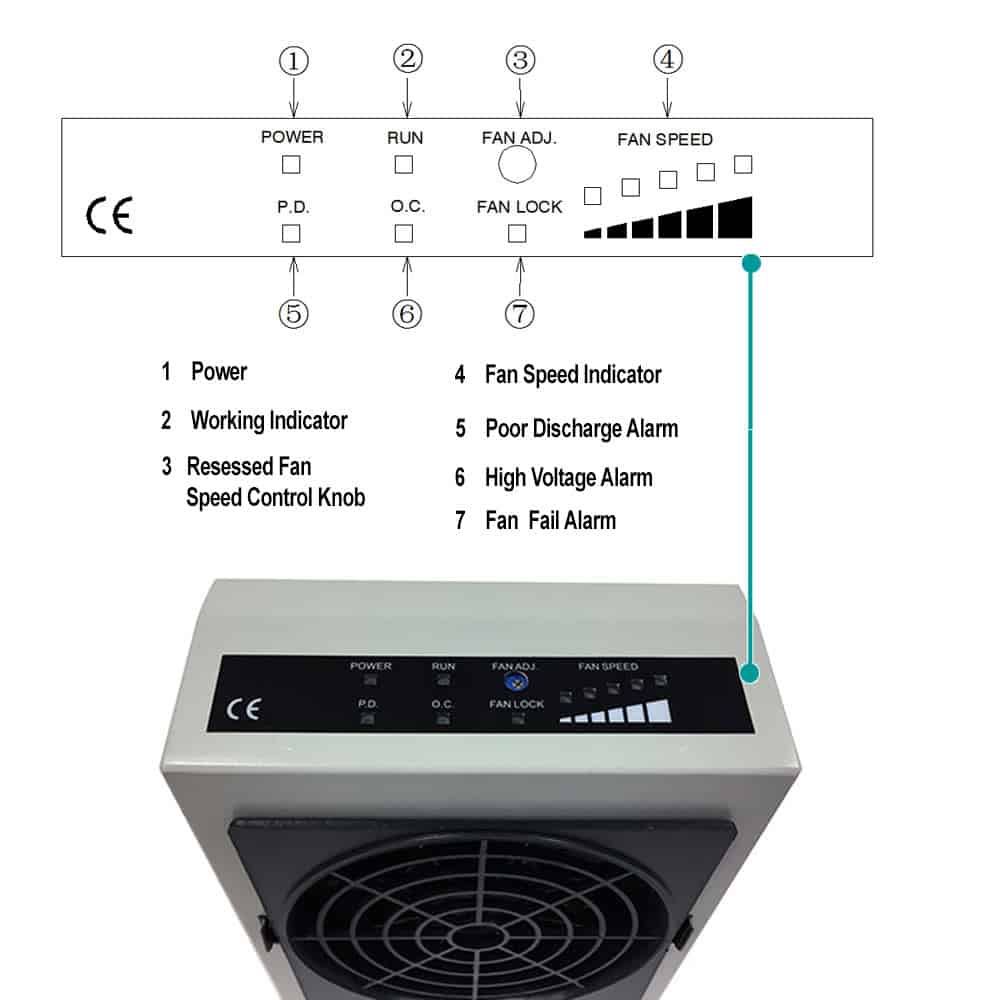

IN5140 Front Panel Controls

The IN5140 ionizer controls and indicators are prominently located on the front top panel of the ionizer.  The ionizer is designed with a feedback circuit that constantly checks for errors and will alarm if there are issues.  The ionizer monitors the following functions:

  • Discharge
  • Ionizer Power
  • High Voltage
  • Fan Function

Adjustment Limiting Design Locks in Correct Air Flow for Each Application.

The IN5140 has a recessed fan adjustment knob which limits the ability to adjust the fan speed of the ionizer.  Set the ionizer to the desired settings for your application without worry that someone will change the settings.  This will eliminate operators turning down the fan speed and putting sensitive components at risk.





About Ptec™ Technology

A specialized piezoelectric high voltage transformer makes Ptec™ ionizers among the most reliable ionizers manufactured. Small, lightweight and stable, Ptec™ products are designed to remain in balance and to alarm when the HV output affects performance. The model IN5110 benchtop static eliminator produces a 68KHz AC output of approximately 2200V and a continuous stream of balanced air ions. Ionizers that use Ptec™ technology do not require calibration and only minimal maintenance.

Power Requirements
The IN5140 can work on all power circuits, from 100-240volts, without any adjustments. This means the standard ionizer can be used in many different countries and power circuits and performance will not be affected.

Verification and Calibration:
The IN5140 ionizer comes factory calibrated and with a calibration certificate.  Ionizer performance can be tested and verified with a charge plate monitor. Important tests to perform are positive and negative decay times and ion balance. It is recommended to test ionizer performance at least 1 per year.

Additional information

Weight 4 lbs
Dimensions 12 x 10 x 10 in
Coverage

1ft. x 5ft. area

Decay

Less Than 1secs at 12in.

Balance

0 +/-10 volts

Power Input

100V-240V AC
