|Dimensions||16 x 12 x 4 in|
3XL, 4XL, 5XL, Large, Medium, Small, X-Small, XL, XXL

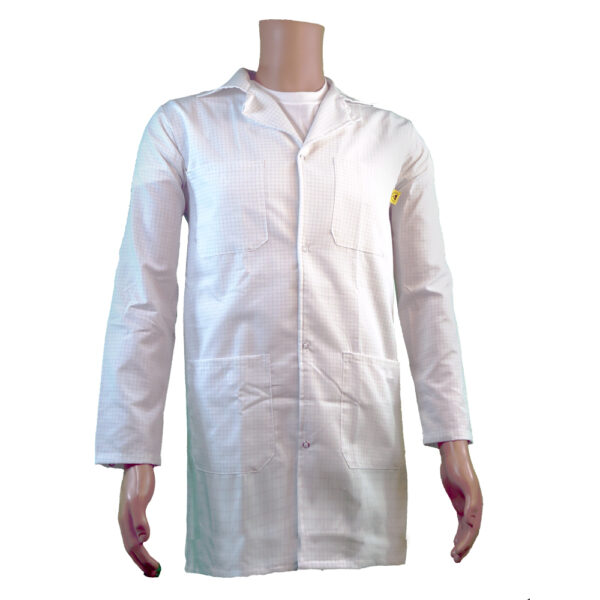

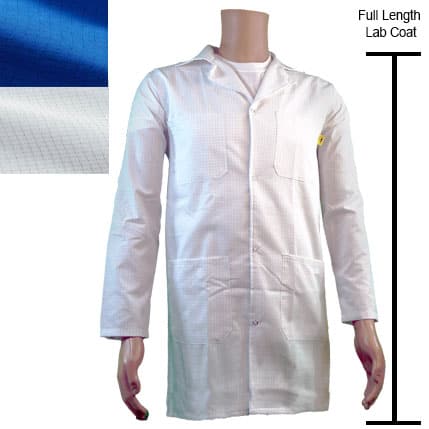

ESD Lab Coat
Full – To The Knee
Three Snap, ESD Knit
FG2600 Series – Nomex® Static Safe Hot Gloves – 11″
Have static protection and heat protection in a clean room compatible glove with the FG2600 series Nomex® gloves.
The FG2600 series Nomex® gloves are designed for printed circuit board, hybrid circuit, semiconductor and other processes that require handling objects at elevated temperatures without compromising cleanliness or potential damage to static discharge. The 11” gloves allow you to have static control and significant heat protection in one cleanroom compatible glove.
FG Series gloves are made of continue filament yarn which reduces particle generation. They are compatible for use in controlled environments.
Specifications: Face fabric : 99% Nomex® and 1% carbon yarn. The gloves resist 300° C according to ASTM F 1050 Modified. Independent testing is available on request. (The melting temperature of Nomex® is 450 ℃)
Composition: 9% Nomex®(face side)+1% Conductive Yarn. Electrical: < 10 x e10
Application and Usage
Semiconductor, SMT Assembly, Disk Drive. Applications that require thermal glove protection, static and contamination control. Available in two convenient lengths.
|FG2601||Static Safe Hot Gloves 11" Small||Pair|
|FG2602||Static Safe Hot Gloves 11" Medium||Pair|
|FG2603||Static Safe Hot Gloves 11" Large||Pair|
|FG2604||Static Safe Hot Gloves 11" X-Large||Pair|
|FG2605||Static Safe Hot Gloves 11" 2X-Large||Pair|
ESD Jackets: Heavy Weight 5049 Fabric, Lapel Collar,
Heavyweight polyester and cotton fabric makes this ESD jacket more comfortable to wear and warmer than polyester ESD smocks.
Superior workmanship provides reliable panel to panel continuity of the garment. The 5049 Series Garment maintains consistent continuity readings for up to 100 wash cycles. This ESD Jacket features a three snap cuff for proper fit adjustment.
Cleaning / Washing
Machine Wash Warm. Do Not Bleach. Do Not Add Detergent or Softener. Cool Tumble Dry or Hang. Remove Promptly. Surfactants such as laundry detergent and fabric softeners can chemically break down the black carbon static shielding fabric woven into ESD smocks and lab coats. Do not add them to wash.
FG6200 – FG series Nomex® Static Safe Hot Sleeves
Have static control and significant heat protection in a cleanroom compatible heat sleeve.
Comfortable and washable, these heat-resistant sleeves protect upper arms from elevated temperatures applications without compromising cleanliness or potential damage due to static discharge. The FG series Nomex® hot sleeves are designed for printed circuit board, hybrid circuit, semiconductor and other processes that require handling objects at high temperatures. They fit easily over most gloves.
FG Series hot sleeves are made of continuous filament yarn which reduces particle generation. The face fabric is made from 99% Nomex®* and 1% carbon yarn. (The melting temperature of Nomex® is 450).
They are compatible for use in controlled environments such as cleanrooms.
ESD Jackets: Lightweight 8812 Fabric, Lapel Collar, Knit Cuff
Lightweight, breathable fabric makes this jacket perfect for warm environments and ESD Knit Cuffs allow for hands-free grounding.
The 8812 Lapel Collar jackets are fabricated from light weight 88% polyester and 12% carbon fabric for unmatched operator comfort. Excellent for warm environments. Superior workmanship provides reliable panel to panel continuity. The JKC Series 8812 jackets maintains consistent continuity readings for up to 100 wash cycles. Available in light blue, maroon and white.
Knit Cuff “Hands-Free” Smocks are worn with wrist straps attached inside the left hand cuff, and coil cords for the wrist strap attached to the left hip pocket. The wrist strap is connected to the coil cord at the snap via a “dedicated ground seam” lining the inside of the left arm down the left torso to the snap. This frees the hands from dragging cords across nearby objects. The coil cord for the wrist strap can then be attached to a bench mount ground, common point ground, constant monitor, or free standing ground.
Cleaning / Washing
Machine wash warm. Do not bleach. Do not add detergent or softener. Cool tumble dry or hang. Remove promptly. Surfactants such as laundry detergent and fabric softeners can chemically break down the black carbon static shielding fabric woven into ESD smocks and lab coats. Do not add them to wash.
