HG1360XL - Heel Grounder - Stretch Hook and Loop Strap in Black - For Large Footwear

  • Ground mobile personnel with long-lasting stretch hook and loop ESD heel grounders
  • Designed to fit larger sized footwear, such as men’s sized 12 and above.
  • Reversible cup design allows for longer life
  • Stretch hook and loop strap creates a secure  and comfortable fit around shoe
  • Buried 1meg resistor for safety
  • Available in Black
Request Quote
Part Number: HG1360XL
Data Sheet

Ground mobile personnel with large size footwear with long-lasting stretch Hook and Loop ESD heel grounders.

The HG1360XL Heel Grounder is constructed from durable materials and features a stretch hook and loop closure strap to maximize fit and comfort. The cup is designed to fit larger sized footwear, such as men’s sized 12 and above.The cup of the HG1360XL Heel Grounder is a symmetrical design that can be reversed when put on to double the lifespan.

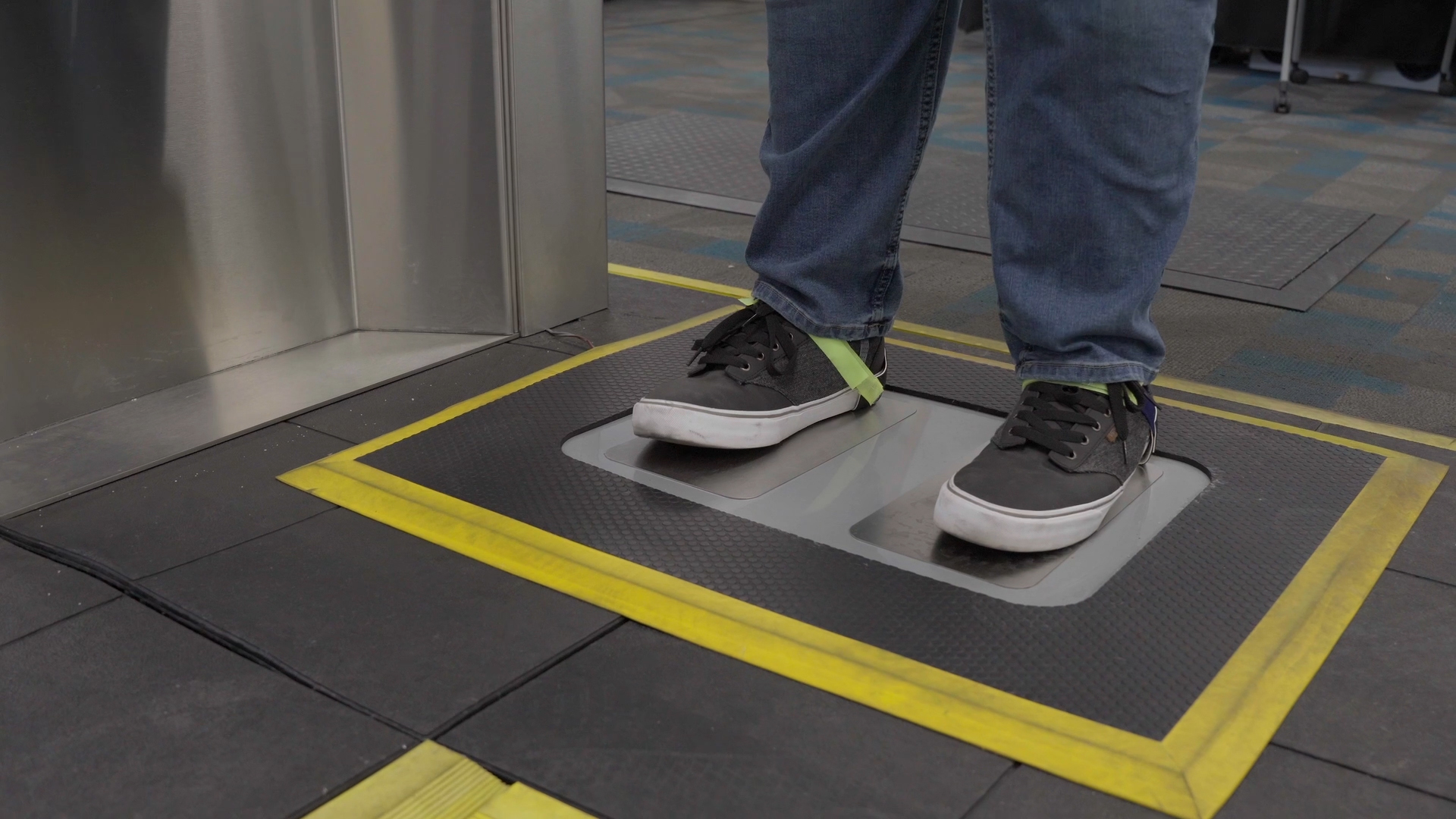

HG1360XL heel grounders connect the person wearing them to ground via a proper floor mat or flooring material. Wearing the conductive ribbon inside the shoe or sock assures proper electrical contact with the user. The ribbon connects to the conductive rubber to complete the circuit between the operator and the static controlled floor or mat.

A buried 1 meg ohm resistor ensures safety and is standard. HG1360XL heel grounders must be worn on both feet to provide consistent grounding while in motion.

Meets or exceeds requirements of ANSI ESD-S20.20.

Benefits & Features of the Transforming Technologies HG1360XL Heel Grounder:

  • Stretch Loop closure
  • Buried resistor
  • Larger, 1.25″ cup design

Specifications of the Transforming Technologies HG1360XL Heel Grounder:

  • Resistor: 1 meg ohm (+/- 5% tolerance), buried
  • Rubber exterior: Ribbon: Conductive yarn in gray polyester ribbon
  • Available in Black
  • For larger sized footwear:  Mens size 12 and above
