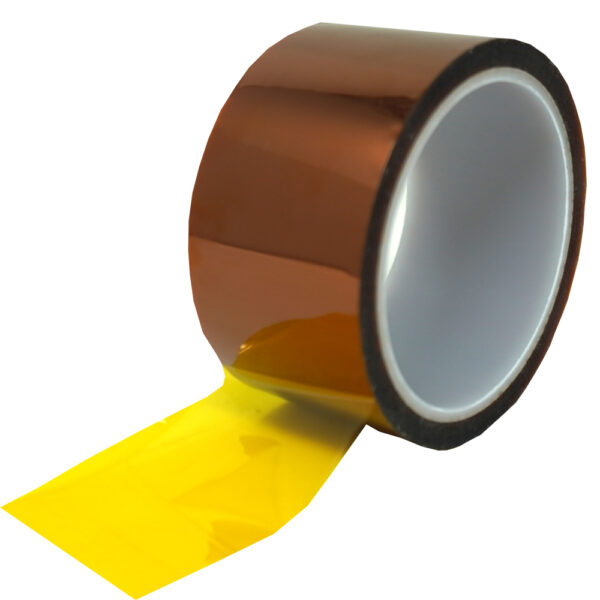

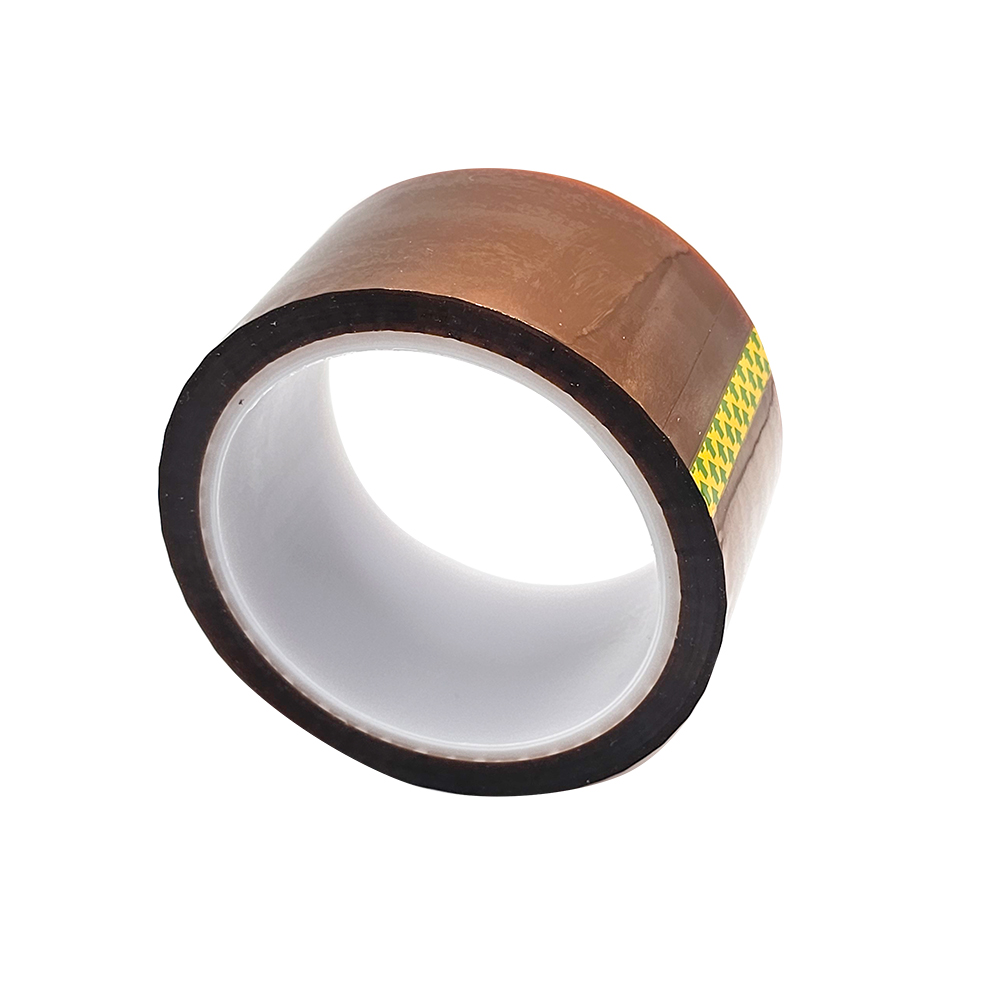

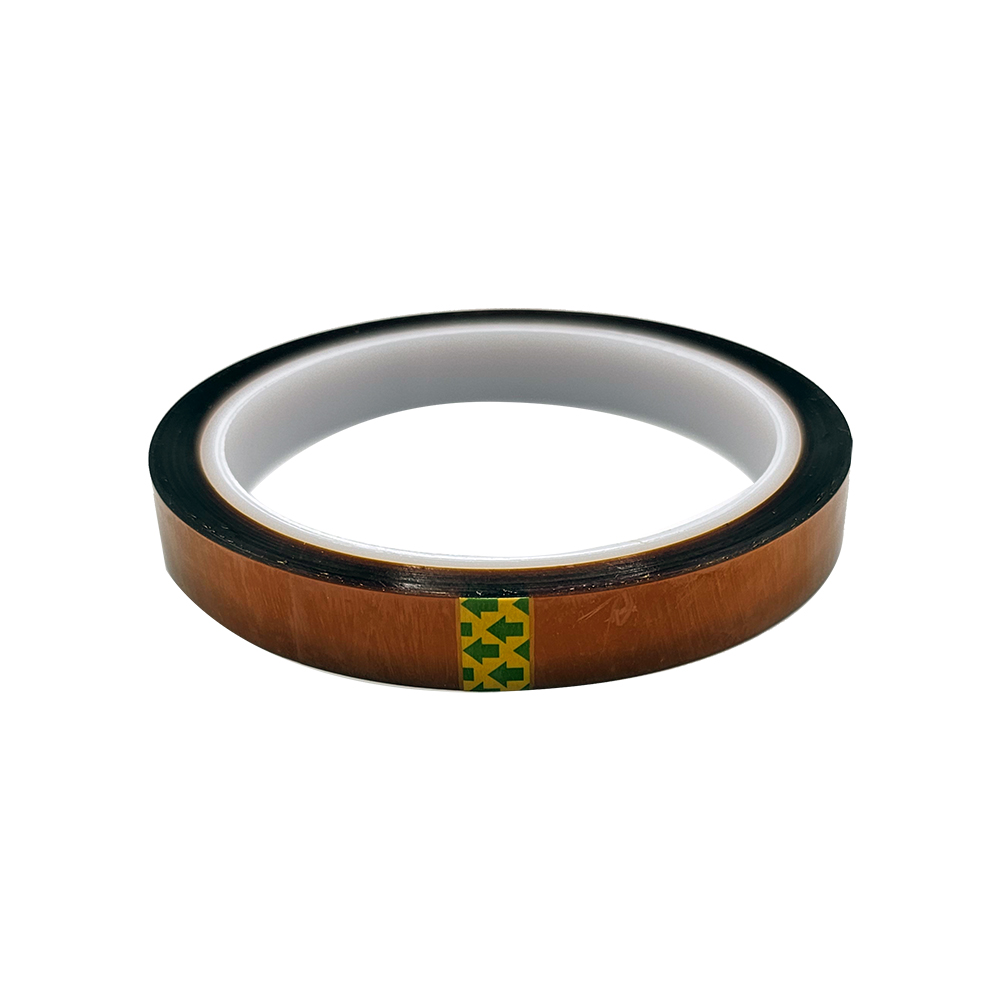

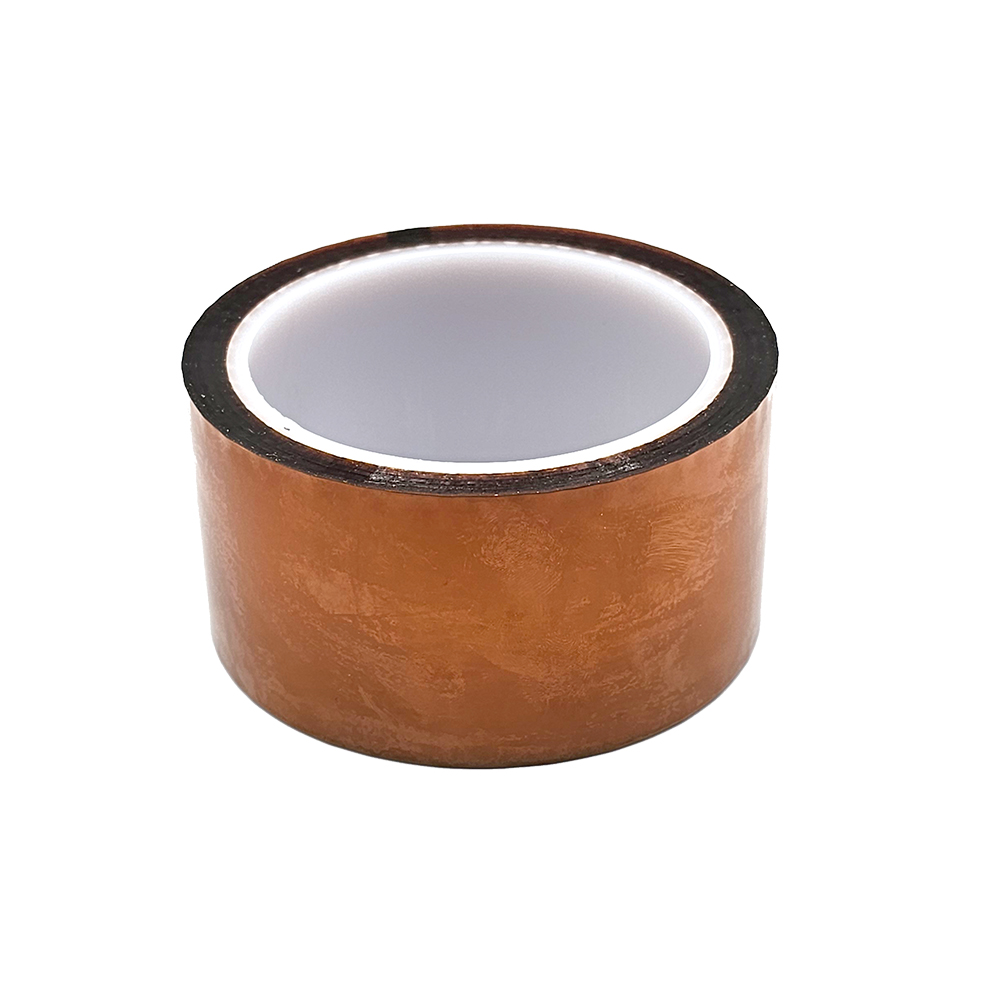

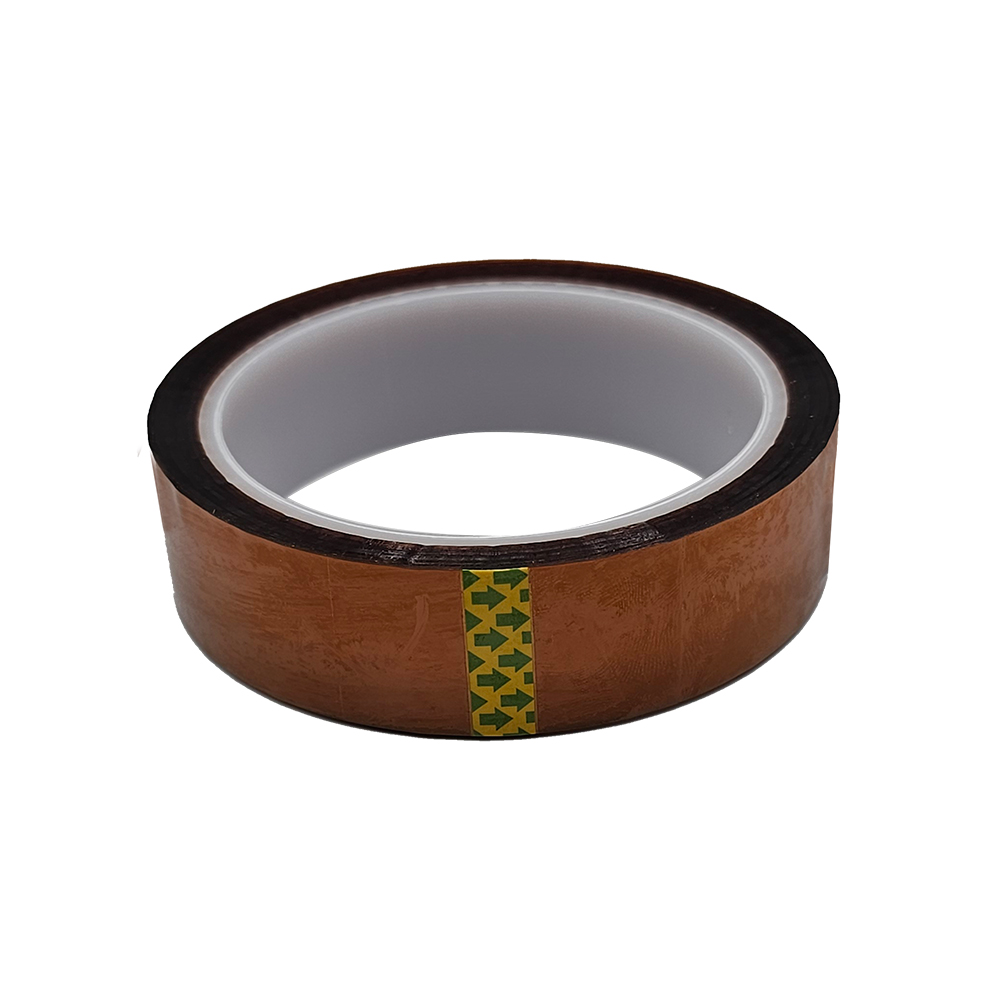

PT1000 Series 1 Mil Polyimide Film Tape

  • Low Charging Polyimide Tape
  • Thickness: 1 Mil (2.5 Mil Total)
  • Adhesive: Silicone Based
  • Backing: HN Polyimide Film
  • Temperature Range: -100°F to 500°F
  • Color: Amber
  • Tensile: 30 lbs/inch
  • Adhesion: 25oz/inch
  • Elongation: >55%
  • Sizes: Available in 1/4", 3/8", 1/2", 3/4", 1"2, 1 1/2" or 2" width with a length of 36 yards
SKU: PT1000
Price: $6.06 – $39.14
PT1000 Series 1 Mil Polyimide Film Tape

GuardianTM Poylimide Film Tape is used in electronics applications such as wave solder, printed circuit board and any other application that requires strength and temperature resistance.

GuardianTM Poylimide Film Tape offers outstanding thermal resistance, masking and excellent electrical insulating properties. The tape is use where durability, puncture resistance and ex-treme resistance to heat is required.

This tape is a thin strong polyimide film tape coated with a high performance silicone adhesive and has superior temperature resistance of up to 500F. The 1 mil amber colored tape has a total thickness of 2.5 mils, tensile strength of 30lbs/in , adhesion of 25oz/in

Meets or exceeds requirements of Mil-P46112B / ASTM D 5213, Type 1, Item A. U.L. Approval and RoHs Compliant.
