A Surface Resistance Test Kit capable of measuring a wide resistance range and complete the tests required for an ESD protection plan.

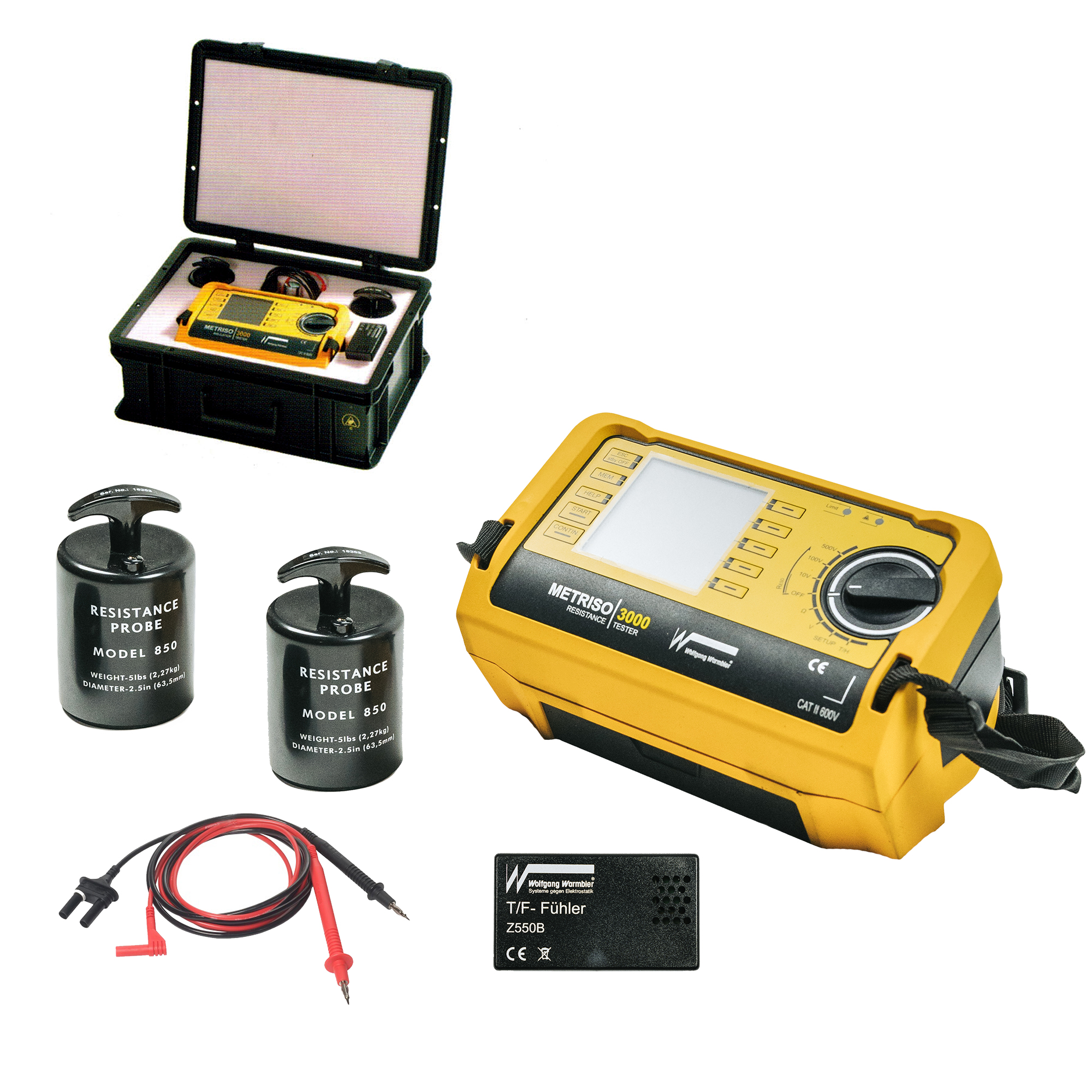

The METRISO 3000 test kit measures a wide range of values: low resistance from 1KilaOhm to 1.2 TeraOhm. The kit comes with two 5lb disc probes and has an integrated temperature and humidity gauge. Measuring voltage can be set between 10 – 500V and also be varied if desired.
All measured values can be stored in the instrument and, with the help of the included software transferred to PC via USB cable. With the software program readings can be handled, stored and measurement protocols can be printed.
METRISO 3000 can be supplemented with various probes; miniprobe (7220.840.SET) for control of e.g trays and conveyer lines, ringprobe (7220.880.SET) and handprobe for control of resistance to floors and shoes.
Test Performed
Resistance-to-ground
Resistance-point-to-point
Resistance-to-groundable-point
Volume resistance (with optional metal plate)
Measures temperature and humidity
Applications:
Evaluate packaging materials
Evaluate garments
Measure flooring, work surfaces and furniture resistance
Additional information
Type
Surface Resistance Meter
Display
LCD display
Measuring Range
1 KOhm to 1.2 TOhm
Power Supply
Battery Operated
Capabilties
RTT, RTP, RGTP, RTG, Volume Resistance, Test Footwear, Test Wrist Straps, Perform Tests For ESD Compliance
