Warmbier EFM51WT Field Meter Walking Test Kit

wolfgang-warmbier-7100-efm-51-wt-walking-test-kit

A hand-held meter used to test the performance of ESD floors in combination with a person per ANSI/ESD STM 97.2. and IEC Standard 61340-4-5.

The electrostatic charge of a person walking on an ESD safe floor with ESD safe footwear can be measured with the EFM51WT Walking Test Kit. This test provides measurement data on the actual charge on a person while walking which is used to determine the effectiveness of the floor/footwear grounding system.

The EFM51 holds the PEAK value of the measured body voltage, as well as the LIVE static voltage measured on the operator’s body.

The kit includes the EFM51 static field meter, walking test adapter plate, hand probe and conductive carrying case.  The EFM51 is a fully function field meter that in addition to the Walking Test, measures and detects electrostatic fields, surface potentials and discharge times (with optional charge plate accessory – p/n 7100.EFM51.CPS.SET.)

Product Video

Below is the procedure for the EFM51 walking test.

Prepare the EFM51

  1. The EFM should be placed into the grounded foam base that is on a flat surface near the floor to be tested.
  2. Hold the function button until “change mode” appears.  Press the button until “Max Value” appears (This is 6 button presses). This mode will becomes active in 2seconds.
  3. Hold the probe in one hand and perform the walking test:

The operator walks on the floor section in a six-step pattern and comes to rest with both feet on the floor specimen in front of the EFM meter. The step pattern requires forward and backward steps and a cross over step:walking test pattern for esd tests

Perform the test three times and record the results.



Reading the meter:

  1. The upper display line indicates the maximum positive and negative body voltage generated on the person when walking.
  2. The lower line indicates the minimum body voltage on the person.

Understanding the measurements:

Two sets of measurements are obtained during the procedure. The first measures voltage generation during the walking cycle and is defined as the Maximum Body Voltage. The second measures the voltage obtained at the end of the cycle with both feet on the floor specimen and is defined as the Minimum Body Voltage.



Request A Walking Test Floor Assessment

Contact Transforming Technologies today. You can also send us an email by filling out the request form below.



More Info
Add to cart

Add to quote

Warmbier Walking Test Kit WT5000 Electrometer

wolfgang-warmbier-WT5000-esd-walking-test-kit-web

Test and graph the performance of ESD floors in combination with a person per ANSI/ESD STM 97.2. and IEC Standard 61340-4-5.

The WT5000 Walking Test Kit has been designed to perform a voltage measurement of floor materials and footwear in combination with a person according to ANSI/ESD STM 97.2. and IEC Standard 61340-4-5. This test will evaluate the performance of the floor / footwear system. This test is of special importance when the floor / footwear system is used as a primary means for grounding personnel.

Product Video

Analysis Software

The WT5000 is supplied with easy to use analysis software, you can save, load, zoom, measure, print and export test results.  The WT5000 can display live tests measurements via a Windows PC and via the LEDs on the front panel of the instrument.

WT5000 Software





Specifications

  • Test range: ± 5000 volts
  • Accuracy: 5% of measured value
  • Input impedance: > 10^14 Ohm
  • Input capacity: < 5 pF
  • Response time: <= 10 ms
  • Display: Logarithmic LED-display ± 500 V, changeable to ± 5000 V with Peak Hold function
  • Output: Analog ±5V DC for each range
  • Power supply: Rechargeable batteries
  • Complies with IEC 61340-4-5

The Walking Test

The operator walks on the floor section in a six-step pattern and comes to rest with both feet on the floor specimen in front of the EFM meter. The step pattern requires forward and backward steps and a cross over step:walking test pattern for esd tests

Perform the test three times and the WT5000 will measure the results.  Save each test for recording purposed.

Supplied with:

WT5000 Electrometer, A/D-converter with software Digilloscope, rechargeable batteries, power supply, handheld electrode, connecting cables, conductive carrying case, user’s manual, calibration certificate



Request A Walking Test Floor Assessment

Contact Transforming Technologies today. You can also send us an email by filling out the request form below.
More Info
Add to cart

Add to quote

Warmbier METRISO® 3000 High Resistance Test Kit

wolfgang-warmbier-Metriso-3000-resistance-tester-web

Computer test kit for resistance measurement of most parts of an ESD protection plan.

The METRISO 3000 test kit measures a wide range of values: low resistance from 1KilaOhm to1.2 TeraOhm. The kit comes with two 5lb disc probes and has an integrated temperature and humidity gauge. Measuring voltage can be set between 10 – 500V and also be varied if desired.

All measured values can be stored in the instrument and, with the help of the included software transferred to PC via USB cable. With the software program readings can be handled, stored and measurement protocols can be printed.

METRISO 3000 can be supplemented with various probes; miniprobe (7220.840.SET) for control of e.g trays and conveyer lines, ringprobe (7220.880.SET) and handprobe for control of resistance to floors and shoes.

Features:

  • Test range: Low ohmic range: 1 to 10 kOhm
    High ohmic range: 1 KOhm to 1.2 TOhm
  • Store up to 50,000 test values and create reports with included software
  • Results displays on LCD screen
  • Comes with 5lb probe set and hand probe
  • Comes in conductive case with handle

Test Performed

  • Resistance-to-ground
  • Resistance-point-to-point
  • Resistance-to-groundable-point
  • Volume resistance (with optional metal plate)

Applications:

  • Evaluate packaging materials
  • Evaluate garments
  • Measure flooring, work surfaces and furniture resistance
  • Measure electrostatic fields
  • Analyze ionizers performance

More Info Add to cart

Add to quote

PDT800K Deluxe “Near -Fail” Combo Wrist Strap and Footwear Testing Station

pdt800k-esd-combo-test-station

Easy, accurate, and time-saving one-touch digital wrist strap and footwear tester with “Near-Fail” alert that tells you when you are nearing failing levels.

What makes the PDT 800K unique is the proactive “Near-Fail” Indicator that alerts the user that the ESD grounding device under test (wrist strap or heel grounder) is nearing failure levels and should be changed soon if not right away. The results are visible with the digital screen on the tester’s face. This helps prevents a worn device “passing” a test and failing in the field. This tester fully supports the “Compliance Verification Plan” requirements as stated in the ANSI ESD S20.20.Simultaneously and independently test both feet and a wrist strap while filtering out human body noise.

The PDT series provides you a state-of-the-art fast, safe, and extremely simple tool to fully meet your daily ESD checking need. It further assists you to effectively enhance the performance of the EPA control and administration.

“Near-Fail” Proactive Testing
The “Near-Fail” indicator is a function to give a warning when the measured resistance is in the PASS range but is within 10% (default) safe range of the high or low limit. Besides the PASS LED, the corresponding LED of the high or low limit will be turned on to warn the user that the wrist-strap or the footwear is “Near-Fail”. “Near-Fail” alert can be adjusted (increased or decreased) by Transforming Technologies – contact for more information.

Alarm Limit Adjustment:
The default upper and lower resistance limits fully meet the requirements of international standards such as ANSI/ESD S20.20-2007 or IEC61340-2007 – for wrist straps (35meg alarm) and for foot straps (100 Meg).  If you have an application that requires different test limits, the PDT series has dip switch controls.

Verification and Calibration

The PDT800K is factory calibrated and annual calibration is not necessary. Verification tools that simulate a functional and non-functional wrist straps/footwear are available to verify that the monitor is functional.  It is recommended to verify proper working order with the PDT78PV  periodic verification unit at least once per year.

Mounting Options

The PDT800K is a freestanding tester which includes the testing device, footplate and pedestal stand. The unit is also available as a wall mount unit and does not include the pedestal stand (p/n PDT800).

Turnstile/Barrier/Gate System:

The PDT series testers have a built in N/C  N/O switch used with doors or turnstiles where a positive test allows the person to move through. The relay has contact rating of 1A 30VDC maximum and with the center contact as COMMON contact and the left contact as NC(normally close) and the right contact as NO(normally open).  These are the inputs that are used to connect the device you want to trigger.

More Info
Add to cart

Add to quote

Model 300 Charge Plate Monitors to Test Ionizer Performance

300-charge-plate-monitor-monroe-electronics

The Model Number 300 charge plate monitor uses large, high-contrast, alpha/numeric LED displays for easy reading at any viewing angle, even in high ambient lighting conditions. Individual LED’s, provide additional operation status during testing and setup. Single-button operation of manual +decay, -decay and balance ensures simple, easy operation. Balance tests record ±peaks and average reading. Each test can be customized in setup for stop trip levels and test duration. An automated set of tests can be initiated with a single button depress.

Operation and setup can be done via a USB port and PC software in addition to the front panel buttons. Test results can also be retrieved for automatic or manual test.
Real time analysis of ionizers can be done via the analog output.
Features:

Measures, displays and stores last test data, including discharge times, peak offset voltages, and average offset voltage.
Easiest, most reliable way to check effectiveness of all ionization-type static control systems3
Meets Requirements of ANSI/ESD STM 3.1
Removable, cable-connected ion collecting plate probe permits precise positioning and remote monitoring
Separate time and voltage displays for
discharge time test
Recorder output for permanent records and unattended operation
One range measures from 0 to ±1kV

Dramatically demonstrates induced charges and human body potential

More Info
Add to cart

Add to quote

Model 288B Charge Plate Monitors to Test Ionizer Performance

288B-esd-ionizer-charge-plate-monitor

The Model 288B’s easy-to-use, self-contained
design simplfies ionizer audits: Testing your ionizers is as simple as pushing a button. Model 288B is the first Charged Plate Monitor to incorporate a microprocessor and data storage, eliminating the need for a dedicated computer. All test parameters are programmable allowing tests to be optimized and not dictated by equipment limitations.

Once programmed, the Model 288B will perform a
series of tests automatically: +/- decays, balance,
balance peaks, temperature, humidity, time/date are
stored and may be reviewed via the display or downloaded to a PC. The PC software (included) permits the user to define and name ionizer locations, test setups and sequences, then upload these to the CPM. All of these features result in a flexible, easy to use instrument that facilitates audits while inimizing errors.
Features:

Innovative non-contacting electrometer
provides tests to unprecedeted low
voltage with unmatched stability
Fully configurable operating parameters
Soft keys for highly intuitive programming
Manual and automated testing of Decay
and Balance
Internal storage for up to 1500 tests, 500
locations and 4 test protocols
Internal battery for portable operation
(also line operated)
Large, easy to read, high contrast LCD
display
Detachable 6” x 6” plate
(Optional plate 1” X 1” plate available)
RS232 interface
Built in temperature and humidity
sensors
Auto-ranging to 0.1V resolution below
100V
Compatible with new 288B Graphing
Software

More Info
Add to cart

Add to quote

Model 287A Charge Plate Monitors to Test Ionizer Performance

287-esd-ionizer-performance-analyzer

The Model 287A is a low-cost and highly portable alternative to a charged-plate monitor for periodic verification of ionzer performance. It permits ionizer testing at the work location without the need to remove the ionizer from service for testing.
Model 287A performs manual or automatic decay and balance tests for periodic verification of ionization equipment. It then stores the results and averaged decay times for up to ten manual tests and up to ten complete automatic test sequences.Temperature and relative humidity are displayed real-time and recorded with the test data.
All instrument functions are controlled by four
push buttons.
In DECAY mode a built-in high voltage generator charges the plate to over 1050 volts. During testing the plate will discharge toward zero in the presence of ionization. The elapsed time of decay between 1000 volts and 100 volts is displayed.
In the BALANCE mode, isolated plate voltage,
test duration and + and – peak voltages are
displayed. Self-tests include battery check and tests for functional errors.
Features:

All-in-One Instrument – Measures, displays and stores voltage, decay time, temperature and humidity
Exceeds current requirements of ESD Assn. SP3.3 for Periodic Verification of Air Ionizers
Test Balance and Decay
Low Cost / Performance Ratio
Hand-held, Battery Operated
Microprocessor Driven
Built -in Self Test
Exclusive Monroe Electronics Two year Warranty

More Info
Add to cart

Add to quote

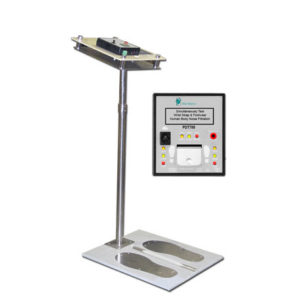

PDT700K – Near -Fail” Combination Wrist Strap and Footear Testing Station

pdt700-esd-combination-esd-tester

Easy, accurate, and time-saving one-touch digital wrist strap and footwear tester with “Near-Fail” alert that tells you when you are nearing failing levels.

What makes the PDT 700K unique is the proactive “Near-Fail” Indicator that alerts the user that the ESD grounding device under test (wrist strap or heel grounder) is nearing failure levels and should be changed soon if not right away. This helps prevents a worn device “passing” a test and failing in the field. This tester fully supports the “Compliance Verification Plan” requirements as stated in the ANSI ESD S20.20.Simultaneously and independently test both feet and a wrist strap while filtering out human body noise.

The PDT series provides you a state-of-the-art fast, safe, and extremely simple tool to fully meet your daily ESD checking need. It further assists you to effectively enhance the performance of the EPA control and administration.

“Near-Fail” Proactive Testing
The “Near-Fail” indicator is a function to give a warning when the measured resistance is in the PASS range but is within 10% (default) safe range of the high or low limit. Besides the PASS LED, the corresponding LED of the high or low limit will be turned on to warn the user that the wrist-strap or the footwear is “Near-Fail”. “Near-Fail” alert can be adjusted (increased or decreased) by Transforming Technologies – contact for more information.

Alarm Limit Adjustment:
The default upper and lower resistance limits fully meet the requirements of international standards such as ANSI/ESD S20.20-2007 or IEC61340-2007 – for wrist straps (35meg alarm) and for foot straps (100 Meg).  If you have an application that requires different test limits, the PDT series has dip switch controls.

Verification and Calibration

The PDT700K is factory calibrated and annual calibration is not necessary. Verification tools that simulate a functional and non-functional wrist straps/footwear are available to verify that the monitor is functional.  It is recommended to verify proper working order with the PDT78PV  periodic verification unit at least once per year.

Mounting Options

The PDT700K is a freestanding tester which includes the testing device, footplate and pedestal stand. The unit is also available as a wall mount unit and does not include the pedestal stand (p/n PDT700).

Turnstile/Barrier/Gate System:

The PDT series testers have a built in N/C  N/O switch used with doors or turnstiles where a positive test allows the person to move through. The relay has contact rating of 1A 30VDC maximum and with the center contact as COMMON contact and the left contact as NC(normally close) and the right contact as NO(normally open).  These are the inputs that are used to connect the device you want to trigger.

More Info
Add to cart

Add to quote

RangerONE Dual Wire Constant Monitor – Model CM1601

CM1601-resistance-ranger-dual-wire-constant-monitor

Dependable and accurate dual wire monitor for one person.

The RangerOne is an extremely sensitive monitor that accurately measures the electrical resistance of an ESD wrist band and signals if the device fail. The Resistance Ranger Series is the most reliable workstation monitoring system available.

The extremely sensitive monitors accurately measure the electrical resistance of an ESD wrist band and work surface and signals if the devices fail. Audible and visible alarms are triggered if the operator’s resistance exceeds 35 meg ohm. The Ranger Series saves time by eliminating the time-consuming testing of wrist straps and coil cords.

Accessories

CyclopsTM Operator Presence Check
The Cyclops is an infrared sensor that causes the monitor to alarm when an operator approaches the workstation without connecting their wrist strap. The alarm continues until compliance is achieved.  Part number:  CMREMOTE-IR

 Wrist Strap Parking Station
Provides a jack that will allow an operator to disconnect and leave the dual conductor cord at the workstation without the wrist strap monitoring system alarm sounding. For use with mono plug coil cords. Part number: CP3000

Operator Presence Check

The RangerONE can be outfitted with the Cyclops Remote Sensor that detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items

Calibration

The  RangerONE is factory calibrated and does not require annual re-calibration.  It is recommended to verify calibration with the CM2015PV periodic verification meter at least once a year.  Download the RangerONEcalibration statement for your compliance program.

Superior Technology
Resistance based monitoring is the only true wrist strap monitoring technology available. Single wire systems simply detect that a person is wearing a wrist strap and put the monitor into an unalarmed state. Resistance monitors actually measure the resistance of the wrist strap in combination with the person and alarm if the product exceeds preset levels. This accurate measurement ensures reliability.

More Info Add to cart

Add to quote

RangerTWO Dual Wire Constant Monitor – Model CM1602

CM1602-resistance-ranger-dual-wire-constant-monitor

Dependable and accurate dual wire monitor for one person and one work surface.

The Resistance Ranger Series is the most reliable workstation monitoring system available. The extremely sensitive monitors accurately measure the electrical resistance of an ESD wrist band and work surface and signals if the devices fail.

The RangerTWO is an extremely sensitive and reliable ground monitoring instrument. Audible and visible alarms are triggered if the operator’s resistance exceeds 35 megohm. Low resistance of 1.8 megohm also triggers an alarm event. Mat alarm limits are set at 100 meg ohm.

Accessories

CyclopsTM Operator Presence Check
The Cyclops is an infrared sensor that causes the monitor to alarm when an operator approaches the workstation without connecting their wrist strap. The alarm continues until compliance is achieved.  Part number:  CMREMOTE-IR

 Wrist Strap Parking Station
Provides a jack that will allow an operator to disconnect and leave the dual conductor cord at the workstation without the wrist strap monitoring system alarm sounding. For use with mono plug coil cords. Part number: CP3000

Operator Presence Check

The RangerTWO can be outfitted with the Cyclops Remote Sensor that detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items

Calibration

The  RangerTWO is factory calibrated and does not require annual re-calibration.  It is recommended to verify calibration with the CM2015PV periodic verification meter at least once a year.  Download the RangerTWO calibration statement for your compliance program.

Superior Technology
Resistance based monitoring is the only true wrist strap monitoring technology available. Single wire systems simply detect that a person is wearing a wrist strap and put the monitor into an unalarmed state. Resistance monitors actually measure the resistance of the wrist strap in combination with the person and alarm if the product exceeds preset levels. This accurate measurement ensures reliability.

More Info Add to cart

Add to quote

RangerPRO Dual Wire Constant Monitor – CM1600

cm1600-dual-conductor-constant-monitor

Versatile, Dependable, and Accurate Resistance Based Constant Monitor System

The RangerPRO constant monitor is the premiere work station grounding system available. A continuous pulse of an ultra-low voltage signal measures the electrical resistance of two wrist bands, two work surfaces, and two auxiliary grounds simultaneously and alarms if there is a problem.

The RangerPRO is an extremely sensitive and reliable ground monitoring instrument. Audible and visible alarms are triggered if the operator’s resistance exceeds 35 megohm . Low resistance can also triggers an alarm event. Mat alarm limits are set at 100 meg ohm. The CM1600 packaged in a stainless steel case with two wrist strap jacks.

The RangerPRO saves time by eliminating the time-consuming testing of grounding products. The system uses special dual wire wrist band sets that contain two independent elements which provide fail-safe protection. The series includes both fabric and metal wrist bands paired with cords in either 5, 10, or 20 feet lengths.
Meets or exceeds requirements of ANSI ESD-S20.20 and ESDA Standard 1.1-2006

Operator Presence Check

The RangerPRO can be outfitted with the Cyclops Remote Sensor that detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items.

Alarm Signals

The RangerPRO works with light towers, sirens, and other devices to enhance the signal of a failure. Pair the unit with the CM-RELAY to integrate with a signal (check with the manufacturer of your signal for compatibility.)

Calibration

The RangerPRO is factory calibrated and does not require annual re-calibration.  It is recommended to verify calibration with the CM2015PV periodic verification meter at least once a year.  Download the RangerTWO calibration statement for your compliance program.

More Info Add to cart

Add to quote

RangerNET Dual Wire Constant Monitor – Model CM2815

Resistance RangerBOSS Constant Monitor

A network read dual wire constant monitor for two people and two work surfaces with data logging capabilities

Transforming Technologies’ RangerNET constant monitor is the premiere work station grounding system available. A continuous pulse of an ultra-low voltage signal measures the electrical resistance of two wrist bands, two work surfaces, and two auxiliary grounds simultaneously and alarms if there is a problem.

The RangerNET is an extremely sensitive and reliable ground monitoring instrument. Audible and visible alarms are triggered if the operator’s resistance exceeds 35 megohm (factory default). Low resistance can also triggers an alarm event. Mat alarm limits are set at 100 meg ohm. The CM2815 packaged in a stainless steel case with remote jacks.

The RangerNET saves time by eliminating the time-consuming testing of grounding products. The system uses special dual wire wrist band sets that contain two independent elements which provide fail-safe protection. The series includes both fabric and metal wrist bands paired with cords in either 5, 10, or 20 feet lengths.

Meets or exceeds requirements of ANSI ESD-S20.20 and ESDA Standard 1.1-2006

Boss-See Monitoring System

The RangerNET can be integrated into a network with the Boss-See software for status monitoring and data collection.

Accessories

Operator Presence Check

The RangerNET can be outfitted with the Cyclops Remote Sensor that detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items. Part Number: CM-REMOTE-IR

Digital Display
CM2800-D is a digital display device to be used with the Ranger monitors. It shows the real-time values that the constant monitors measures so that the users can observe and document the accurate measurements of the monitoring status.

 Wrist Strap Parking Station
Provides a jack that will allow an operator to disconnect and leave the dual conductor cord at the workstation without the wrist strap monitoring system alarm sounding. For use with mono plug coil cords. Part number: CP3000



Calibration

The  RangerNET is factory calibrated and does not require annual re-calibration.  It is recommended to verify calibration with the CM2015PV periodic verification meter at least once a year.  Download the RangerNET calibration statement for your compliance program.

Superior Resistance Technology
Resistance based monitoring is the only true wrist strap monitoring technology available. Single wire systems simply detect that a person is wearing a wrist strap and put the monitor into an unalarmed state. Resistance monitors actually measure the resistance of the wrist strap in combination with the person and alarm if the product exceeds preset levels. This accurate measurement ensures reliability.



More Info Add to cart

Add to quote

Warmbier PGT120.COM Combination Tester With Data Collection

wolfgang-warmbier-pgt120-combo-tester

A complete test station for ESD footwear and wrist straps with data collection

The PGT120.COM personnel grounding tester takes quick and accurate resistance measurements of the ESD grounding products with the ability to integrate with a computer to store test data. Access to this information is valuable to your quality program.

The unit operates with 3 independent measuring circuits for the left shoe, the right shoe and the wrist strap. The shoes can even be measured in a hands free mode which means that the staff members are tested automatically when standing on the plate. PGT120.COM can be connected to an automatic door opening system which allows entry with only passing results.

The PGT120.COM is supplied complete with footwear testing electrode, flexible cord, transformer with power cord and calibration protocol. Recommended calibration interval is 24 month Corresponding wall mounting plate, and electrode anti-fatigue mat is sold separately.

Data Collection

Pair the unit with the PGT120.COM Data Terminal and you receive real-time ESD testing with personnel identification, access control and central data maintenance. Also connect to a number of accessories such as a label printer, bar code scanner, RFID, database server and much more.

  • Ready to integrate into existing infrastructure
  • Multiple PGT120.COM stations can be networked
  • Existing identity cards or time attendance cards can be re-used
  • Open database interface
  • Measurement data is ready to process after a few seconds
  • Various databases can be used
  •  Combination with existing access systems is possible
  • Secure network communication

The following data is recorded in ASCII format:

  • Value Footwear in Series: Value in kOhm
  • Value Wrist Strap System: Value in kOhm
  • Value of Left Foot: Value in kOhm
  • Value of Right Foot: Value in kOhm
  • Test OK: OK
  • Test Failed: Error no.

Product Videos

PGT120 Hands-Free Testing

PGT120 With Turnstyle

More Info
Add to cart

Add to quote

RangerBOSS Dual Wire Constant Monitor – Model CM2800

Resistance RangerBOSS Constant Monitor

A network ready dual wire constant monitor for two people and two work surfaces with adjustable alarm limits, and data logging capabilities.

The RangerBOSS dual conductor workstation monitor provides complete ESD protection to two operators by monitoring both resistance and voltage independently using dual conductor wrist strap. It also monitors ESD mat ground and low resistance of tool chassis’ ground simultaneously. Utilizing ultra-low voltage, resistive loop technology, the CM2800 is an extremely sensitive and reliable ground monitoring unit for use in highly critical areas.

The RangerBOSS’s alarm limits are user programable via the optional PC software CM2800-SEE. Operator Resistance, Operator Voltage, Work Surface Resistance, and Resistance of Equipment alarms can be enabled/disabled and limits selectable to user specifications.
The RangerBOSS is network ready and can easily be connected to other workstation monitors and a computer using the high speed network router, CM2800-H. The host computer can be transformed into a command center with the software CM2800-BOSS SEE, a central monitoring program that shows real time grounding results and al-lows for adjustment of alarm parameters of up to 4096 workstations. An entire assembly line’s ESD protection can be remotely monitored and adjusted with one computer.
Proactive Key Functions:

Wrist-strap Alarm: High Limit: 8M? ~ 35M? (35m default); Low Limit: 750K? ~ 2.4M?
Operator Voltage Alarm: ±1V ~ ±5V
Mat Alarm: 1M? ~ 140M?
Tool Alarm: 2? ~ 20?
Via CM-2800-D, provide digital display on LCD. Also provide 4-20 mA or 0 – 5V analog outputs and external interfaces for siren and tool controls
Applications:

Hard drive manufacturing / GMR head testing / Electronics assembly / Aerospace / Military / Semiconductor Fabrication / Any static sensitive assembly and test environment

More Info
Add to cart

Add to quote

Warmbier PGT120 Combination Tester for Personal Grounding Equiptment

wolfgang-warmbier-pgt120-combo-tester

The PGT120 is an easy to use and complete test station for ESD shoes and wrist straps.

The personnel grounding tester is able to perform a quick and accurate control measurement of the ESD protection. The test results are indicated both with audible and visual signals. The PGT120 measures the left and right shoe separately.

The shoes can even be measured in a hands-free mode which means that the staff members are tested automatically when standing on the foot plate. PGT 120 can be connected to an automatic door opening system.

Hands-Free Testing Video

100volt Test Circuit
The PGT120 uses a 100volt test circuit (by default) which is the same voltage used for qualification tests. Using 100 volts allows the PGT120 to test all materials consistently. DIP switches on the PGT120 can adjust the voltage to either 30V or 50V.

The PGT 120 is supplied complete with footwear electrode, flexible cord, transformer with power cord.

Accessories

Periodic Verification Unit
The PGT120 is factory calibrated and comes complete with a NIST traceable certificate. Calibration can be verified with the PGT120.CU. Recommended calibration verification interval is 24-months.

Foot Plate Mat
The footwear testing plate can fit inside an anti-fatigue mat with high visibility yellow borders (7100.PGT120.SM).

Walk Mounting Plate
The wall mounting plate is sold separately: (7100.PGT100.101).



More Info
Add to cart

Add to quote
